Soliom S60 User Manual

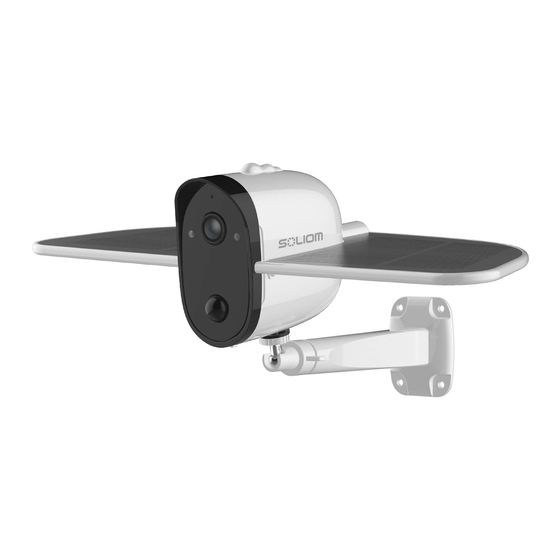

Outdoor wireless solar camera
Hide thumbs Also See for S60:
Table of Contents

Advertisement

Quick Links

Download this manual
R
Outdoor Wireless Solar Camera
Model: S60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S60 and is the answer not in the manual?

Questions and answers

Related Manuals for Soliom S60

Summary of Contents for Soliom S60

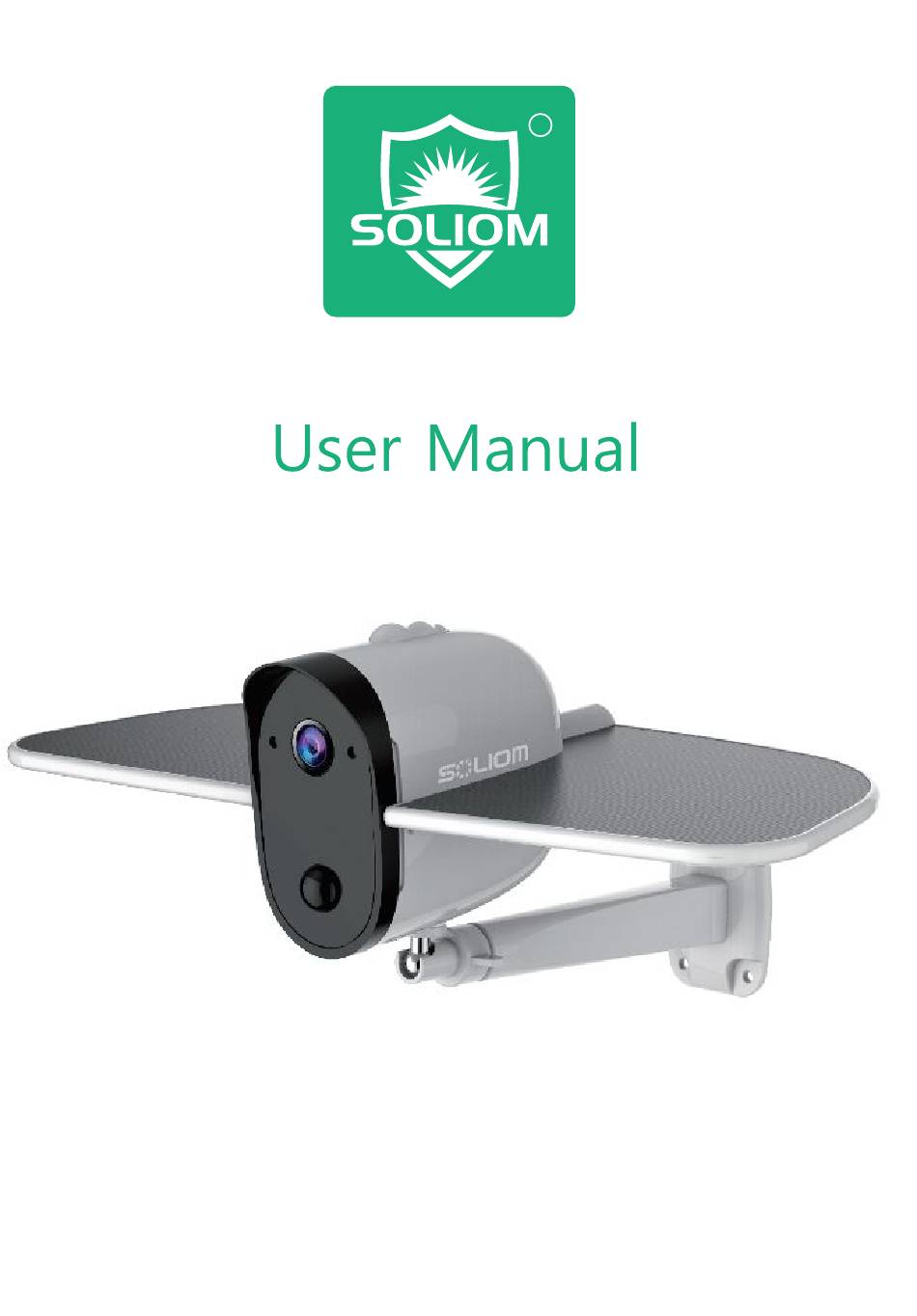

  • Page 1 Outdoor Wireless Solar Camera Model: S60...

  • Page 2: Warranty Service

    Thanks for purchasing from Soliom. Having issues with your Soliom cameras? Please contact us through either ways below. Soliom care team staffs would offer you a best solution to solve any problems within 24 hours Register via below link to get 2 Years Extended Warranty https://soliom.net/pages/product-registration...
  • Page 3 5-14 15-18 19-26 Part 5: How to Save and Delete Videos....27 Part 6: More Settings..............28...

  • Page 4: Very Important Tips

    Very Important Tips 1. Soliom camera can only be set up with 2.4g Wi-Fi network. (It's ok to use Cell phone 4G data to live viewing it after the camera was set up with 2.4g Wi-Fi network firstly.) 2. You may possibly need a Wi-Fi extender if your Wi-Fi signal is weak around the yard where you want to install it.
  • Page 5 Solar Panel Bracket Silica gel cover Power Button...

  • Page 6: Before Installation

    Before Installation Charging Your Camera Please charge the camera about 6-8 hours by plugging it into a power source using the provided USB cable. After connecting the camera with App, the App will indicate the battery status. (There's no indicator to show charging status from the camera) Note: When the camera was run out of battery, you need to charge the camera by USB cable first and turn on the camera...

  • Page 7: Package Content

    Before Installation Package Content Camera 1 x Bracket 3 x Expansion Screws 1 x Reset Pin 2 x Extra Machine 1 x USB Cable Screws Outdoor Wireless Solar Camera Model: S70 1 x User Manual...
  • Page 8 Google Play store or App store to download the soliom+ App. 1. Allow"SOLIOM+" use mobile cellular data and wireless LAN, otherwise it may be failed to add S60 camera. 2. Allow "SOLIOM+" to get system push message and location permissions...
  • Page 9 (1)Please set a password for your account and make note to remember it. (2)Please click "Allow" or "Agree" on all access when you download soliom+ and during the process of setting up your account so that the soliom+ can have full access to your camera and phone.
  • Page 10 In-App Setup 4. Connect your phone to 2.4Ghz wifi first. Soliom camera can only be paired up with 2.4g Wi-Fi network. (It's ok to use Cell phone 4G data to live viewing it after the camera was Paired up with 2.4g Wi-Fi network firstly.) 5.
  • Page 11 Otherwise please check your wi-fi list from your devices and you have to turn on the location services for the Soliom+.
  • Page 12 Click the icon to double confirm the password you entered correct Method 1: QR code configuration 1.1 Click the “QR code configuration”, hold the QR code in front of the S60 camera, and then you will hear the following voice “Pairing Information Received”.
  • Page 13 In-App Setup Method 2: Sound wave configuration 2.1 Enter into the “search device” page, make sure to turn up you phone’s volume to the Maximum, you will hear the following voice : “Pairing Information Received”. 3) You have connected the device to the App successfully. Choose a name of the devices from the drop-down choice, or you can modify one that you want, and then select the area where device is located.(you have to choose one or...
  • Page 14 In-App Setup Congratulations! You have connected your camera to the App successfully, now you can live view the camera on your phone anytime and anywhere. If you're unable to pair the camera,Please check below suggestions: 1. Please reset the camera to default after you fully charged the camera.
  • Page 15 In-App Setup 7.How to Share Your Camera with More Users When you can use your camera properly.You can start to share your camera to your friends or family members. click“ ”and choose "share permissions". input the account that you want to share with.
  • Page 16 In-App Setup 8.How to unbind your camera Please do not forget to unbind your camera from your App when you plan to return the camera, to avoid any personal information disclosure risk. And unbind your camera as following steps, click" "...
  • Page 17 The video clips will be saved in the Cloud. Cloud video length is 10 seconds defaulted and free for 30 days. And you have to pay for the service per month or other cloud service. You can choose a service from the soliom+ provided to purchase.

  • Page 18: Physical Installation

    Physical Installation Check your camera signal strength If not satisfied with video smoothness, Check in App and signal strength in App is not strong, we would suggest adding wifi extender between the Router and the camera. Camera WiFi extender Router Recommended height to install the camera We suggest installing the camera about 8ft.
  • Page 19 Physical Installation Adjust the bracket on the wall and then mark 3 holes for mounting. Fix the bracket to the wall by expansion screws. Adjustable （Option for indoor use)

  • Page 20: Technical Specifications

    Technical Specifications Image Quality Resolution 1080P Specifications Lens angle FOV 160° Lens H.264 Video format Frames per Video 15fps second Specifications SD card 8GB-Max 64GB support Built-in speaker Output Audio Intput Built-in microphone Communications 2.4GHz WiFi Battery capacity 4000mAh Standby time Max 6 months Battery Power...

  • Page 21: Led Status

    Technical Specifications System Android 2.3 above/ iOS 7.0 above Suppport PIR angle 110° PIR range 13ft-15ft Range Up to 32ft Night Vision Continuously daytime Max 12 hours recording time Working time for Continuously night vision fully charged Max 8 hours recording time Waterproof IP grade...
  • Page 22 Detailed App Instructions 1.click ,you could live viewing videos. 2019-12-27 15:00:36 2019-12-27 15:00:36 2019-12-27 15:00:36 Online Online Online...
  • Page 23 Tips: Please make sure your camera and then reinstall it to the camera body. Or has a full bar of wifi strength to contact Soliom support team for a replacement ensure a smooth live view speed. at care@soliom.net All friendly customer (A wifi extender is recommended service staffs are ready to assist you.
  • Page 24 Detailed App Instructions Setting: Click to enter into device settings. ( Check page 22-26 for more details) 2019-12-27 15:00:36 Online Click the icon to switch to full screen play Cloud storage: Click to playback videos saved in cloud storage. Manual Recording: Click to manually record and the videos will be saved to your phone's Album...
  • Page 25 Detailed App Instructions SD Card Setting 1) Please turn on the cloud storage so that you can sync the camera time with your phone. 2019-12-27 15:00:36 Online Image flip You can choose Normal Rotate, Mirror or Mirror and rotate depends on your hardware installation way. The default is Normal.
  • Page 26 Detailed App Instructions Scene mode You can choose to set it as Normal, back light compensation, night IR, High light compensation or Dynamic according to your actual light environment of installation place. 2019-12-27 15:00:36 Online PIR Detection Sensitivity You can set the PIR sensitivity as Disabled, Low, Medium or High.
  • Page 27 Detailed App Instructions 2019-12-27 15:00:36 Online Active time 1) This is the time you could set for the video length recorded to micro sd card. 2) Always: If you choose this option,you will not allow the camera enter into standby mode,the camera will keep recording all the time until battery drains out.
  • Page 28 Detailed App Instructions LED indicator When you choose Enable, the Blue LED will light up to indicate when you operate the camera as it should be. When you choose Disabled, the Blue LED will not light up to indicate the operations or trigger motions.
  • Page 29 Detailed App Instructions Device Name You can set a desired name for your camera. 2019-12-27 15:00:36 Online...
  • Page 30 How to save and delete videos 1. Videos can be saved in Cloud Storage: (1). The videos of PIR activity You could save the videos of PIR activities in cloud storage, which can be used 30 days for free and then you have to pay for the services.

  • Page 31: More Settings

    More Settings Common Settings Click the common setting, you can choose the resolution to SD(720P) or HD(1080P) by clicking ”Default resolution”. You can turn on/off the notification alarm ring tone and vibration for Andriod devices, this is not workable for iOS devices currently. 2019-12-27 15:00:36 Online Frequently Asked Questions...
  • Page 32 Customer Care Email: care@soliom.net www.soliom.net www.facebook.com/soliomcam...
