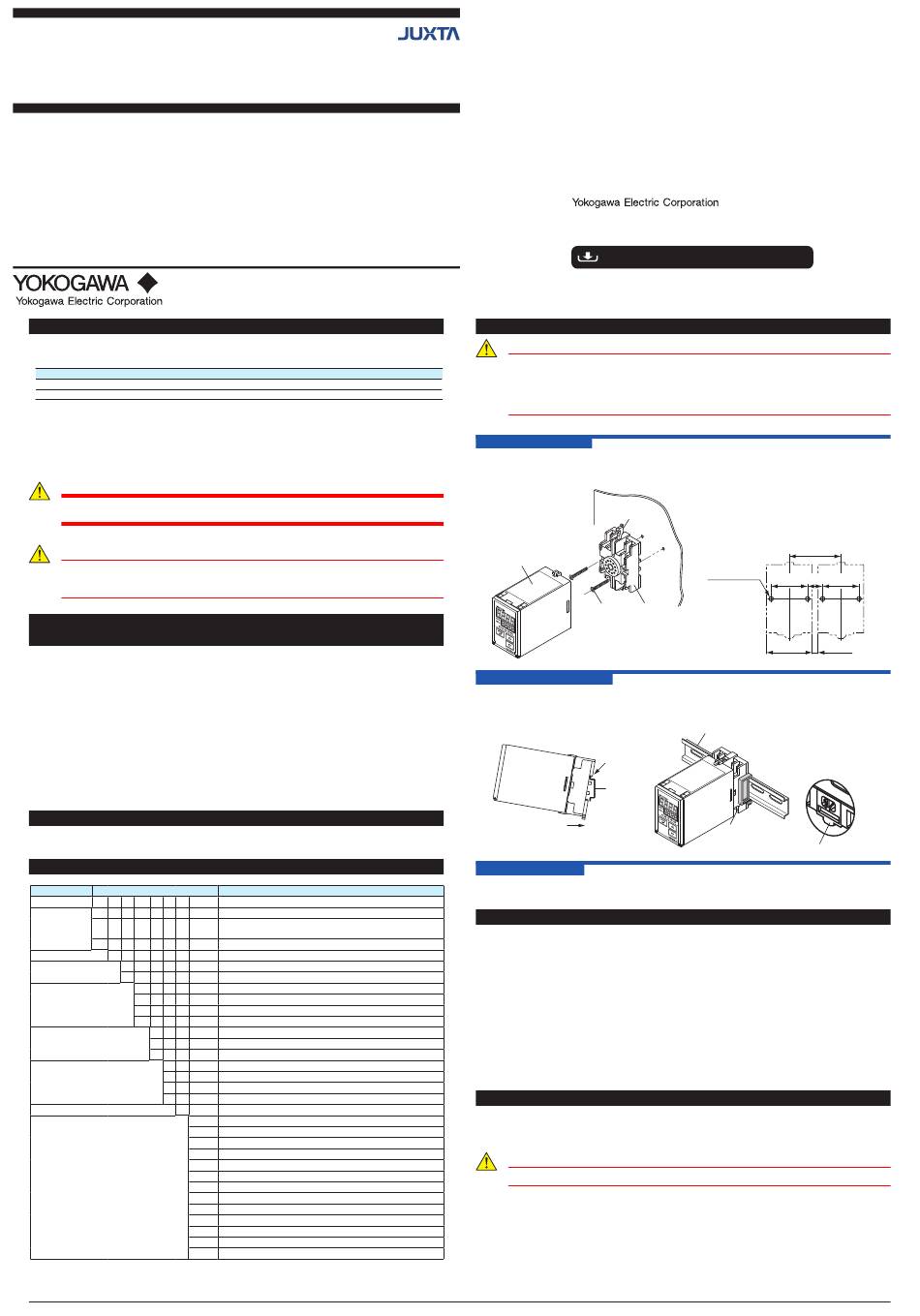

YOKOGAWA JUXTA MVHK Manual

User's
Model MVHK
Limit Alarm for DC Input
Manual
(with Active Color PV Display)
Please read through this User's Manual before use for correct handling. Please keep this User's
Manual for future reference.
QR code
The product may have a QR Code pasted for efficient plant maintenance work and asset information
management. It enables confirming the specifications of purchased products and user's manuals.
For more details, please refer to the following URL.
https://www.yokogawa.com/qr-code
* QR Code is a registered trademark of DENSO WAVE INCORPORATED.
CAUTIONARY NOTES FOR SAFE USE OF THE PRODUCT
This User's Manual should be carefully read before installing and operating the product. Please keep
this User's Manual for future reference.
The related manuals and general specifications are shown in the table below.
Doc. Name
Model MVHK Limit Alarm for DC Input (Userʼs Manual)
Model MVHK Limit Alarm for DC Input (General Specifications)
User's manuals in the above table are essential parts of the product; keep it in a safe place for future
reference.
This manual is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance of the equipment.
• Personnel responsible for normal daily operation of the equipment.
The following symbol is used on the product and in this manual to ensure safe usage.
WARNING
Calls attention to actions or conditions that could cause serious or fatal injury to the
user, and indicates precautions that should be taken to prevent such occurrences.
The following symbols are used only in this manual.
CAUTION
Calls attention to actions or conditions that could cause injury to the user or damage
to the instrument or property and indicates precautions that should be taken to prevent
such occurrences.
CHECKING THE PRODUCT SPECIFICATIONS AND THE CONTENTS
OF THE PACKAGE
(1) Checking the Model and Product Specifications
Check that the model and specifications indicated on the nameplate attached to the side face
of the main unit are as ordered. (In checking the model and suffix codes, refer to the main
specifications listed on the last page of this manual.)
(2) Packaged Items
Check that the package contains the following items.
• MVHK: 1
• Tag number label: 1 sheet
• Range label: 1 sheet
• Spacer: 1 (used for DIN rail mounting)
• Receiving resistor: 1 (supplied when the input signal code "A," optional specification code
"/R100" or "/R250" is specified)
• Monitor output terminal connector: 1 (supplied when monitor output code 6, A, P is specified)
• User's manual (this manual: IM 77J04H31-01E): 1
GENERAL
This plug-in type Limit Alarm for DC input receives DC current or DC voltage signal. It is equipped
with Active color PV display (PV display color changing function).
MODEL AND SUFFIX CODES
Model Suffix codes
MVHK -[] 0 [] -[] [] [] 0 /[][]
-0
Type -1
-2
0
3
Power Supply
6
-6
-A
Input Signal
-U
-Z
1
Output Signal 2
3
6
A
Monitor Output
P
N
0
Optional Specification
4th Edition Oct. 2019 (YK)
Doc. Number
IM 77J04H31-01E (This manual)
GS 77J04H31-01E
Description
Limit Alarm for DC Input
General use type
JK12 type (The terminal assignment is same as that of
Yokogawa's JK12 and MHKW.)
Fail output type
Always 0
24 V DC±10%
100-240 V AC/DC (Operating range: 85 to 264 V)
1 to 5 V DC
4 to 20 mA DC (with 250 Ω receiving resistor)
DC voltage or DC current signal
Custom order
Alarm output (transfer contact [1a1b] ), 2 points
Alarm output (NO contact), 4 points
Alarm output 2points, Fail output 1point
1 to 5 V DC
4 to 20 mA DC
Communication function (RS-485)
No monitor output
Always 0
/SN No socket (with socket if not specified)
/R100 With 100 Ω receiving resistor
/R250 With 250 Ω receiving resistor
/C0 Coating
/FB Fuse bypass
/F1 Alarm 1: NO, Alarm 2: NO, Fail output: NO
/F2
Alarm 1: NC, Alarm 2: NO, Fail output: NO
/F3 Alarm 1: NO, Alarm 2: NC, Fail output: NO
/F4 Alarm 1: NC, Alarm 2: NC, Fail output: NO
/F5 Alarm 1: NO, Alarm 2: NO, Fail output: NC
/F6 Alarm 1: NC, Alarm 2: NO, Fail output: NC
/F7
Alarm 1: NO, Alarm 2: NC, Fail output: NC
/F8 Alarm 1: NC, Alarm 2: NC, Fail output: NC
IM 77J04H31-01E
1. MOUNTING METHODS
CAUTION
● Plug/disconnect the main unit into/from the socket vertically to the socket face.
Otherwise the terminals may bend and it may cause bad contact.
● The converter shall not tilt 5 degrees or more in either direction when installed.
● When the converter is not connected to the socket, it is necessary to protect the
socket against ingress of dust to the connector part.
1.1 Wall Mounting
Unfasten the upper and lower stoppers to disconnect the main unit from the socket. Next, anchor the
socket onto the wall with two M4 screws. Then plug the main unit into the socket and secure the main
unit with the upper and lower stoppers.
Main unit
1.2 DIN Rail Mounting
Locate the MVHK so that the DIN rail fits into the upper part of the DIN-rail groove at the rear of the socket,
and fasten the socket using the slide lock at the lower part of the socket. For side-by-side mounting, attach
the spacer supplied with the product to the DIN rail to provide spacing between the products.
Push
1.3 Using a Duct
When using a wiring duct, install the duct at least 30 mm away from the top and bottom faces of the
main unit.
2. INSTALLATION LOCATIONS
• Avoid the following environments for installation locations:
Areas with vibrations, corrosive gases, dust, water, oil, solvents, direct sunlight, radiation, a strong
electric field, and/or a strong magnetic field, direct radiant heat, wind, temperature fluctuation,
2000 m or more above sea level.
• If there is any risk of a surge being induced into the power line and/or signal lines due to lightning
or other factors, a dedicated lightning arrester should be used as protection for both this unit and
a field-installed device.
• Operating temperature/humidity range: 0 to 50°C (0 to 40 °C for multiple mounting)/5 to 90%RH
(no condensation)
• Continuous vibration *: (at 5 to 9 Hz) Half amplitude of 3 mm or less (at 9 to 150 Hz) 9.8m/s
less, 1 oct/min for 90 minutes each in the three axis directions
• Impact *: 98 m/s
• Install in a place where rigidity is secured.
*: Type code 2 is an environment without vibration and impact.
3. TRANSPORT AND STORAGE CONDITIONS
• Temperature: -25 to 70°C
• Temperature change rate: 20°C per hour or less
• Humidity: 5 to 95% RH (no condensation)
CAUTION
Keep this product in a conductive bag when plugged out, during transport or storage.
1
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179 Facsimile: +81-422-52-6793
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/juxta/im/
Stopper
• Mounting Dimensions
2-ø4.5 or 2-M4
Mounting
Socket
screw
Note:
• For side-by-side mounting, provide spacing of 5 mm or
more between the products.
• For DIN rail mounting, use the supplied spacer to
provide spacing of 5 mm between the products.
DIN rail
Fit into here
DIN rail
Spacer
or less, 11 ms, 3 axes, 6 directions, 3 times each
2
Unit: mm
Pitch: 56 or more
40±0.2 (16) 40±0.2
(51) (5 or more)
(Rear of the socket)
Slide lock
or
2
