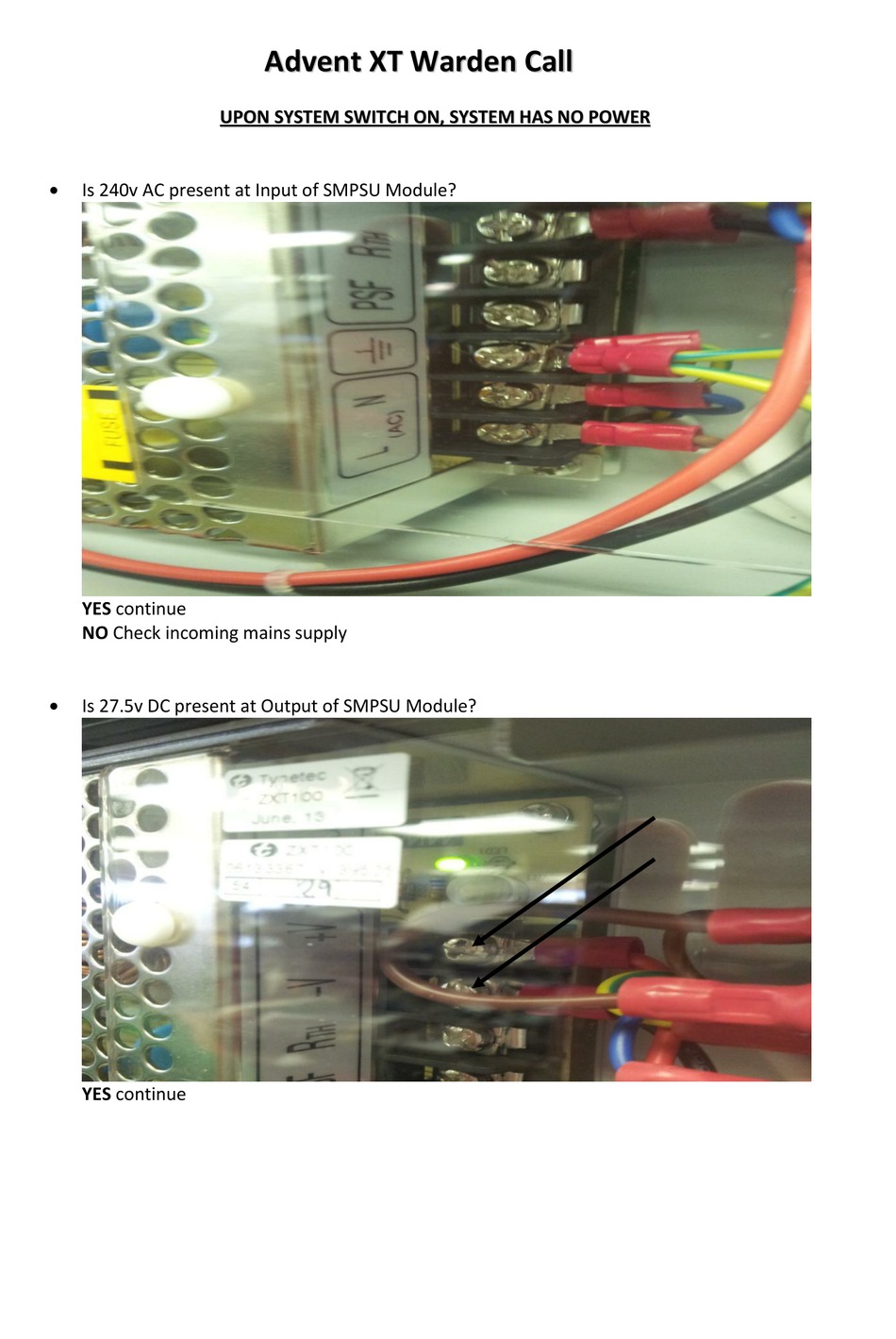

Is 240v AC present at Input of SMPSU Module?
YES continue
NO Check incoming mains supply
Is 27.5v DC present at Output of SMPSU Module?
YES continue
