RP-VC111T/RP-VC112T Ethernet Extender

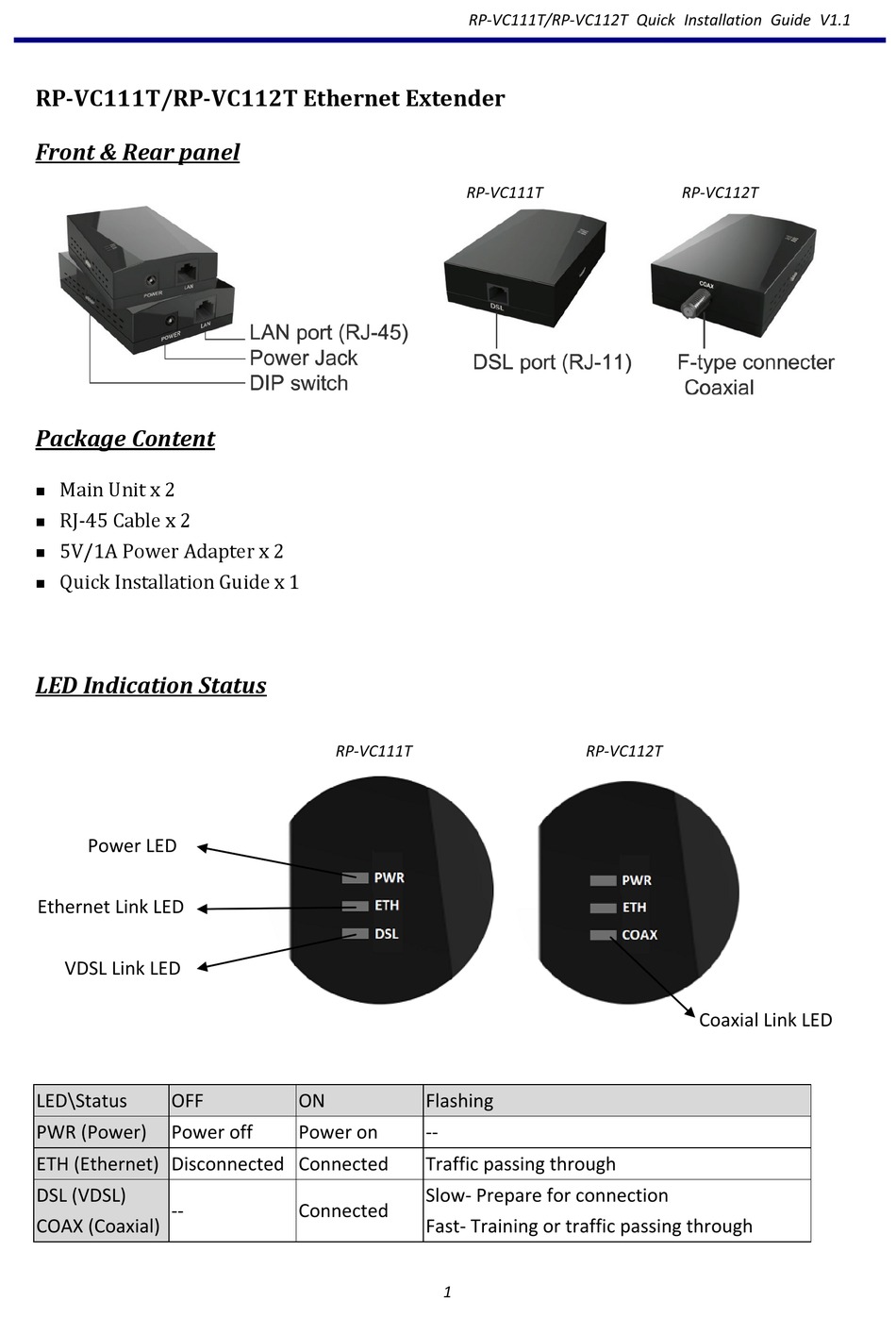

Front & Rear panel
Package Content
Main Unit x 2
RJ-45 Cable x 2
5V/1A Power Adapter x 2
Quick Installation Guide x 1
LED Indication Status
Power LED
Ethernet Link LED
VDSL Link LED
LED\Status
OFF
PWR (Power)
Power off
ETH (Ethernet) Disconnected Connected
DSL (VDSL)
--
COAX (Coaxial)
RP-VC111T
RP-VC111T
ON
Flashing
Power on
--
Traffic passing through
Slow- Prepare for connection
Connected
Fast- Training or traffic passing through
1
RP-VC111T/RP-VC112T Quick Installation Guide V1.1
RP-VC112T
RP-VC112T
Coaxial Link LED
1
