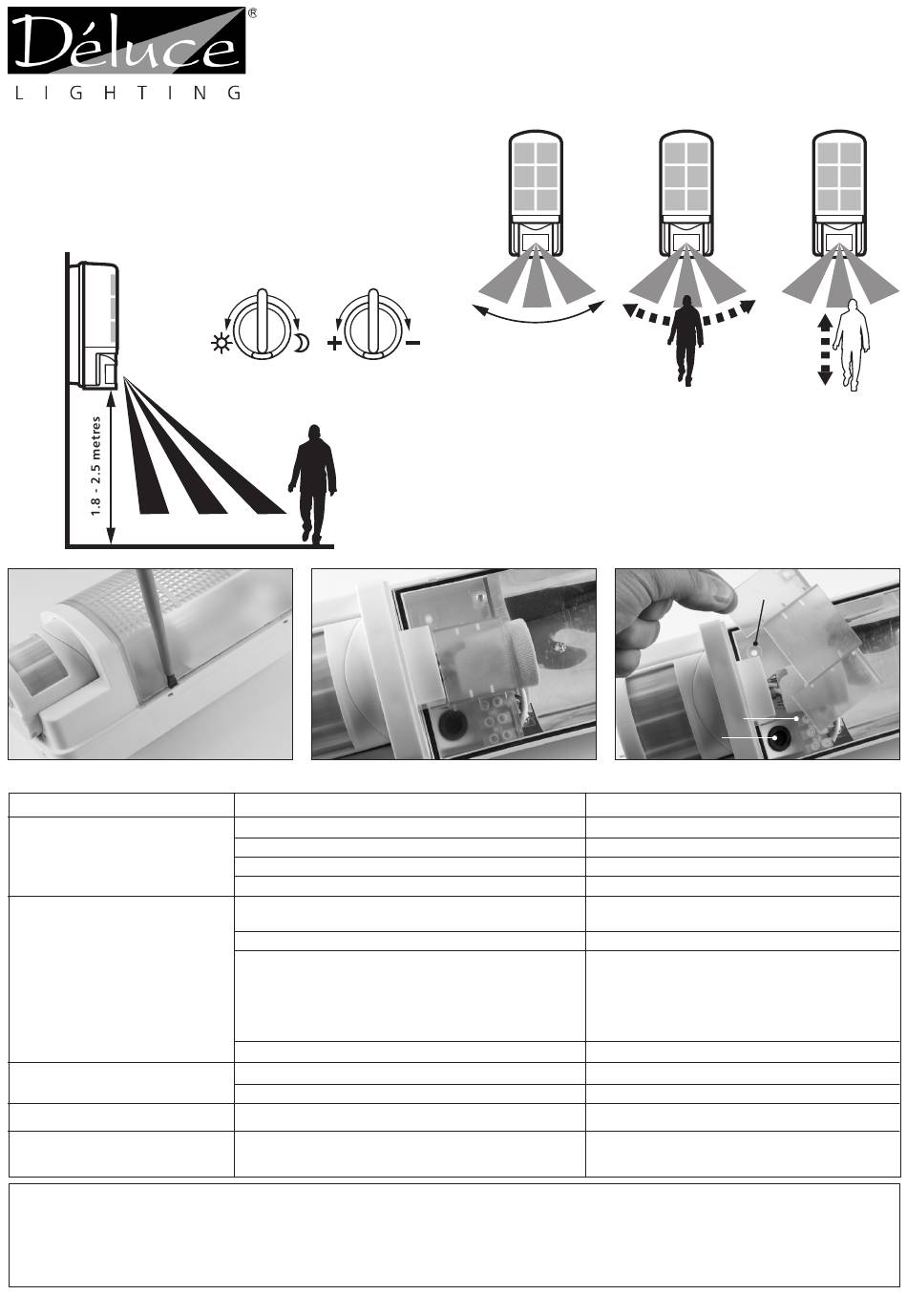

Deluce Lighting DLPLBLKPPIR Fitting Instructions page 2

Important Cleaning/Maintenance Information:
1. To avoid dust build-up and to ensure the correct function of the Porch Light,
wipe the sensor lens lightly with a damp cloth every 3 months. But never
modify the unit, there are no user serviceable parts inside.
2. Before touching the Porch Light or replacing the Lamp/Bulb, please switch
off all power to the unit and let it cool completely.
Fig 1
4m
Fig 6
TROUBLE SHOOTING AND USER HINTS
Problem
Light does not switch on when there is
movement in the detection area.
Lamp switches of for no apparent reason
(false trigger).
Light remains on.
Light switches on during daylight hours.
When setting controls in daylight the
detection distance becomes shorter
GUARANTEE
This product is guaranteed in the EU for a period of 1 year from the date of purchase. The guarantee is invalid in the case of improper use, installation, tampering, removal
of the QC date label, installation in an improper working environment or installation not according to the current edition of the IEE Wiring Regulations (BS 7671). Should
this product fail during the guarantee period it will be replaced free of charge, subject to correct installation and return of the faulty unit. Déluce Lighting does not accept
responsibility for any installation costs associated with the replacement of this product. Your statutory rights are not affected. Déluce Lighting reserves the right to alter
specifications without prior notice.
www.delucelighting.com
PORCH LIGHT FITTING INSTRUCTIONS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE
Fig 5
LUX TIME
8m 12m
Fig 7
Possible Cause
1. No mains Voltage.
2. Nearby lighting is too bright.
3. Controls set incorrectly.
4. Sensor positioned in wrong direction.
1. Heat sources such as air-con, vents, heater flues, barbecues,
other outside lighting, moving cars are activating sensor.
2. Animals/birds eg: dogs, foxes, cats etc.
3. Interference from on/off switching of electric fans or lights on
the same circuit as your Porch Light. This problem does not
always occur, but a faulty switch or noisy fluorescent light may
cause the Porch Light to switch on.
4. Refection from swimming pool or reflective surface.
1. Continuously false triggering.
2. Time is set too long.
Lux control is set to daylight position.
Interference by Sunlight.
We recommend this fitting is installed by a qualified Electrician.
Fig 2
110° Approx.
SPECIFICATIONS
Voltage: 230V~50Hz. Wattage: Max 60 Watt (Incandescent).
Detection Range: Approx.110° (horizontal), Max. 12 metres adjustable.
Duration Time: Adjustable from 10±5 Seconds to 4±1 minutes.
LuX Level Control: Adjustable from Daylight to Night.
Weatherproofing: IP44
A
Fig 3
Very
Good
Class Protection: 1
2nd MouNTiNG
HoLE
TERMiNAL BLoCK
CABLE GASKET
Suggested Remedy
Check all connections and fuses/switches.
Redirect sensor or relocate the unit.
Readjust the sensor angle or control switches.
Redirect the sensor and/or adjust.
Move away from heat sources.
Redirecting sensor head may help.
Should the false triggering become troublesome, consider:
a. Replacing a faulty switch
b. Replacing noisy fluorescent tubes and/or starters.
c. Connecting the Porch Light to a separate circuit.
In most cases where one or more of the above suggestions
has been carried out, false triggering has been reduced.
Redirect sensor.
Redirecting sensor head may help.
Reduce time.
Turn Lux control to desired light level setting
Re-test at night
DEL0240a/July 2012 /Page 2 of 1
Fig 4
Poor
Fig 8
