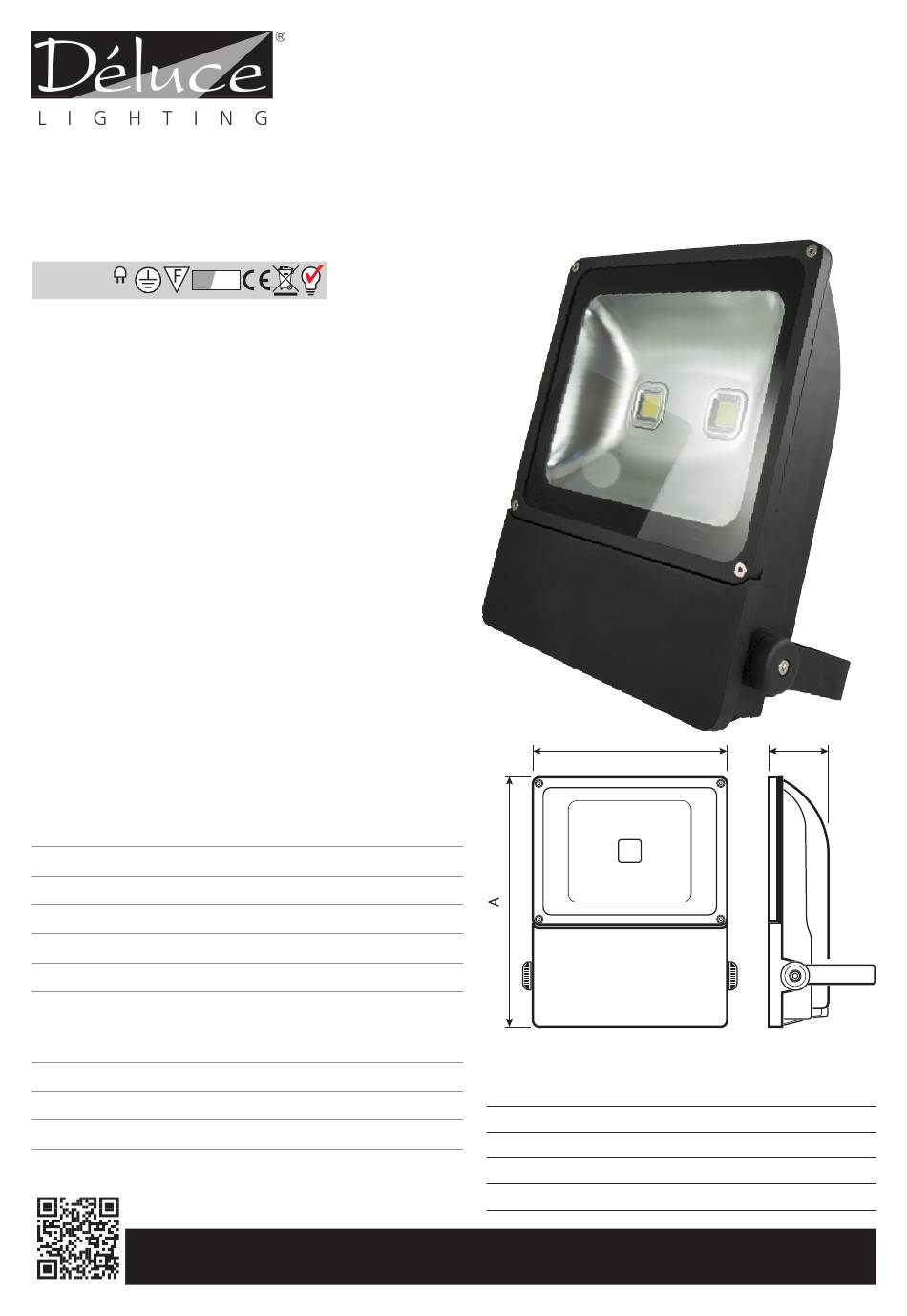

Deluce Lighting DL2MGFL10WBLKG Fitting Instructions

Led floodlight

Advertisement

These instructions are for the Déluce Lighting Protector 8 advanced floodlight range: 10W, 30W, 50W, 80W and 120W :
DL2MGFL10WBLKB, DL2MGFL10WBLKDL, DL2MGFL10WBLKG, DL2MGFL10WBLKR, DL2MGFL10WBLKWW, DL2MGFL10WWHB,
DL2MGFL10WWHDL, DL2MGFL10WWHG, DL2MGFL10WWHR, DL2MGFL10WWHWW, DL2MGFL30WBLKDL, DL2MGFL30WBLKRGB,
DL2MGFL30WBLKWW, DL2MGFL50WBLKDL, DL2MGFL50WBLKWW, DL2MGFL80WBLKB, DL2MGFL80WBLKDL, DL2MGFL80WBLKG,
DL2MGFL80WBLKR, DL2MGFL80WBLKWW, DL2MGFL120WBLKB, DL2MGFL120WBLKDL, DL2MGFL120WBLKG, DL2MGFL120WBLKR
and DL2MGFL120WBLKWW.
IP
100-240V
LED

IMPORTANT INSTALLATION INFORMATION

• Installation should be carried out in accordance with the
latest edition of the IEE Wiring Regulations (BS7671) and
taking into consideration the latest Building Regulations. If in
doubt, consult a qualified electrician.
• Important: Ensure that ALL electrical connections are tight
with no loose strands including factory made connections.
• Before commencing any installation or maintenance
work, ensure electricity is switched off at the mains.
• Please take note of the maximum rated voltage for your
floodlight.
PLEASE NOTE THIS FLOODLIGHT IS MULTI-VOLTAGE - AN
APPROPRIATE 110V STEP-DOWN TRANSFORMER MUST
BE USED WHEN USING THE FLOODLIGHT ON SITE.
• Please take note of the IP (Ingress Protection) rating of your
floodlight when deciding location.
• Always allow sufficient slack in the supply cable in order
to remove the floodlight from its position for any future
• Care must be taken for installations where the lens or bezel
may come into contact with bare skin.
• Please take note of the nearest illuminated surface as detailed
on the product label.

TECHNICAL DATA

Type:
Voltage:
LED power:
Number of LEDs:
Lumens*:
Protection class:
Colour temperature*:
• Daylight
• Warm white
Cri:
Average life:
Operating temperature:
* Does not apply to single colour or RGB versions
www.delucelighting.com
FITTING INSTRUCTIONS
65
Marine Grade LED Floodlights
AC100V ~ 265V
10W, 30W, 50W, 80W, 120W
1 piece - 2 pieces
(120W only)
90lm / W
IP65
5500K ±200K
3200K ±200K
80
50,000 hours
-25 ° C ~ +40 ° C
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE
We recommend this fitting is installed by a qualified Electrician.
LED FLOODLIGHT
B
Dimension A
10W
179mm
30W
292mm
50W
292mm
80W
400mm
120W
430mm
C

PRODUCT DIMENSIONS

Dimension B
Dimension C
139mm
49mm
234mm
68mm
234mm
68mm
310mm
87mm
360mm
100mm
DEL0423b/May_2015[issue_2] Page 1 of 2
