Clenergy PV-ezRack Code-Compliant Planning And Installation Manual
Cover for isolator bracket ii
Hide thumbs
Also See for PV-ezRack:
- Installation manual (24 pages) ,
- Installation instructions manual (14 pages)
Related Manuals for Clenergy PV-ezRack
Summary of Contents for Clenergy PV-ezRack

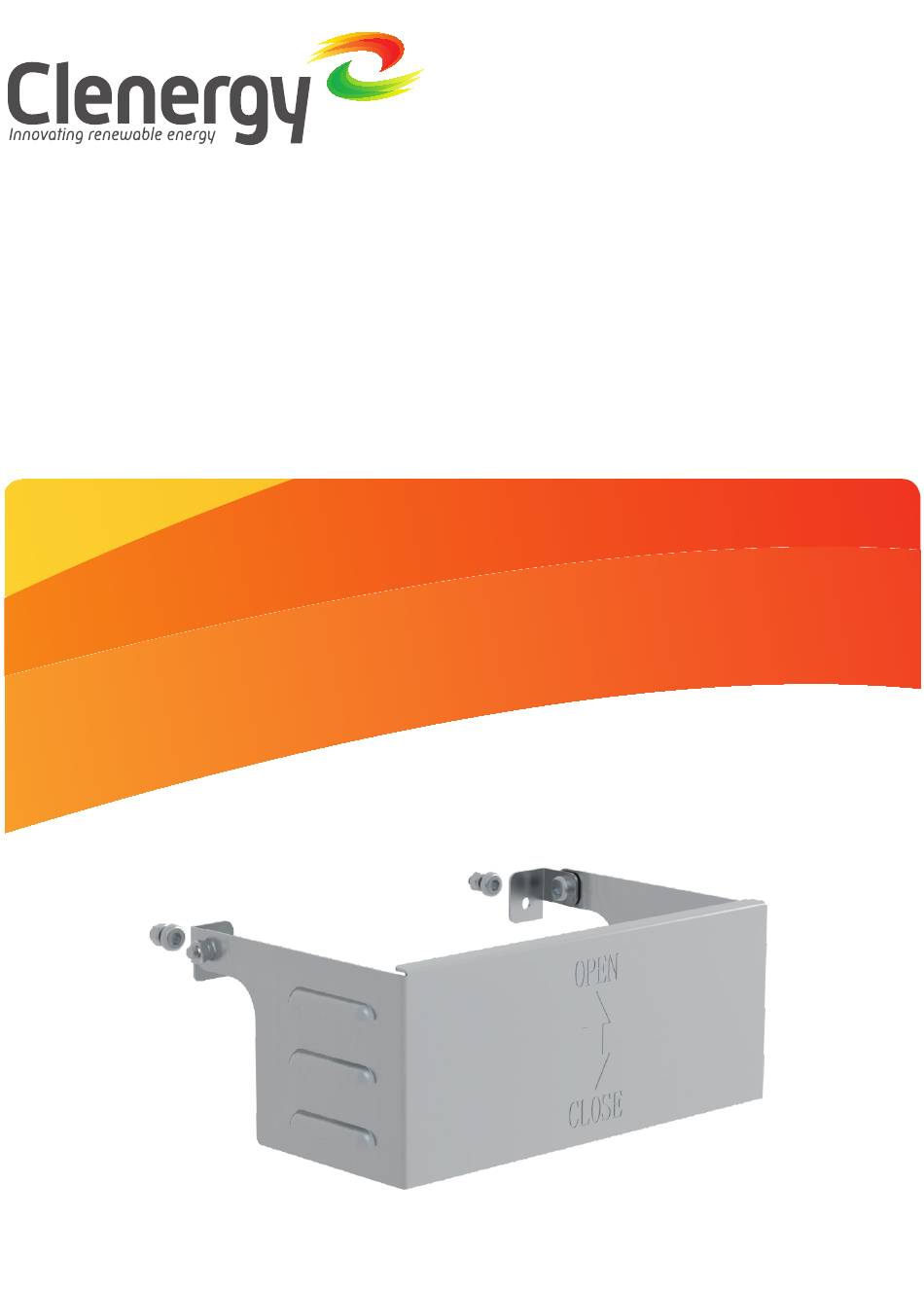

- Page 1 PV-ezRack Cover for Isolator Bracket II Code-Compliant Planning and Installation Guide V1.0 Complying with AS/NZS 5033: 2014 AMDT 2: 2018...
- Page 2 Introduction • Ensuring safe installation of all electrical Tools &Component list aspects of the PV array. This includes adequate ® earth bonding of the PV array and PV-ezRack Installation Instruction components as required in AS/NZS 5033-2014 AMDT 2 2-2018. page...
- Page 3 (maximum torque ≥20 N·m , for M6 and M8 Hexagon Socket Screw) 2.2 Components CO-IBII/240/100 Cover for Isolator Bracket II page of 05 Unit 1, 10 Duerdin St, Clayton VIC 3168, Australia Tel: +61 3 9239 8088 Fax: +61 3 9239 8024 E-mail: tech@clenergy.com.au www.clenergy.com.au...
- Page 4 3.3 Align the hole of L profile connecting piece with the elongated hole of the Isolator Bracket as shown in Figure 4. Figure 4 page of 05 Unit 1, 10 Duerdin St, Clayton VIC 3168, Australia Tel: +61 3 9239 8088 Fax: +61 3 9239 8024 E-mail: tech@clenergy.com.au www.clenergy.com.au...
- Page 5 Note: The bolt heads should be inside of isolator bracket to minimize the interference of bolts on isolator. page of 05 Unit 1, 10 Duerdin St, Clayton VIC 3168, Australia Tel: +61 3 9239 8088 Fax: +61 3 9239 8024 E-mail: tech@clenergy.com.au www.clenergy.com.au...
- Page 6 Note: Allow space above the Rail to open the isolator cover. Recommended torque for M8 bolts (with z modules) is 5-6N·m Figure 11 page of 05 Unit 1, 10 Duerdin St, Clayton VIC 3168, Australia Tel: +61 3 9239 8088 Fax: +61 3 9239 8024 E-mail: tech@clenergy.com.au www.clenergy.com.au...
- Page 7 Tel: +66 63 228 0200, +66 81 969 5152 E-mail: sales_th@clenergy.com,support_th@clenergy.com Clenergy Singapore 24 Raffles Place #28-01 Clifford Centre Singapore 048621 Tel: +65 9743 1425 E-mail: vincent.chan@clenergy.com Clenergy Vietnam Tel: +86 592 3110095 Warranty E-mail: sales_vietnam@clenergy.com; susie.chen@clenergy.com; ducnguyen@clenergy.com Clenergy Installation Guide-Cover for Isolator Bracket II 201910...
