Blichmann BrewCommander Assembly Operation Maintenance Manual

Hide thumbs Also See for BrewCommander:

Advertisement

Quick Links

Assembly, Operation, & Maintenance
Congratulations on your purchase, and thank you for selecting the BrewCommander™
Brewhouse Control from Blichmann Engineering™. We are confident that it will provide
you years of service and many gallons of outstanding beer. This manual will familiarize
you with the use and assembly procedures for the product.
PLEASE READ AND THOROUGHLY UNDERSTAND THIS MANUAL PRIOR TO USE
WARNING:
Sections labeled "Warning" can lead to serious injury or death if not followed. Please thoroughly read these sections
and understand them completely before use. If you do not understand them or have any questions, contact your
retailer or Blichmann Engineering (www.BlichmannEngineering.com) before use.
CAUTION:
Sections labeled "Caution" can lead to equipment damage or unsatisfactory performance of the equipment. Please
read these sections thoroughly. If you have any questions, contact your retailer or Blichmann Engineering
(www.BlichmannEngineering.com) before use.
IMPORTANT:
Sections labeled "Important" should specifically be followed to ensure satisfactory results with the product.
120V / 240V Controller
aBrewCommander-120V
aBrewCommander-240V
BrewCommander™
© Blichmann Engineering, LLC 2019
V. 1 - Firmware Ver1.0:1.1
Electric
IMPORTANT INFORMATION
FOR IMPORTANT SAFETY INFORMATION!

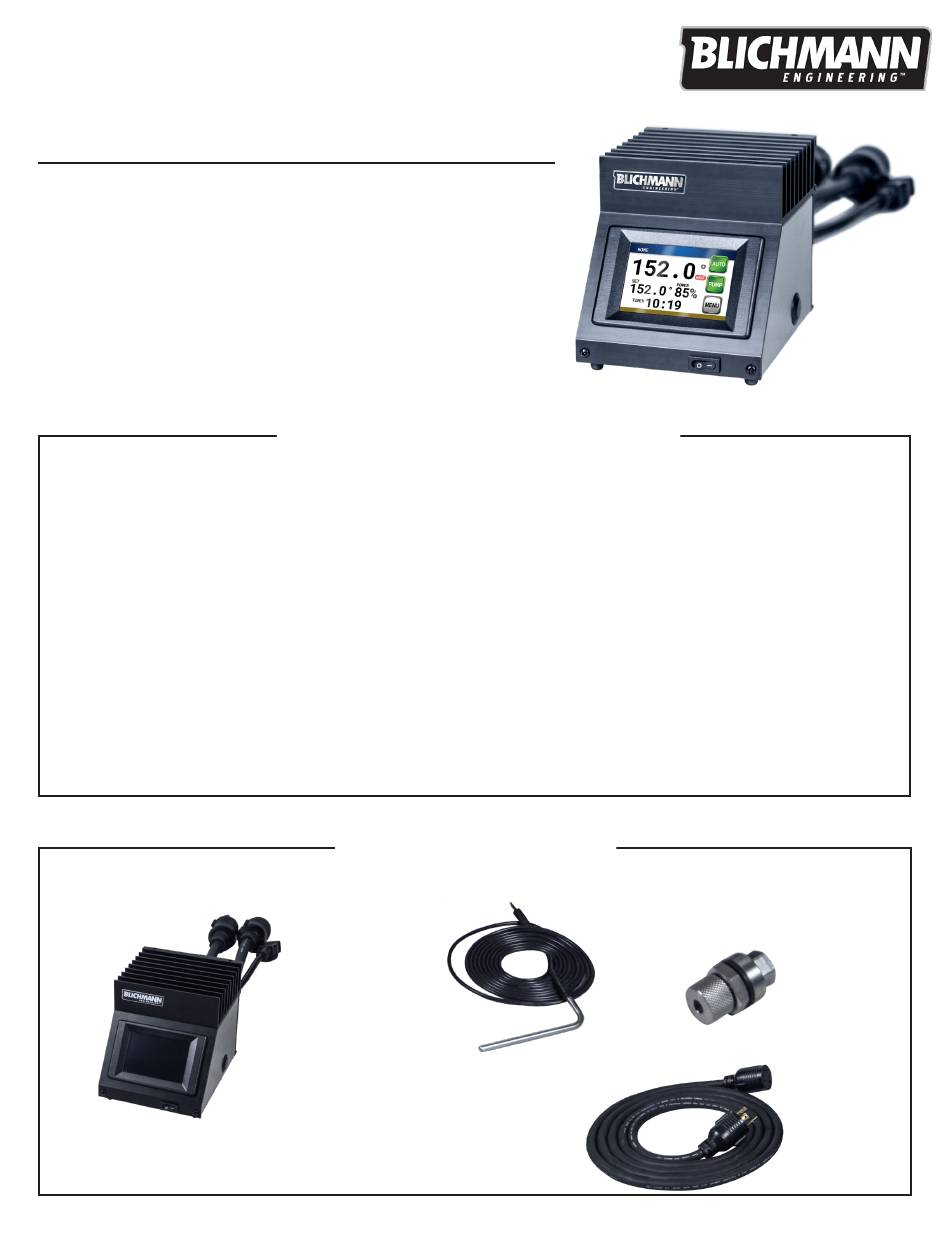

What' s In the Box?
Temperature Sensor Probe
BE-001500-00
Power Cord
120V - BE-000365-01
240V - BE-000364-01
Temperature Sensor
Bulkhead Assembly
See Page 3 for
entire list of
Part #' s located
under Temperature
Sensor Assembly.
