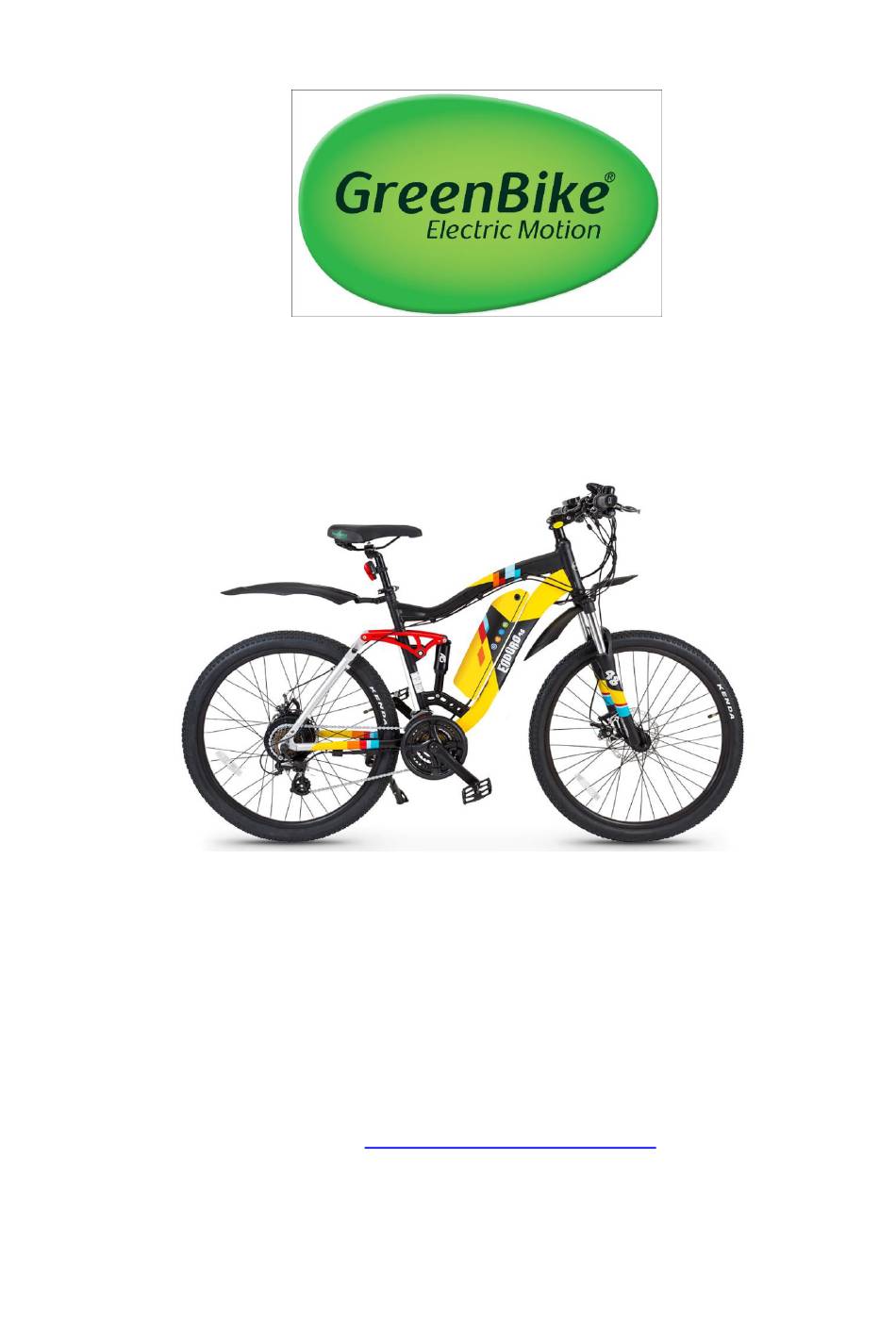

- Page 1 Professional electric mountain bikes MODEL: Enduro 48 Customer Service: Green Bike Electric Motion LLC Address: 7057 Reseda Boulevard, Reseda, CA 91335. Phone: (310) 254-6041 Email: office@greenbikeelectric.com Website: www.GreenBikeElectric.com...
- Page 2 Instruction Manual Dear Client, Green Bike – Electric Motion Congratulations on you're newly purchased Joining Green bike's Go Green revolution will open your doors to a whole new world of freedom! Green Bike – Electric Motion LLC greatly values the quality of our products, giving you value for your money, friendly and professional service, and safety for the rider above all else.
- Page 3 Picture of the location of bicycle parts: 1. Throttle 2. 3. Handlebar. 4. Brake handle. 5. Brake cable. 6. Stem 7. Front fork 8. Grips. Front wheel. 9. Tire and inner tube. 10. . 11. Controller. 12. Pedal. 13. Front Front brake wheel chain (crank).
- Page 4 • Be sure that the adjustment locking handles of the seatpost are in lock mode before starting the trip. • Check the condition of the brakes regularly and fine-tune the brakes when necessary. • Braking range on a dry road is 13 feet and on a wet road can reach to 45 feet. Keep braking range according to the road conditions and if the road is wet keep a greater braking range.
- Page 5 When the fifth and final markings flash, the switch must be closed and pedaled as a regular bicycle. After recharging, you can drive again with the electric motor. • Park in a safe place that is not an obstacle to vehicles or pedestrians. Place the bike on the jack, disconnect the power with the main switch and pull the key out of the lock.
- Page 6 • Do not disassemble the electrical parts. Disassembling them independently will void the warranty provided by the manufacturer. • Do not lubricate the electrical. Brake maintenance: • The brakes in this model are high-quality hydraulic disc brakes designed by Green Bike Electric Motion The left stop handle is responsible for braking the front wheel and the right stop handle is responsible for braking the rear wheel.
- Page 7 KH-DX-M1 : Ebike Display with thumb throttle Material Caser and Cover: ABS LCD window: PMMA Overview Manipulation: Integrated with one thumb throttle for speed regulation Equipped with 3 press buttons to switch display content and make parameter settings Protocol: This display uses UART protocol, throttle signal is sent by UART to controller Speed：...
- Page 8 Indicates the battery level in real time Light control: ON/OFF : Press button for 3 seconds to switch on/off 6. Assist level: From 1 to 3, press up or down button to change assist level (could be set to more levels) 7.
-
Page 9: Operation Instructions
Battery level: 5 levels, Speed: Average SPEED/MAX SPEED/Real-time SPEED Speed unit: KMH/MPH 6km/h walk mode: Assist level: assist level 1~3. Head light icon: shows up when head light and back light are on. Distance: Trip/ODO. Error code: “ERR” and code show up when there is error. Operation instructions It is equipped with 3 press buttons: “UP”... - Page 10 2. Different Speed display: Long press Power switch different speed information, Real time speed (SPEED) → Max speed（ MAX SPEED）→ Average speed (AVGSPEED)
- Page 11 3. ODO/TRIP/ Ride time/Error Code Short press to switch ODO/TRIP/Ride time/Error Code Trip (Single trip distance)→ODO (Accumulated distance)→TM (Ride time)→ERR (Error Code) 4. Assist level Short press to change assist level, default value is level 1...
- Page 12 5. Light control Long press for 3 seconds turn on/off the head light and rear lamp 6. 6km/h mode When the bike is stopped, long press , will enter 6km/h mode, the speed will be 4.5~7.5km/h according to different road conditions, will show up on screen, long press again or short press to quit 6km/h mode.
-
Page 13: Parameters Setting
Parameters setting When the display is powered on, long press , will enter parameter setting mode , in this mode, user can change parameter values . long press again will quit parameter setting mode or no operation during 10s will also quit this mode. - Page 14 • P02-KMH / MPH: Short press to Switch Kmh/MPH. • P03-Battery rated voltage: Short press to switch 24V, 36V,48V, Default value is 36V. • P04-Auto shutdown time: short press to switch from 0 to 60, it is the time (in minutes) to shut down the screen automatically if no operation, 0 means never shut down, Default value is 10 minutes •...
- Page 15 Short press to change level 0->1->2. assist levels : 0: 3 assist levels 1: 5 assist levels 2: 9 assist levels • P06-Wheel size selection: short press to switch wheel size, in inch, step: 0.1 inch...
- Page 16 • P07-Number of magnets for speed sensor: short press to switch from 1 to 100. • P08-speed limit: short press to set the speed limit from 0 to 100Km/h, 100 means no limit. In this e-bikes the controller is limited to 20 mph with throttle because the USA regulations.
- Page 17 short press to switch from 0->1->2. 0： Assist mode (throttle does not work, only pedal assist); 1: Electrical driving mode(only throttle works, pedal assist does not work) 2: Both assist and Electrical driving mode (Not available if in zero speed start and electrical driving mode •...
- Page 18 • P12-assist starting power setting: short press to switch from 0 to 5. • P13-Assist magnetic disc types: to switch from 5->8->12 ， different numbers of short press magnets in the disc.
- Page 19 • P15-low voltage protection for controller : • P16-Reset ODO distance: long press during 5 seconds. • P18-Reset all parameters: 5 seconds, when it displays “SSSS”, all parameters reset to long press default values (except for the ODO distance).
-
Page 20: Specifications
Specifications Power supply: 24V,36V, 48V Rated current: 10mA Max current: 30mA Leakage current after power off: <1uA Current supply to controller: 50mA Working Temperature： -18~65℃ Storage temperature： -30~80℃ Notices Power on and power off must keep an interval of at least 3 seconds, Please don’t press ”... - Page 21 Table 1- Error code definition When an error appears, display will notice users by different codes, please refer to table 1 for different codes : Code(Decimal) Signification Normal Low Battery level Motor error Throttle error Controller error UART receive error UART receive error...
- Page 22 For your one safety please wear a helmet! No change shall be made to the bicycle without permission from the importer. Such a change will result in the cancellation of the warranty. Keep proper maintenance of bike: • Strengthen the spokes once in 4 months in a certified workshop. •...
- Page 23 27.5"×2.1" made by improved version Rims 100% double-sided aluminum Controller (PAS): "Smart" controller - computerized with Front brake Green Bike Electric Motion Hydraulic Disc pedal assistance according to the Rear brake European standard. brakes Manual gear Speed - 3×7 Shimano Altus Shimano...
- Page 24 Common Problems and Solutions Problem 1: After turning on the main switch, the lights do not turn on and the bike does not move electrically. Cause: The battery poles are not properly connected or a fuse is burned. Solution: Check the battery contacts if they are dirty and should be cleaned. If the problem is not resolved, check the battery fuses.
- Page 25 Cause: 15-amp fuse of the battery house is burn Cause 2: the connection to the battery outlet is improperly connected Cause 3: The battery charger is damaged. Solution: First try to connect the battery charger to a different wall outlet, after testing the power source (wall outlet) or replacing the charger, if the problem is not solved please contact by email office@GreenBikeElectric.com Remember:...
- Page 26 Dear Client, Green bike – Electric Motion. welcomes you on the purchase of the model Enduro 48 electric bicycle. We happy to be at your disposal for maintenance and fulfillment of manufacturer's warranty if necessary. Please carefully read the following warranty conditions.
- Page 27 * The warranty does not include the replacement of a part or repair resulting from external trauma or a fracture resulting from an accident or a fall, including , pulling cables from the electrical components, abrasion of the power cord, short circuit from the national electrical system .
- Page 28 Warranty Green Bike – Electric Motion LLC enduro 48 I hereby inform you that I purchased an In the shop ____________________ Street and number _______________ City _______________ State _______________ ZIP ______________ Invoice No. _______________ Date of purchase ___________________. Serial number of the bike (the number is stamped under the handlebar)
