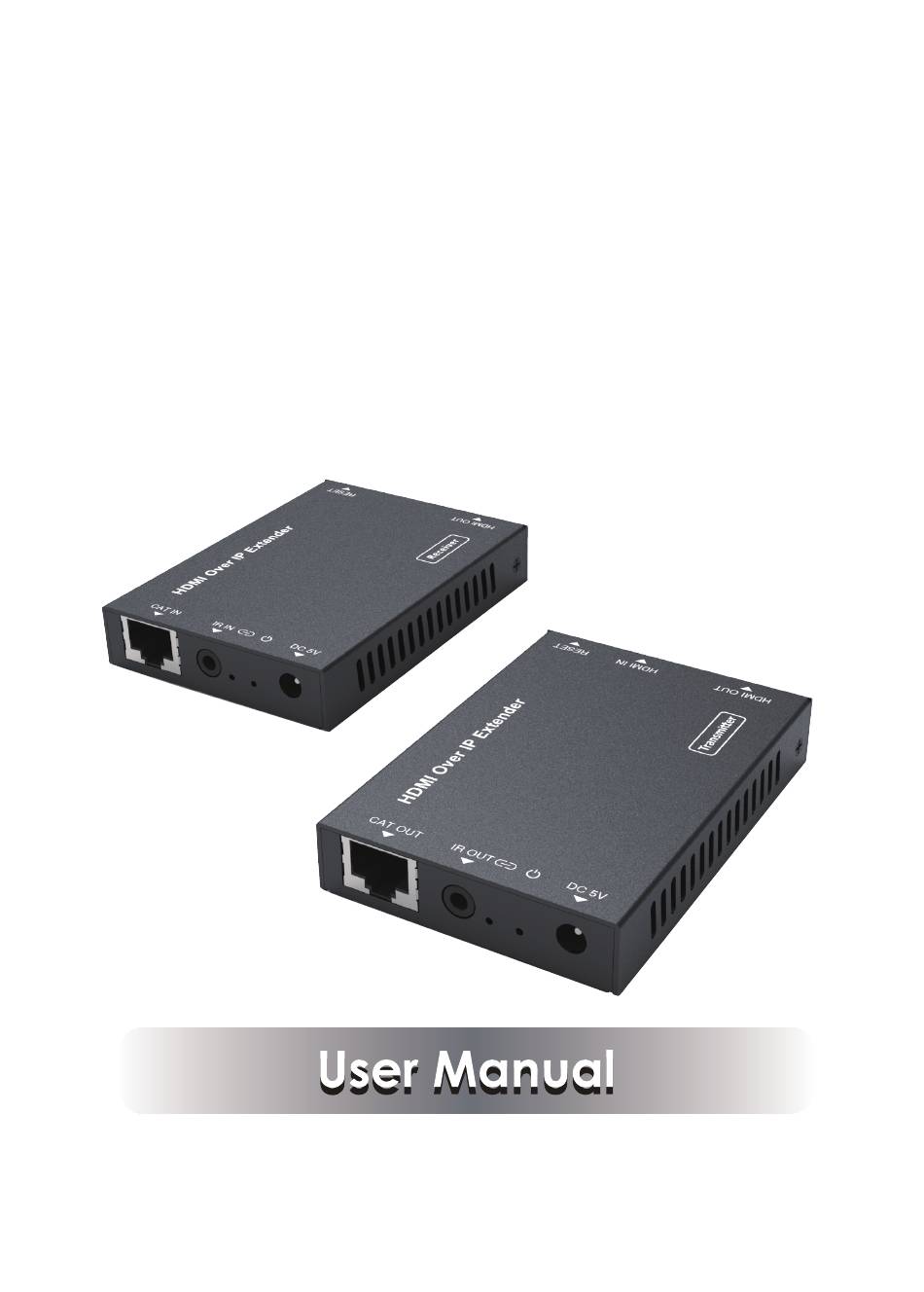

- Page 1 HDMI over IP Extender with Loop out (100M) VER 1.0...
-
Page 2: Table Of Contents
Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc. -
Page 3: Introduction
1. Introduction HDMI over IP Extender is based on AV over IP solution for distribution of one HD content to one HD display device or to multiple HD display devices over a standard 1G network switcher, and extends distance up to 100m/328ft between encoder and decoder via Cat5e/6 cable. -
Page 4: Specifications
4. Specifications Technical HDMI Compliance HDMI 1.4b HDCP Compliance HDCP 1.4 Video Bandwidth 10.2Gbps Video Resolution 640x480@60Hz~1920x1200@60Hz HDMI Audio Formats LPCM 2.0CH,48KHz IR Frequency 20KHz ~ 60KHz Compression H.265 Technology Request for Switcher Support 1 GMP, Support DHCP /Router Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2 Color Depth 8-bit... -
Page 5: Operation Controls And Functions
Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F Relative Humidity 20~90% RH (non-condensing) 5. Operation Controls and Functions 5.1 Encoder Panel HDMI OUT HDMI IN RESET CAT OUT IR OUT DC 5V Number Name Function description HDMI Loopout port, connect to HDMI display device HDMI OUT such as TV or monitor with an HDMI cable. -
Page 6: Decoder Panel
5.2 Decoder Panel HDMI OUT RESET CAT IN IR IN DC 5V Number Name Function description Connect to HDMI display device such as TV or HDMI OUT monitor with an HDMI cable. ▪ Press the button briefly to reset the product, including IP address, encoding information and EDID. -
Page 7: The Computer Plays Video Stream
6. The Computer plays Video Stream 6.1 Web GUI introduction The Encoder supports play video stream on computer through the correspo- nding on-demand software such as VLC media player, and you can connect the Web GUI of the product to control your on-demand software on the computer. - Page 8 Double click Internet Protocol Version 4 (TCP/IPv4). 6/17...
- Page 9 Choose “Use the following IP address”, input 192.168.10.200 as IP address, 255.255.255.0 as Subnet mask, and then click on OK, click on OK again. Notice: The IP address of the computer and Encoder should be in the same network segment. As the Encoder’s IP address is 192.168.10.10, the computer's IP should be 192.168.10.X (X contains 1~255 except 10).
- Page 10 Video page Dectype: There is a drop-down frame when you click the blue arrow area. You can choose H.264 or H265 code at MainStream or SubStream. Please see below picture 1. Picture 1 Resolution: There is a drop-down frame when you click the blue arrow area. You can choose an output resolution.
-
Page 11: Network Configuration
Network page Network Configuration ◆ In DHCP open status: DHCP switch: Obtian automatically the network configuration information, including IP address, Subnet, Gateway. ◆ In DHCP close status: DHCP switch: If the DHCP switch has been closed, you can set IP, Subnet, Gate address. - Page 12 Note: When you use the product alone, we suggest that you use the default IP setting. If you can not obtain the IP information as HDCP setting, you can press the “RESET” button of the Encoder to recover default IP address. The default IP address is 192.168.10.10. Update page Firmware update port, open a bin.
-
Page 13: Vlc Media Player Introduction
6.2 VLC media player instruction When you have connected the Web GUI, then you need to open the VLC media player software on the computer. Double click the “VLC media player” shortcut icon. Please see the icon at picture 4. Picture 4 Step 1: Click “Media >... - Page 14 Step 2: At this time, you will see the following page. You need to enter a network URL. If you want to enter MainStream, please input a MainStream network URL. The MainStream is “rtsp://192.168.10.10/live/main/av_stream”. If you want to enter SubStream, please input a SubStream network URL. The SubStream is “rtsp://192.168.10.10/live/sub/av_stream”.
- Page 15 Step 3: If you enter a MainStream network URL, you can use the MainStream of the Web GUI to setting the Dectype, Resolution and Bitrate value of the VLC media player. At the same time, you can check the setting on VLC media player. Choose “Tools>Codec information”...
- Page 16 Choose “Tools>Codec information>Statistics” to check current bitrate. Please see the following picture. Note: The bitrate is floating up and down when you check it. This is a normal phenomenon. 14/17...
-
Page 17: Application Example
7. Application Example DVD or Blu-ray Player HDMI OUT HDMI IN RESET HDMI OUT RESET Decoder Encoder CAT IN IR IN DC 5V CAT OUT IR OUT DC 5V Power Supply Power Supply Ethernet Cat5e/6 IR Extender IR Blaster Figure 2: Encoder connects directly Decoder 15/17... - Page 18 DVD or Blu-ray Player HDMI Cable HDMI Cable HDMI OUT HDMI IN RESET CAT OUT IR OUT DC 5V Encoder Ethernet Cat5e/6 SWITCHER Ethernet Cat5e/6 HDMI Cable CAT IN IR IN DC 5V HDMI OUT RESET Decoder HDMI Cable CAT IN IR IN DC 5V HDMI OUT...
-
Page 19: Faq
8. FAQ Q: Does this product require an line length for the connection interface? A: According to HDMI line length test, 1920×1200@60Hz YCbCr 4:4:4 is the longest line length up to 15m/49.2ft. According to CAT line length test, using CAT 5e/6 cable extends distance up to 100m/328ft between Encode and Decode.
