Installation Instructions

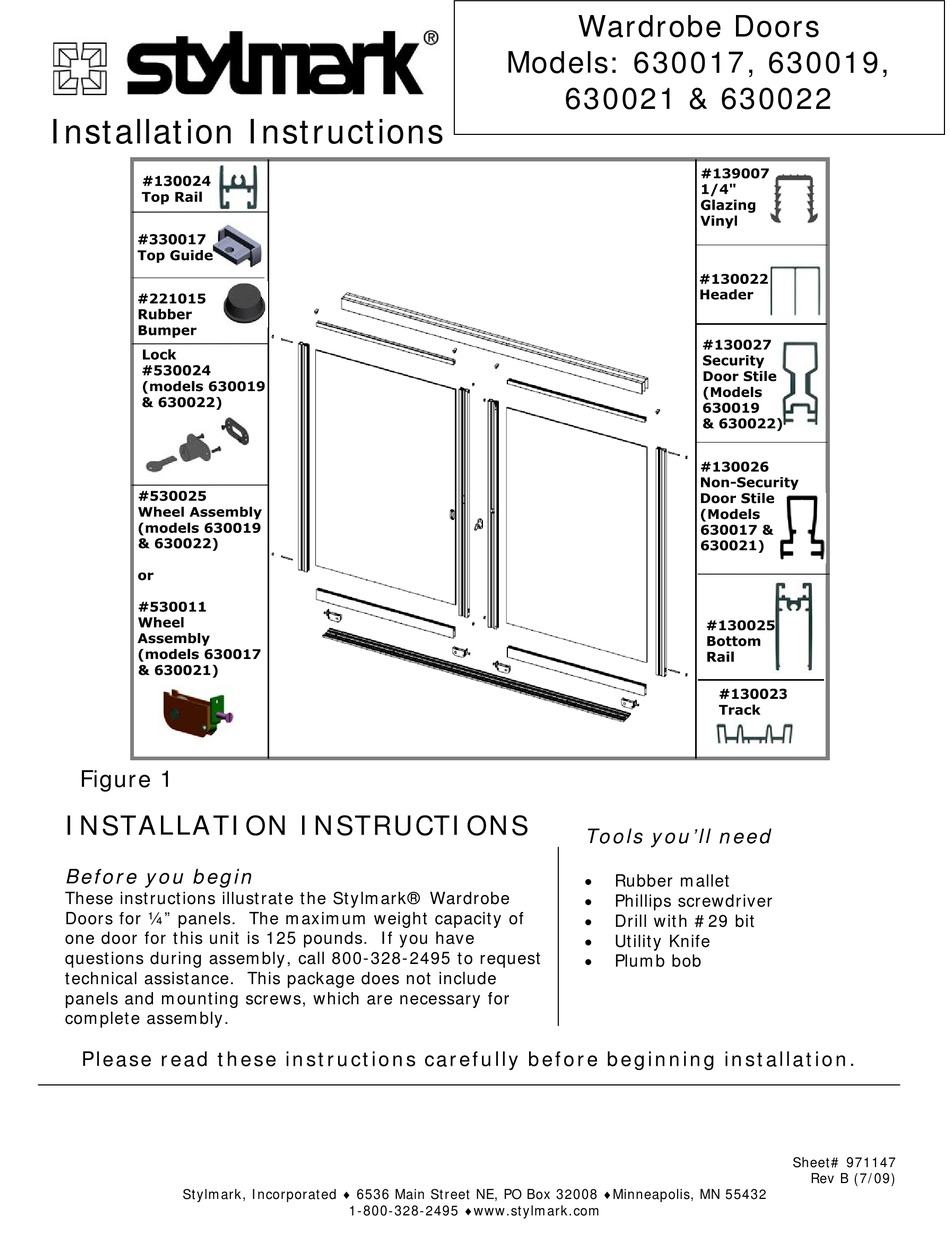

Figure 1
INSTALLATION INSTRUCTIONS
Before you begin
These instructions illustrate the Stylmark® Wardrobe
Doors for ¼" panels. The maximum weight capacity of
one door for this unit is 125 pounds. If you have
questions during assembly, call 800-328-2495 to request
technical assistance. This package does not include
panels and mounting screws, which are necessary for
complete assembly.
Please read these instructions carefully before beginning installation.
Stylmark, Incorporated 6536 Main Street NE, PO Box 32008 Minneapolis, MN 55432
Models: 630017, 630019,
1-800-328-2495 www.stylmark.com
Wardrobe Doors
630021 & 630022
Tools you'll need
Rubber mallet
Phillips screwdriver
Drill with #29 bit
Utility Knife
Plumb bob
Sheet# 971147
Rev B (7/09)
Advertisement
Table of Contents
Related Manuals for Stylmark 630017
Summary of Contents for Stylmark 630017
- Page 1 This package does not include panels and mounting screws, which are necessary for complete assembly. Please read these instructions carefully before beginning installation. Sheet# 971147 Rev B (7/09) Stylmark, Incorporated 6536 Main Street NE, PO Box 32008 Minneapolis, MN 55432 1-800-328-2495 www.stylmark.com...
- Page 2 # 530025 is for security stile part # 130027. Line up the adjustment screw with the bottom hole in the stile. See Figure 4. Sheet# 971147 Rev B (7/09) Stylmark, Incorporated 6536 Main Street NE, PO Box 32008 Minneapolis, MN 55432 1-800-328-2495 www.stylmark.com...
- Page 3 The strike plate is part of the lock assembly (part# 530024). Sheet# 971147 Rev B (7/09) Stylmark, Incorporated 6536 Main Street NE, PO Box 32008 Minneapolis, MN 55432 1-800-328-2495 www.stylmark.com...
- Page 4 4. Insert and adjust the front door panel following steps 1-3. Sheet# 971147 Rev B (7/09) Stylmark, Incorporated 6536 Main Street NE, PO Box 32008 Minneapolis, MN 55432 1-800-328-2495 www.stylmark.com...
