INSTALLATION INSTRUCTIONS
Before you begin
These instructions illustrate the Stylmark® Admire LED
Mirror. If you have questions during assembly, call 800-
328-2495 to request technical assistance. This
installation recommends two people to install.
Please read these instructions carefully before beginning installation.
Stylmark, Incorporated ♦ 6536 Main Street NE, PO Box 32008 ♦Minneapolis, MN 55432
1-800-328-2495 ♦www.stylmark.com

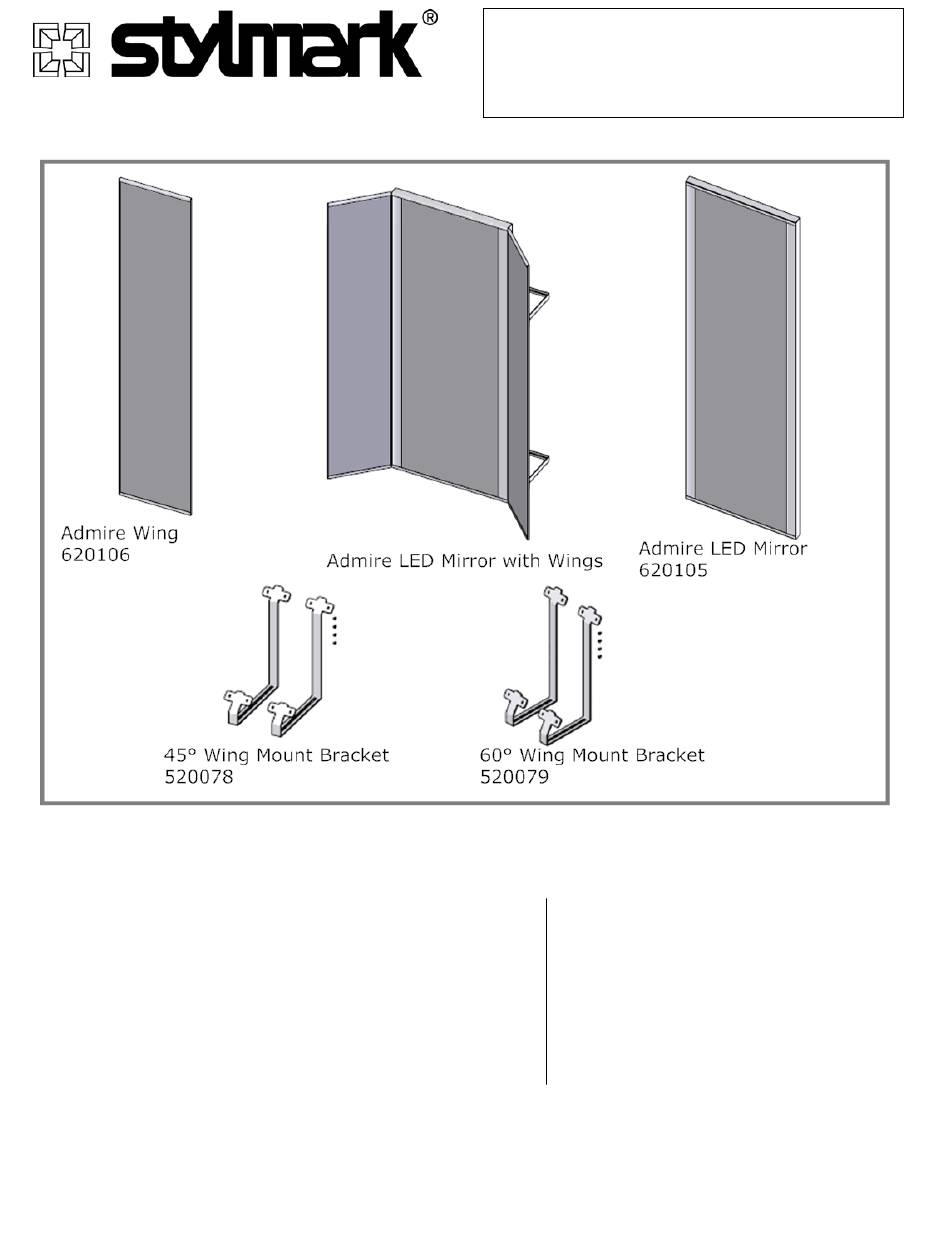

Admire LED Mirror
Model: 620105
Tools you'll need
•
Level
•
Tape measure
Drill and bits
•
#2 Phillips screwdriver
•
•
75 lbs. pullout rated fasteners
Wiring tools
•
Vacuum glass cups
•
Sheet# 971826
Revision C (1/17)
