Summary of Contents for Seasonic PRIME 80 PLUS Platinum Series
- Page 2 PLUS PLATINUM PLUS GOLD Öeský uŽivatelský manuál ke staŽení zde: •...

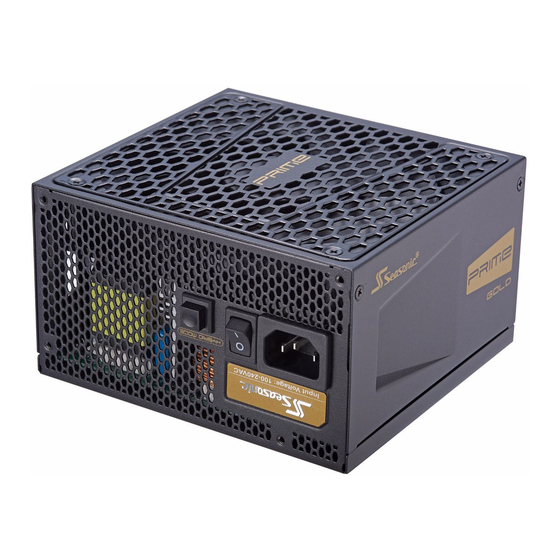

- Page 3 • Instrukcja obslugi do pobrania pod adresem: http://seasonic.com/pdf/manual/polish.pdf Introduction to the PRIME Platinum/Gold Series More than four decades of continuous product development culminates in the creation of PRIME, Seasonic's top tier product line. PRIME Platinum Series - 1200/1000/850 watts...
- Page 4 The PRIME Platinum series power supplies follow the state-of-the-art circuit design and are made with top quality components. These units are aimed at the overclockers who are aiming for both high power output and extremely high efficiency. PRIME Gold Series - 120011000/850 watts The PRIME Gold series achieve perfect balance between efficiency, performance, and power.
- Page 5 Contents English Deutsch PLUS PLATINUM Français Español Italiano...
- Page 6 Português PLUS PYCCKhÿ1 GOLD YKpaïHcbKv•1ü Specifications I DC Cables and Connectors 51 Protection Features 52...
- Page 7 DC Power Connectors 53 Contact Information...
-
Page 8: Carton Contents
l. Carton Contents... - Page 9 Power supply •...
- Page 10 • DO NOT place any object in front of the fan or the ventilation area of the power supply unit that may obstruct or • restrict airflow. USE ONLY the Seasonic modular cables provided with the power supply unit. •...
- Page 11 It is a flexible solution that optimizes cable management and reduces clutter inside the computer case. Micro Tolerance Load Regulation • Seasonic's latest design keeps the output voltage within a very tight range, achieving under 0.5 % (I % for 1000 W and above) load regulation.
- Page 12 Premium Hybrid Fan Control* • Seasonic's vast experience in designing the most silent power supplies on the market was translated into the development of a state-of-the-art fan control to keep the overall fan noise at a lowest possible level for an undisturbed user experience.
- Page 13 Fanless Mode) settings with the help of a selector switch found on the back panel of the power supply. Seasonic PRIME power supplies also have a built-in fan control IC, which utilizes hysteresis to optimize how frequently the fan switches on and off.
-
Page 14: Power Supply Removal
IV. Power Supply Removal 1 . Please first read Chapter ll. Warning! Important Safety Information above. Make certain that your system is entirely powered off; set the power supply's AC power switch to the "O" (OFF) position and disconnect the power cord from the AC outlet. Open the computer case (please refer to the manufacturer's user manual). -
Page 15: Power Supply Installation
V. Power Supply Installation I . Place the Seasonic power supply into the space provided within the case and use the four mounting screws provided in the accessory bag to secure it to the back panel of the case. Do not over-tighten the screws. - Page 16 Connect the mainboard end of the 24/20-Pin convertible connector to the mainboard, Depending on the mainboard, you may need to either attach or detach the 4-Pin module Of the 24/20-Pin connector. Connect the + 12 V 4-Pin connector and the EPS + 12 V connector, if applicable. If your system requires dual EPS + 12 V connectors, please connect the 8-Pin end of the second CPU 8-Pin connector into the appropriate 8-Pin receptor on the power supply unit.
-
Page 17: Troubleshooting
The "ON" setting enables the power supply to run in fanless mode up to 50 % (t 5 /0) of the maximum rated system load. 7. You are now ready to start your computer powered by Seasonic. VI. Troubleshooting If the power supply unit fails to function properly, please go through the below checklist. - Page 18 5 second delay in between to make sure the power supply unit is reset. If you are still experiencing difficulties to get the power supply unit to function properly, please visit www.seasonic.com for further technical support. Notes The operation of power supply is a "pull" technology, which means that the unit only provides the power as •...
- Page 19 Vll. Warranty Seasonic warranty covers the PRIME series power supplies for a period of 7 or 10 years, beginning from the date of purchase, against defects in materials or workmanship. During the warranty period, Sea Sonic maintains the discretion to either repair units or replace broken components with parts of similar or equal performance, provided that: The product is returned to the point of purchase, postage prepaid.
- Page 20 Warranty terms may vary between different geographic regions. • For consumers in Australia - Our goods come with guarantees that cannot be excluded under the Australian • Consumer Law You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
- Page 21 Vlll. Disclaimer All efforts have been made to ensure accuracy of all information provided herein. Sea Sonic assumes no liability, expressed or implied, for any damage(s) occurring to your system's components or other devices as a result of any mistake or omission during power supply installation or removal, or due to any defect or failure of the product itself.
- Page 22 PRIME Platinum PRIME Platinum PRIME Platinum PRIME PRIME PRIME Intel Specifications ATX 12V / EPS 12V Dimensions (L x W x H) x 150 x 86mm +1-1mrn Efficiency PLUS" Platinum / Energy Star / ErP Lot 6 2013 compliant PLUS' Gold / Energy Star ErP Lot 6 2013 compliant PF Correction Active, 0.99PF Typical Fan Type...
- Page 23 Frequency 50Hz-60Hz Input current@ 100 - 13A-6.5A 15A-7.5A 11A.5.5A 13A-6.5A 15A-7.5A IA.5.5A 240Vac +3.3V -125W +3.3V & SV 125W comb. +12V Max. 1200W 1200W +12V comb. 840W 996W 840W 996W Output -12V 0.3A 0.3A 0.3A 0.3A 0.3A 0.3A -12V comb. 3.6W 3.6W 3.6W...
- Page 24 12.5W 15th/ 12.5W +5Vsb comb, Total Power 850W 1200W 850W 1200W ooow ooow Mainboard (24/20Pin) CPU (8/4Pin) PCI-E (8/6Pin) SATA Specifications / DC Cables and Connectors 1000 1200 850 GOId 1000 GOId 1200 GOId...
-
Page 25: Protection Features
X. Protection Features Your Seasonic PRIME power supply is equipped with important protection features to ensure the safe and secure operation of your PC system. Should any electrical fault (either from within the system components or from the AC input) occur, one or more of the protection circuits will initiate and shut down the power supply to safeguard your system against electrical damage. - Page 26 Monitors the +12 V, +5 V and +3.3 V to ensure that the DC output voltages do not exceed the specified limits. 5. Under Voltage Protection (UVP) — Monitors the +12 V, +5 V & +3.3 V to ensure that the DC output voltages do not go under the specified limits. 6.
- Page 27 8 Pin +12V Power Connector Ping Pini B 1 6 Pin PCI E*press Connector Black 24 12 Black *3.3VDC Pin 13 Pini Black 23 11 Black +12VOC 8 / 4 Pin +12V Power Connector t5VDC Black 10 Black +12VDC *SVDC Black Black •5vsa...
- Page 28 Black 18 Black Biack Biack *12VDC Black Black ps_ow *12VDC Black Black *12VDC Black Black Black Black COM -1 woe *12VDC Black Black Black Black •3.3VbC *12VDC Black Black *3.3VDC Black 13 Black t3.3VDC B'ack Black *i2VDC...
- Page 29 Drive Power Connector Floppy...
- Page 30 ATTENTION! Please make sure that the connector is plugged in tightly AND all Additional product information, technical support, warranty terms and other important information can be found on our website at: www.seasonic.com Support Global: support@seasonic.com North and South America: ssa.support@seasonic.com Europe: sse.support@seasonic.com...
- Page 31 Sea Sonic Electronics Co., Ltd. 8F, #19, Alley 360, Sec.l, Neihu Road Neihu, Taipei City 114, Taiwan, R.O.C. Sea Sonic Europe B.V. Bredaseweg 18a, 4902 NS Oosterhout, The Netherlands...
