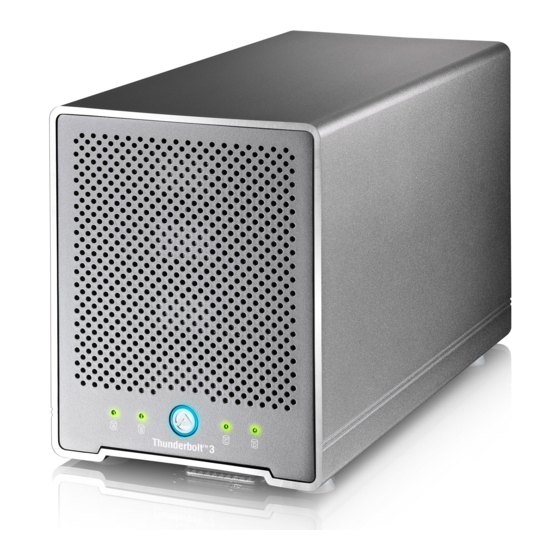

AKiTiO Thunder3 Quad Mini
EN
ES
DE
Setup guide - Guía de configuración - Setup-Anleitung - Guide d'installation
安裝手冊 - 安装手册 - 설치 안내서 - セッ トアップガイド
To download the latest version of this document, please visit our website at
https://www.akitio.com/support/user-manuals
E15-574H1AA001
© 2017 by AKiTiO - All Rights Reserved
AKiTiO assumes no responsibility for any errors or differences between the product you may have and the one mentioned in this document
and reserves the right to make changes in the specifications and/or design of this product without prior notice. The diagrams contained in
this document are for reference and may not fully represent the real product. AKiTiO assumes no responsibility for any loss of data or files.
www.akitio.com
California, USA
FR
CH
KO
J
P
PN: E15-574H1AA001
January 25, 2017 - v1.0

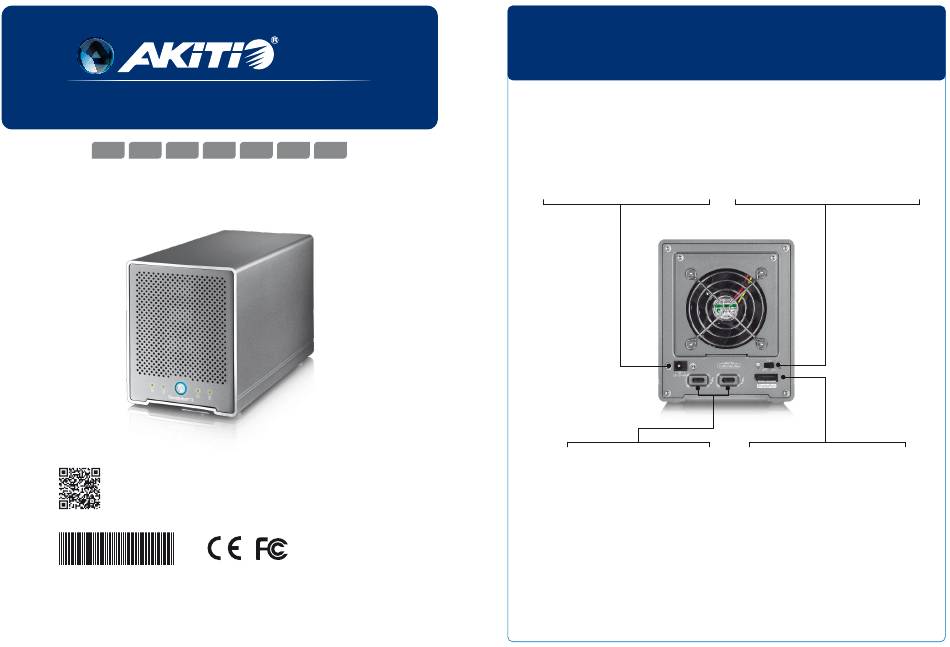

Rear View - Vista posterior - Rückansicht - Vue arrière
背面 - 背面 - 배면도 - リアビュー
DC 12V (+12V/6A)
電源插座
Power receptacle
电源插座
Toma de alimentación
전원 콘센트
Netzanschluss
電源コンセン ト
Prise de courant
Thunderbolt™ 3 (40 Gbps)
Thunderbolt™ 3 port
Puerto de Thunderbolt™ 3
Thunderbolt™ 3 Anschluss
Port Thunderbolt™ 3
Thunderbolt™ 3 連接埠
Thunderbolt™ 3 连接端口
Thunderbolt™ 3 포트
Thunderbolt™ 3 ポート
Fan (ON/OFF)
風扇開關
Fan switch
风扇开关
Interruptor de ventilador
팬 스위치
Gebläseschalter
ファンスイッチ
Interrupteur du ventilateur
Displayport 1.2 (4K at 60 Hz)
DisplayPort interface
Interfaz DisplayPort
DisplayPort-Anschluss
Interface DisplayPort
DisplayPort 連接埠
DisplayPort 连接端口
인터페이스 표시
DisplayPort ポート
