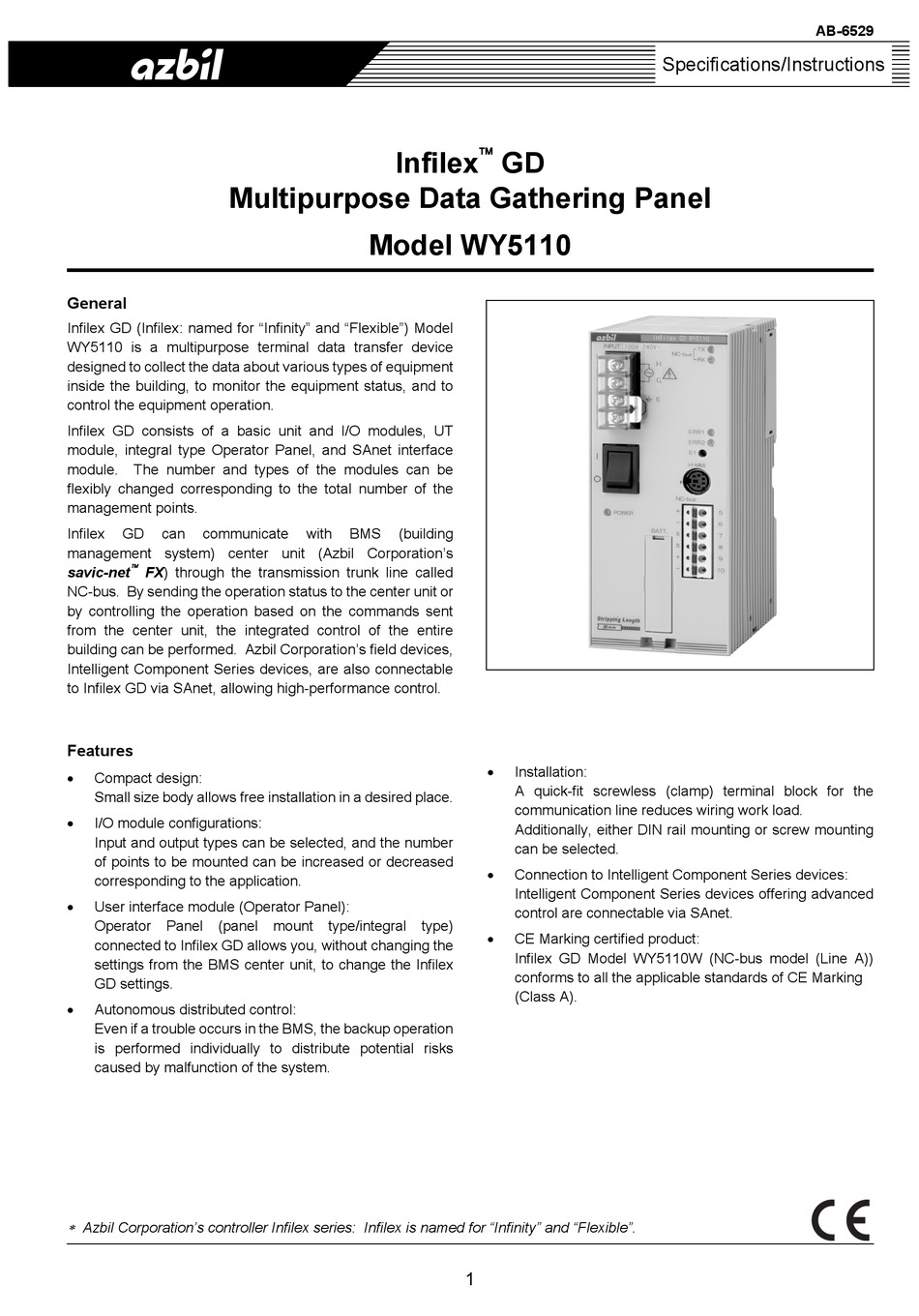

Multipurpose Data Gathering Panel
General
Infilex GD (Infilex: named for "Infinity" and "Flexible") Model
WY5110 is a multipurpose terminal data transfer device
designed to collect the data about various types of equipment
inside the building, to monitor the equipment status, and to
control the equipment operation.
Infilex GD consists of a basic unit and I/O modules, UT
module, integral type Operator Panel, and SAnet interface
module. The number and types of the modules can be
flexibly changed corresponding to the total number of the
management points.
Infilex
GD
can
communicate
management system) center unit (Azbil Corporation's
savic-net
FX) through the transmission trunk line called
NC-bus. By sending the operation status to the center unit or
by controlling the operation based on the commands sent
from the center unit, the integrated control of the entire
building can be performed. Azbil Corporation's field devices,
Intelligent Component Series devices, are also connectable
to Infilex GD via SAnet, allowing high-performance control.
Features
Compact design:
Small size body allows free installation in a desired place.
I/O module configurations:
Input and output types can be selected, and the number
of points to be mounted can be increased or decreased
corresponding to the application.
User interface module (Operator Panel):
Operator Panel (panel mount type/integral type)
connected to Infilex GD allows you, without changing the
settings from the BMS center unit, to change the Infilex
GD settings.
Autonomous distributed control:
Even if a trouble occurs in the BMS, the backup operation
is performed individually to distribute potential risks
caused by malfunction of the system.
Azbil Corporation's controller Infilex series: Infilex is named for "Infinity" and "Flexible".
Infilex
Model WY5110
with
BMS
(building
1
GD
Installation:
A quick-fit screwless (clamp) terminal block for the
communication line reduces wiring work load.
Additionally, either DIN rail mounting or screw mounting
can be selected.
Connection to Intelligent Component Series devices:
Intelligent Component Series devices offering advanced
control are connectable via SAnet.
CE Marking certified product:
Infilex GD Model WY5110W (NC-bus model (Line A))
conforms to all the applicable standards of CE Marking
(Class A).
AB-6529
Specifications/Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inflex GD WY5110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Azbil Inflex GD WY5110

  • Page 1 Autonomous distributed control: Even if a trouble occurs in the BMS, the backup operation is performed individually to distribute potential risks caused by malfunction of the system.  Azbil Corporation’s controller Infilex series: Infilex is named for “Infinity” and “Flexible”.
  • Page 2: Safety Instructions

    This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil Corporation’s sales representative.
  • Page 3: System Configurations

    AB-6529 System Configurations  Infilex GD integrated into BMS: savic-net (with Web browser) Client PC  BACnet NC-bus (Max. 25 units and 500 m, but extendable up to 1000 m with the repeater module.)  Infilex SAnet (for Intelligent Component Series devices) SAnet ...
  • Page 4: Basic Specifications

    AB-6529 Specifications Basic specifications Item Specification Rated voltage 100 V AC to 240 V AC, 50 Hz/60 Hz Allowable voltage 85 V AC to 264 V AC, 50 Hz/60 Hz range Power supply Power shutdown 80 V AC or less detection Power consumption 40 VA...
  • Page 5 AB-6529 I/O module Item Wiring Wiring length  Temperature input JIS IV, JIS CVV, KPEV 100 m 1.25 mm  Voltage/Current input JIS IV, JIS CVV, KPEV 100 m 1.25 mm  Voltage/Current output JIS IV, JIS CVV, KPEV 100 m 0.9 mm , 1.25mm ...
  • Page 6 AB-6529 Dimensions Figure 3. Dimensions (mm)
  • Page 7: Parts Identification

    AB-6529 Parts Identification LED for operating status S1 switch* Power switch Connector (female) for Data Setter LED for  Do not press the S1 switch. Power ON/OFF Battery holder DIN rail mounting hook Figure 4. Parts identification Table 1. Indication and operation of operating status LED LED indication LED operation Data transmitting...
  • Page 8 AB-6529 Mounting Dimensions DIN rail mounting Fig. 6 shows the mounting dimensions of Infilex GD on the DIN rail. Mount and fix Infilex GD on DIN rail so that it does not fall from the DIN rail. Check that the DIN rail holders of each module are pushed up and fixed on the DIN rail.
  • Page 9 AB-6529 Direct screw mounting Fig. 7 shows the mounting dimensions of Infilex GD directly on a mounting surface, with screws. To mount Infilex GD with screws, the screw tabs (Part No. 83165861-001, with separate order required) are required. Mount and fix Infilex GD on the mounting surface with M4  8 screws. (1 screw tab and 2 screws for 1 basic unit/module are required.) Lengthwise mounting Screw tab Part No.
  • Page 10: Wires Connection

    AB-6529 Wires Connection Tube marker Since Infilex GD adopts a quick-fit screwless terminal block, Connection to the power supply terminal block wires are connected without crimp terminals. Therefore, if Crimp the terminal lugs for the M3 screw terminal block to the normal tube markers are used, they may come off when the wire ends, and connect them to the terminal block.
  • Page 11 AB-6529 Maintenance (Lithium Battery Replacement) Replace the lithium battery for backup (Part No. 83104934-001) every 5 years. IMPORTANT:  Since the remaining battery capacity cannot be checked by measuring the terminal voltage, be sure to replace the battery every 5 years. ...
  • Page 12: Precautions For Use

    Peel off the protective sheet on the top surface of the product before turning ON the power. (See Figs. 10 and 12.) Protective sheet Battery label Figure 12. Batter label and protective sheet Specifications are subject to change without notice. Building Systems Company http://www.azbil.com/ Rev. 8.0 Sep. 2015 AB-6529 (J: AI-6529 Rev. 4.1) Printed in Japan.
