Azbil Infilex AC Series Specifications & Instructions

for Infilex
Model QY5100W0000 (Panel Mount Type)
Model RY5001Q0000 (Integral Type)
General
Operator Panel is a user terminal for data display and
configuration, which can be connected to a remote unit:
Infilex AC, Infilex GC, or Infilex GD. Two types of Operator
Panel are available.
QY5100W0000) is mounted on the door of the control
panel cabinet. Integral type (Model QY5100W0000) is
attached directly to the remote unit or to its I/O module to
integrate with the remote unit.
The Operator Panel can display all the points that the
remote unit has. Points to be modified (by changing their
data configuration) or operated, such as parameters, AO
(analog output), and DO (digital output), can be modified or
operated through the Operator Panel.
By connecting the Operator Panel to a remote unit (Infilex
AC, Infilex GC, or Infilex GD), the remote unit can be
managed not only through client PC of our BMS (building
management system), savic-net
Operator Panel at the installation site.
improves the efficiency of the building management.
Additionally, the Operator Panel facilitates status indication
of the points, and allows a remote unit to be easily used as
standalone.
Features
•
Display of points:
All points of the remote unit can be managed through
the Operator Panel.
The Operator Panel displays the points as follows:
- Group-points mode
Points divided into up to 4 groups are displayed
per group.
- All-points mode
All the points of the remote unit are displayed.
The points that can be modified or operated through the
Operator Panel can be modified or operated in either
mode. Additionally, one point selected among the
ON/OFF points and the alarm points of the remote unit
can be continuously displayed.
•
Operation restriction:
ON/OFF operation and data configuration change
through the Operator Panel can be restricted.
Operator Panel
™
AC / Infilex
Panel mount type (Model
™
FX, but also through the
This greatly
™
GC / Infilex

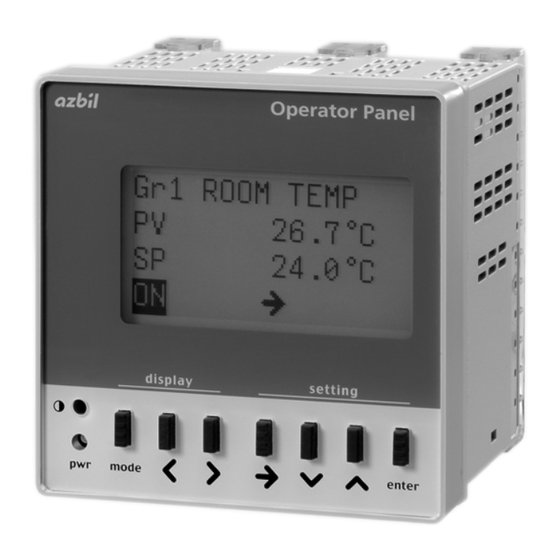

Model QY5100W0000
(Panel mount type)
•
Functions for a standalone remote unit:
When the remote unit connected to the Operator Panel
is standalone, an operation schedule of the point
specified to continuously display its status can be set
through the Operator Panel. Additionally, the Operator
Panel has a manual override function for AO and DO.
•
LCD backlight and LED:
Model QY5100W000 is equipped with an LCD
backlight, and Model RY5001Q0000 is equipped with
a 7 segment LED. Operator Panel thus displays the
data and allows the operators to operate even in a
dark place.
•
CE Marking certified product:
Operator Panel (both panel mount type and integral
type) conforms to all the applicable standards of CE
Marking (Class A).
1
AB-6546
Specifications/Instructions
™
GD
Model RY5001Q0000
(Integral type)
