Summary of Contents for Audio Note CDT-Six / Force

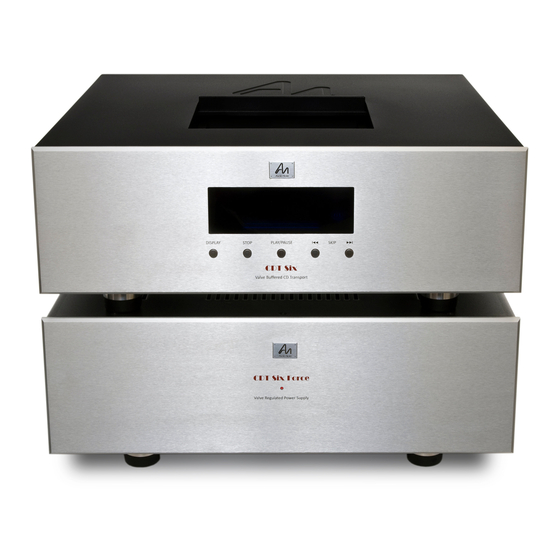

- Page 1 CDT-Six / Force RED BOOK CD TRANSPORT OWNER’S INFORMATION...
-
Page 2: Table Of Contents
CONTENTS 1) IMPORTANT SAFETY INFORMATION 2) CE DECLARATION OF CONFORMITY DISPOSAL POWER REQUIREMENTS 3) INTRODUCTION 4) OVERVIEW 5) UNPACKING AND INSTALLATION 6) CONNECTION 9) LOADING THE DISC OPERATION TROUBLE SHOOTING TECHNICAL SPECIFICATIONS WARRANTY INFORMATION CONTACT INFORMATION... - Page 3 ! IMPORTANT SAFETY INFORMATION ! RISK OF SHOCK OR ELECTROCUTION! INTERNAL OPERATING VOLTAGES ARE LETHAL! Do not remove top cover, unless specifically instructed to do so in the user manual. This unit contains fuses and other safety components in accordance with BS60065 requirements.
-
Page 4: Disposal
BS EN 60065 in accordance with the regulations 73/23/EEC, 89/336/EEC (from 1 January 1997) CE 94 Peter Qvortrup, Director Audio Note (UK) Limited Viscount House Star Road, Star Trading Estate Partridge Green West Sussex RH13 8RA... - Page 5 INTRODUCTION Thank you for purchasing this Audio Note (UK) product. With the correct care it should give you many years of pleasure and enjoyment. Please take the time to read all of the information in this manual before connecting your new component to an electrical supply or your system, to ensure both your safety and satisfaction.
- Page 6 CDT-SIX / FORCE RED BOOK CD TRANSPORT Congratulations on your purchase of the Audio Note (UK) CDT-Six / Force Red Book CD Transport and external power supply. Whilst the rest of the audiophile world continues it delusional and ultimately doomed...
- Page 7 UNPACKING AND INSTALLATION Please take care when unpacking your CDT-Six / Force Transport and power supply. Choose a clean, clear location to unpack the units. Be aware that the Transport and power supply are very heavy; before attempting to unpack or lift the units, check their weight and if necessary use more than one person so that they can be moved safely and easily.
- Page 8 Audio Note (UK) range of interconnects and loudspeaker cables. For further information, please consult your nearest Audio Note (UK) dealer, or alternatively please feel free to contact us directly.
- Page 9 CONNECTION OVERVIEW continued… Power Three umbilical cables are supplied to connect the CDT-Six Transport to the Force Power Supply. Each cable is different, having differing numbers of pins in the connectors at each end of the cable. You will notice that the sockets on the rear of the CDT-Six and Force are also different, and the number of pin apertures in each socket corresponds with the output pins on the three cables.
- Page 10 CONNECTION OVERVIEW continued… Mains The CDT-Six / Force is equipped with a single IEC mains input socket, located on the right hand side of rear panel of the Force Power Supply, when the unit is viewed from behind. Combined with this input socket is the main power switch, and this is used to turn on and off BOTH units.
- Page 11 CONNECTION OVERVIEW continued… Turn on the CDT-Six / Force by using the rocker switch located on the rear panel of the Force Power Supply, above the mains inlet IEC socket. The red ‘power on’ indicator LED located on the front panel should now be illuminated, and the screen located on the front of the CDT-Six should light up.
-
Page 12: Operation
OPERATION There are two ways in which you can operate the CDT-Six Transport; via the buttons located on the front panel or via the supplied remote control handset. The front panel buttons are as follows: - PLAY / PAUSE Press this button to play a disc. Pressing this button again will pause playback. - Page 13 PLAY / PAUSE STOP The CDT-Six Remote Handset is NOT SUPPLIED with batteries. Your Audio Note (UK) Dealer will be happy to supply you with the appropriate batteries, free of charge, or alternatively, please purchase them (high quality AA batteries are recommended) and fit into the handset before operating the remote control.
- Page 14 OPERATION continued… Programming track playback: - You may select a number of tracks and store them in the memory in the desired sequence. The player will then play back only your selection of tracks in the selected order. Press the MEMORY button. 'MEMORY' will appear on the display. Press the CD SKIP or numbered buttons to select the desired track to be stored.
- Page 15 As the unit “beds in” the sound will become increasingly smoother, detailed and open. Once the CDT-Six / Force has “bedded in” a warm up time of approximately 30 to 45 minutes is required each time the unit is switched on before optimum sonic performance is reached.
-
Page 16: Trouble Shooting
However, if the problem continues, please contact your Audio Note (UK) Dealer to discuss servicing / repair, if required. Alternatively, please feel free to contact us... -
Page 17: Technical Specifications
TECHNICAL SPECIFICATIONS 3 beam laser OPTICAL PICK UP SEMI-CONDUCTOR LASER 780 nm VALVE COMPLEMENT 1 x ECL82 1 x 6X5G 1 x 90C1 1 x EF800 UNIT WEIGHT CDT-SIX 37.9KG FORCE 23.7KG UNIT DIMENSIONS CDT-SIX 160mm (h) x 445mm (w) x 428mm (d) FORCE 295mm (h) x 320mm (w) x 610mm (d) SHIPPING WEIGHT... -
Page 18: Warranty Information
Audio Note (UK) warrants this product to be free from defects in materials and workmanship for two years from the original date of purchase from an appointed Audio Note (UK) dealer, and agrees to cover the cost of parts and associated labour required to correct such defects, subject to terms & conditions. -
Page 19: Contact Information
CONTACT INFORMATION If in the future your Audio Note (UK) product requires servicing, or if you require technical support or have any questions regarding this or any of our other products, please contact your local Audio Note (UK) dealer. Alternatively, please feel free to contact us directly: -...
