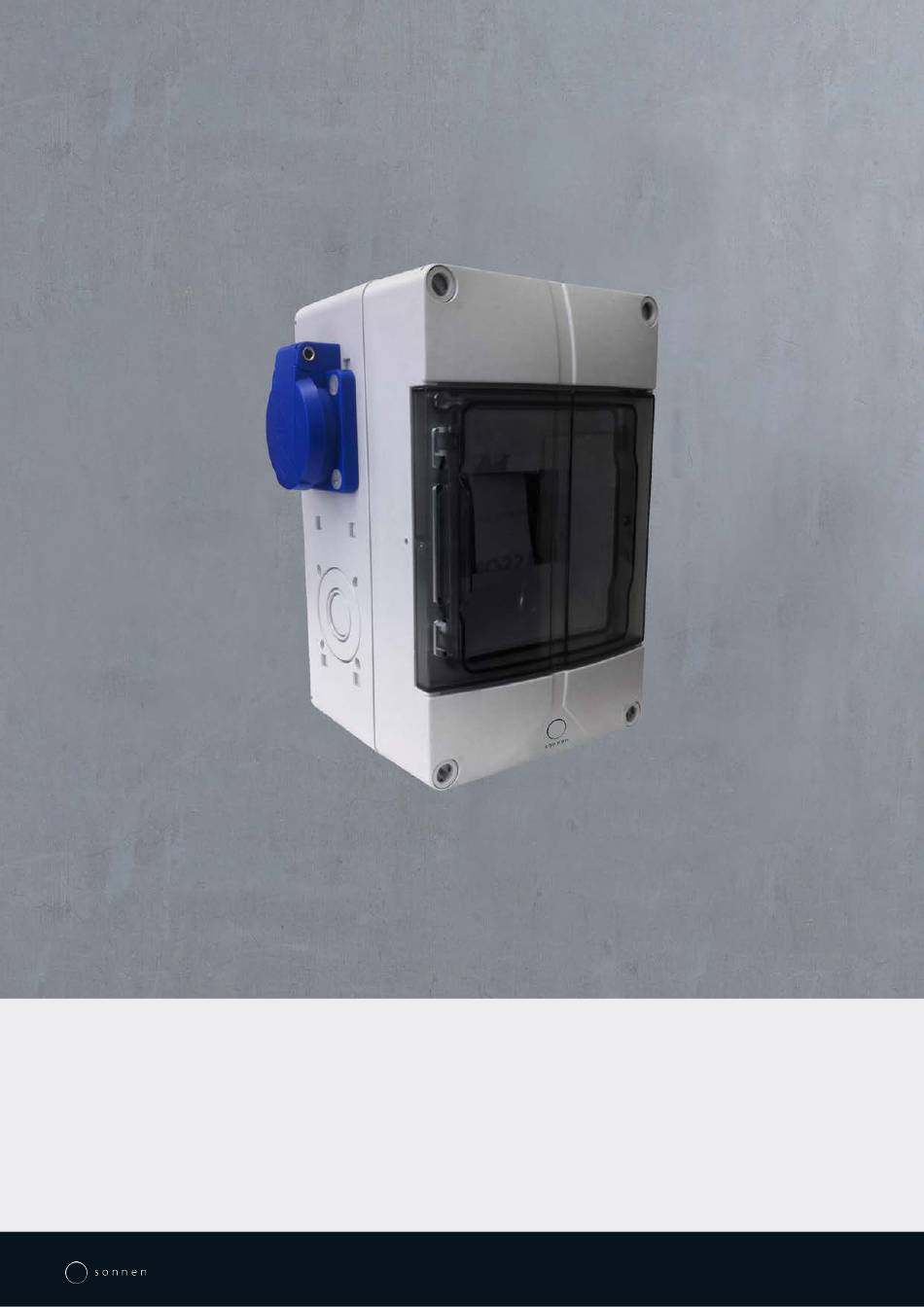

- Page 1 Operating instructions | for operators sonnenProtect 1300 for sonnenBatterie eco 8.2 or eco 9.43 KD-346 • Part no. 22042 • Version X01 info@sonnenbatterie.de • sonnenbatterie.de...
- Page 2 „ Read this documentation carefully before installation / operation. „ Retain this document for reference purposes. Publisher sonnen GmbH Am Riedbach 1 D-87499 Wildpoldsried Service number Email Document Document number Part number 22042 Version Valid for Publication date 19/02/2018 Operating instructions sonnenProtect 1300...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Information about this document .................... 4 Target group of this document .................... 4 1.2 Designations in this document .................... 4 1.3 Explanation of symbols...................... 4 2 Safety .............................. 6 2.1 Intended use .......................... 6 2.2 Requirements for the electrician .................. 6 2.3 Operating the sonnenProtect .................... 6 2.4 Product modifications or changes to the product environment ........ -
Page 4: Information About This Document
1 | Information about this document 1 Information about this document This document describes the operation of the sonnenProtect 1300 in connection with a sonnenBatterie eco 8.2 or eco 9.43 storage system. „ Read this document in its entirety. „ Keep this document in the vicinity of the sonnenBatterie. - Page 5 Information about this document | 1 Symbol Meaning List ● Table 1: Additional symbols KD-346 | 22042 | EN | X01 5 / 20...
-
Page 6: Safety
• The electrician must be a person with a technical knowledge or sufficient experience to enable him/her to avoid dangers which electricity may create. • The company for which the electrician works must be certified by sonnen GmbH. • The electrician must have successfully complete sonnen GmbH certification training for the product. -
Page 7: Product Modifications Or Changes To The Product Environment
Safety | 2 • This device can be used by children from the age of eight (8) years old and individu- als impaired physical, sensory or mental capabilities or individuals with limited know- ledge and/or experience of working with the device, as long as they are supervised or have been trained to safely use the device and understand the resulting risks of do- ing so. -
Page 8: Product Description
-15°C ... 30 °C Max. rel. humidity 90 %, non-condensing Permissible installation altitude 2,000 m above sea level Pollution degree Additional ambient conditions The ambient conditions prescribed for the storage system apply. Table 2: Technical data 8 / 20 Operating instructions sonnenProtect 1300... -
Page 9: System Components
Product description | 3 3.2 System components 3.2.1 System components of the sonnenProtect ON AL Test Reset Illustration 1: System components sonnenProtect 1 sonnenProtect 2 Plug outlet 3 F1.P (Z6) miniature circuit breaker 4 K2.P insulation monitor 3.2.2 Control and display elements ON AL Test K2.P... -
Page 10: Type Plate
(capacitor de-energising time). CE mark. The product meets the requirements of the applicable EU Directives. WEEE mark. The product must not be disposed of in household waste, dispose of it through environmentally friendly collection centres. 10 / 20 Operating instructions sonnenProtect 1300... - Page 11 Product description | 3 Symbol Meaning Observe the documentation. The documentation contains safety information. KD-346 | 22042 | EN | X01 11 / 20...
-
Page 12: Function
Once the backup buffer is used up and the battery’s minimum state of charge has been reached, the plug outlet of the sonnenProtect is no longer supplied with elec- trical power. 12 / 20 Operating instructions sonnenProtect 1300... -
Page 13: Protection Provided By The Insulation Monitor
Function | 4 1 - Total capacity 2 - Available electrical power in grid opera- tion 3 - Backup buffer 4 - Minimum state of charge Illustration 4: Distribution of overall capacity The insulation monitor is activated in emer- gency operation: ‘ON’ LED lights up. The ON AL storage system switches back to grid opera- Test... -
Page 14: Commissioning
ü The storage system is connected to the router of the home network. ü Your laptop or PC also accesses the home network. Proceed as follows to access the web interface of the storage system: „ Enter the address https://find-my.sonnen-batterie.comin the address line of your browser. https://find-my.sonnen-batterie.com... -
Page 15: Setting The Backup Buffer
Commissioning | 5 The following window appears: Illustration 8: Website find-my.sonnen-batterie.com „ Click the button Configure . The login page appears. „ Log in as ‘User’ with the following password: Sonnen2016 The Dashboard page appears. Illustration 9: Dashboard page 5.2.2 Setting the backup buffer Proceed as follows to set what percentage of the capacity of the storage system should be available for the sonnenProtect in the event of a grid outage. - Page 16 5 | Commissioning Illustration 10: Settings page 16 / 20 Operating instructions sonnenProtect 1300...
-
Page 17: Maintenance
Maintenance | 6 6 Maintenance For fault-free, safe, reliable and long-lasting operation of the sonnenProtect, it is essential to carry out regular function checks and cleaning. 6.1 Checking function Maintenance interval Action to be taken „ Check the function of the insulation monitor with help of Every 6 months the Test key (see Control and display elements [P. 9]). -
Page 18: Troubleshooting
IT network configuration. does not exist in an IT network configur- ation. 18 / 20 Operating instructions sonnenProtect 1300... -
Page 19: Uninstallation And Disposal
Uninstallation and disposal | 8 8 Uninstallation and disposal 8.1 Uninstallation DANGER Improper uninstallation of the sonnenProtect Danger to life due to electrocution! „ The sonnenProtect must only be uninstalled by authorised electricians. 8.2 Disposal The sonnenProtect must not be disposed of as domestic waste! „... - Page 20 GmbH Am Riedbach 1 D-87499 Wildpoldsried...
