eYeGrow
Pig group weigher
MANUAL
STU4004

Advertisement

loading

Related Manuals for Fancom eYeGrow

Summary of Contents for Fancom eYeGrow

  • Page 1 Pig group weigher MANUAL STU4004...
  • Page 2 N.B.: The original, authentic version of this manual is the English version produced by PigTek or one of its daughter companies (referred to further as PigTek). Any modifications introduced to this manual by third parties have neither been checked nor approved by PigTek. Modifications are taken by PigTek to include translations into languages other than English and the insertion and/or deletion of text and/or illustrations to/from the original contents.
  • Page 3 PigTek Limited Warranty & Disclaimer of Liability LIMITED WARRANTY (“Warranty”) PigTek Americas, a division of CTB, Inc. warrants new Products manufactured purchased from PigTek to be free from defects in material or workmanship under normal usage and conditions, for One (1) year from the date of installation by the original purchaser PigTek provides for an extension of the aforementioned Warranty period (“Extended Warranty Period”) with respect to certain Product parts (“Component Part”) as set forth in the table below.

  • Page 4: Table Of Contents

    Installing the eYeGrow ..........................2 Mount the eYeGrow ........................2 Connect the eYeGrow and Switch 5-port..................4 Scan the IP adresses of the eYeGrow .................... 5 Using the eYeGrow ............................. 6 Sensor Settings ..........................6 Working with the overview ......................6 Graphs and tables ..........................

  • Page 5: Pigtek Sales & Service Center

    Example of a practical application of the described functionality. Calculation example. Before installing and commissioning the eYeGrow, read the safety instructions, provisions and conditions carefully. This paragraph contains a number of general safety instructions. The installation of the device and remedying of any malfunctions should be performed by a certified electrical installer according to the applicable norms.

  • Page 6: Mount The Eyegrow

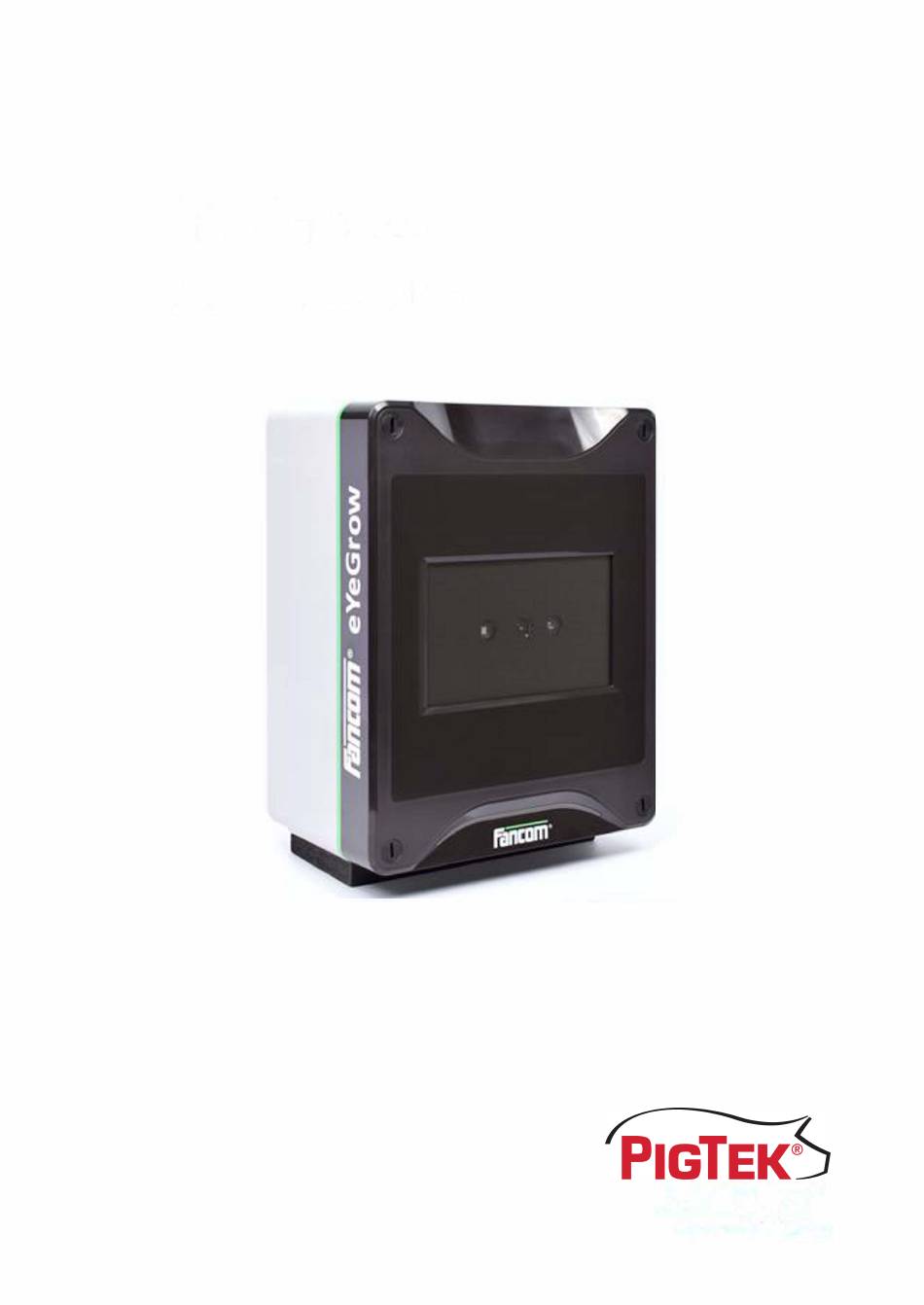

    The eYeGrow is an automatic weight monitor for finishers. A 3D camera installed in the ridge/ceiling of a pen continually monitors and registers the animals so the computer can accurately calculate their weight. This is an entirely automatic and stress-free process for the animals. Manual weighing causes stress which will be reflected by a growth dip.
  • Page 7 • It is recommended to use at least two screw holes to secure the 20" flat. to the angle mount. • The ceiling angle mount piece must be mounted to wood using 3/8" lag bolts only. Any other method of mounting the eYeGrow may void eYeGrow warranty at PigTek's discretion.
  • Page 8 Open all eYeGrow boxes and connect 24V DC cables to the next eYeGrow box. Open the Switch 5-port and connect the 24V DC cable to the first eYeGrow box. Connect each eYeGrow box with an ethernet cable to the Switch 5-port.
  • Page 9 Check the MAC Address on the eYeGrow camera box (00:19:B8:02:xx:xx) and match the IP address to the MAC Address. Go to the internet browser and enter the IP address of the camera. The browser will open and shows the...

  • Page 10: Sensor Settings

    In the Settings menu you can insert a name for the eYeGrow so it will help you recognise the correct eYeGrow. Also the Units Time zone can be chosen. Click Save to save the eYeGrow sensor settings.  Weighing: Readout of the average weight of the compartment in the pig house yesterday.

  • Page 11: Graphs And Tables

    From the overview screen you can open graphs and tables by clicking the buttons. The graphs and tables shows the measured data from the start of the rearing batch. Update table and graph Set the From date and click Update to update the data in the graph and table.

  • Page 12: Sensor Status

    Click Sensor Status in the overview screen to open the sensor status screen. If the eYeGrow is connected to the internet updates will be carried out automatically. If nesessary click Restart sensor to restart the sensor. Cleaning of dust / fly faeces has been undertaken once per rearing batch using a streak free screen cleaner and microfibre cloth.
  • Page 13 Power supply Main voltage 24Vdc (-10% +10%) Maximum power consumption 10VA Ethernet connection Ethernet 100 BASE-T RJ45 Communication speed Max. 100 Mb Ethernet wired Cat 5 (max. 100 meter) Housing Plastic housing ABS UL94 V-0 Protection class IP54 Dimensions (l×w×h) 300×240×140mm Weight (unpacked) 2.4kg...
  • Page 14 Manufacturer hereby declares that the: eYeGrow Complies with the provisions of the: Low voltage directive 2014/35/EU according to NEN-EN-IEC 61010-1: 2010 EMC directive 2014/30/EU Emission according to NEN-EN-IEC 61000-6-3: 2007 Immunity according to NEN-EN-IEC 61000-6-2: 2005 Panningen Date: 13-3-2018 Paul Smits...
