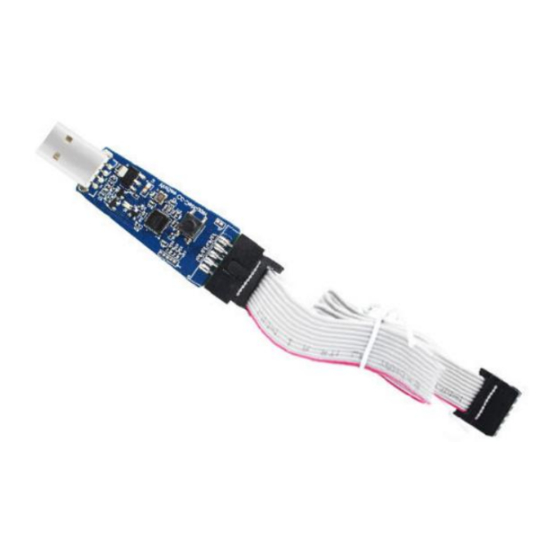

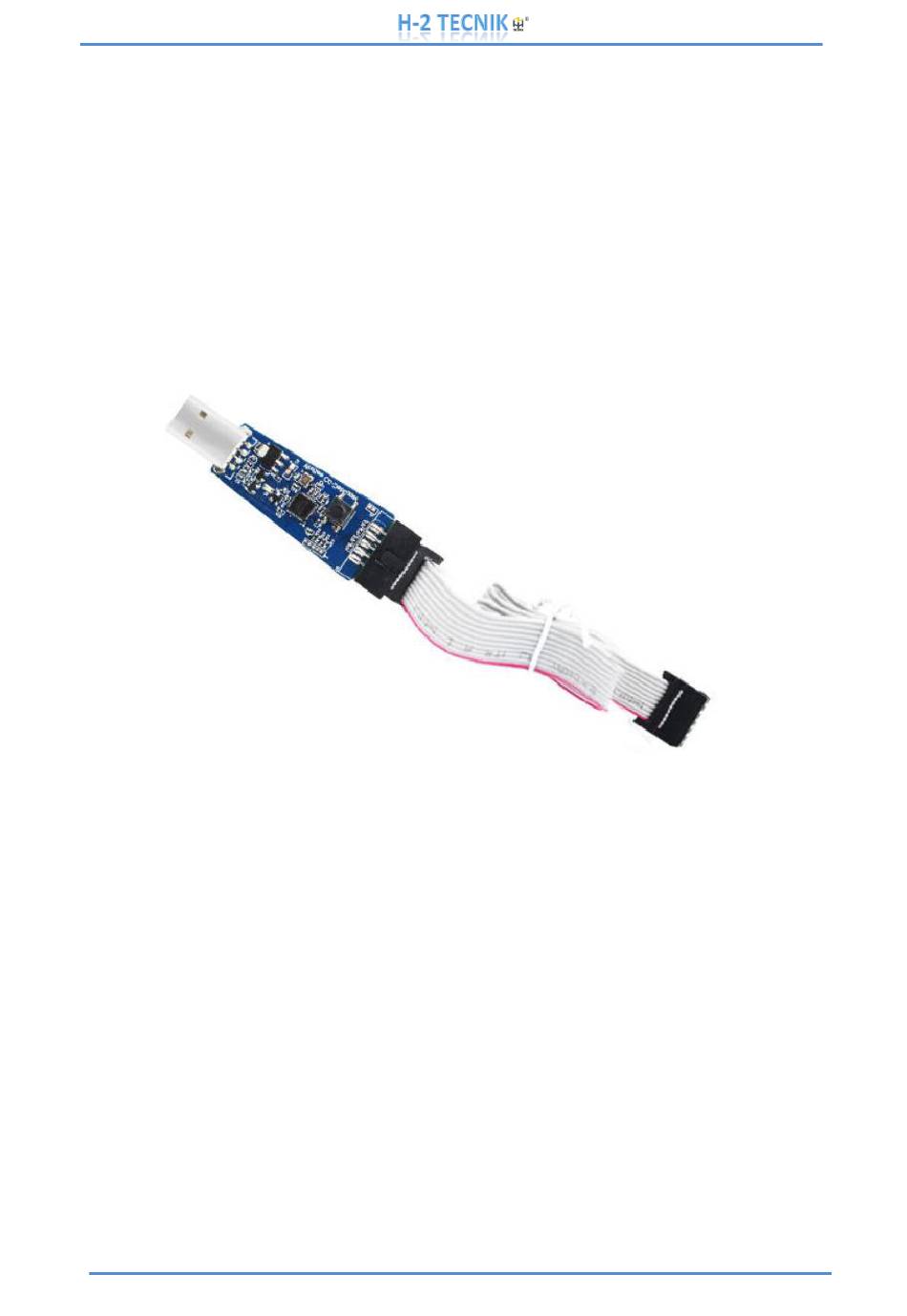

- Page 1 UDL-001 CC2530/CC2540 Firmware Downloader H-2 Technik UG (haftungsbescgränkt) www.h-2technik.com Rhode-Island-Allee 49, Karlsruhe, Germany D-76149 +49 721 6624655/+49 1797087228...
- Page 2 UDL-001 Version Information Version Date Modified By Introduction 02.2017 Wang Release Rhode-Island-Allee 49, Karlsruhe, Germany D-76149 +49 721 6624655/+49 1797087228...
- Page 3 Step 1. Download firmware for BLE Device Monitor from this link. Step 2. Connecting UDL-001 as picture below. Because there is no target chip connected to, the LED on UDL-001 does not turn on. Step 3: Connecting USB BLE Dongle to download adapter as picture below and press reset button.
- Page 4 UDL-001 Step 4: Start Smart Flash Programmer Step 5: Select “Erase, program and verify” and “Perform actions” Rhode-Island-Allee 49, Karlsruhe, Germany D-76149 +49 721 6624655/+49 1797087228...
- Page 5 UDL-001 The download status is showing in a process bar till download finishs. Rhode-Island-Allee 49, Karlsruhe, Germany D-76149 +49 721 6624655/+49 1797087228...
