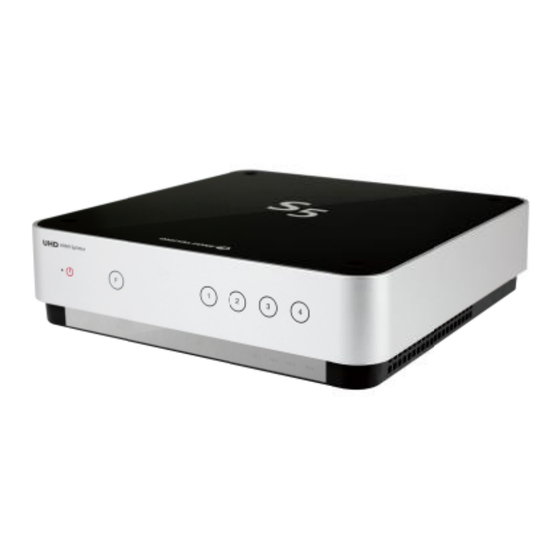

Summary of Contents for DigitalZone S5 Series
- Page 1 Korean...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. - Page 3 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus CAUTION EXPLANATION OF GRAPHICAL SYMBOLS...
- Page 4 Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall not be placed on the apparatus. ※ DigitalZone will not be responsible for any problems caused by using any other adopter we don't provide.
- Page 5 User’s Manual FCC Information (for U.S.A) Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 6: 안전을 위한 주의사항
HDMI Splitter 안전을 위한 주의사항 신체적 위험이나 재산상의 피해를 막기 위한 내용으로 반드시 지켜주시기 바랍니다. 햇빛이 직접 비치거나 추운 곳에서 평평한 곳에 설치해주세요. 사용하지 마세요. 먼지나 물 등이 들어가지 않도록 하세요. 분해하거나 수리, 개조하지 마세요. 진동이 심한 곳이나 자석류가 있는 곳에서 제품... -
Page 7: Table Of Contents
User’s Manual Contents 안전을 위한 주의사항 ······································································ 목차 ······························································································ 각 부분의 이름 ··············································································· 제품 구성물 ··················································································· 10 리모컨 버튼의 이름과 기능 ······························································ 11 리모컨 건전지 삽입하기 ·································································· 11 연결하기 ······················································································· 12 HDMI Splitter 사용법 ······································································· 13 문제해결하기 ················································································· 14 USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤) ······························· 14 EDID Emulation Mode 선택... -
Page 8: 각 부분의 이름
HDMI Splitter 각 부분의 이름 앞면 뒷면 (HVS-5204) 뒷면 (HVS-5208) - Page 9 User’s Manual 뒷면 (HVS-5412) 뒷면 (HVS-5416)
-
Page 10: 제품 구성물
HDMI Splitter 제품 구성물 사용 전에 내용물이 빠짐없이 들어있는지 확인하세요. ※ 제품구성은 사전에 공지 없이 변경될 수 있습니다. ※ 당사에서 제공하는 아답터를 반드시 사용하시기 바랍니다. 다른 아답터를 사용하여 발생되는 문제점에 대해서는 당사가 책임을 지지 않습니다. ※ 구성물 이외에 추가 물품은 별도로 구매 하시려면 제조사 또는 구매처에 문의 하시기 바랍니다. -
Page 11: 리모컨 버튼의 이름과 기능
User’s Manual 리모컨 버튼의 이름과 기능 ※ 리모컨은 본체에서 3~5M 거리에 좌우상하 60도에서 작동합니다 ※ 본체와 리모컨의 거리가 멀거나 다른 물체에 가려 사용이 불가능 할 경우 외부 리모컨 수신부를 이용하여 작동 시킬 수 있습니다. - “외부 리모컨 수신부” 삽입전에는 본체의 전원을 꺼 주세요. 리모컨... -
Page 12: 연결하기
HDMI Splitter 연결하기 HDMI 케이블로 연결하는 방법입니다. (ex. 입력: Blu-ray Player, FHD/UHD Stream Generator, 출력: FHD/UHD TV) ※ 2160p/30Hz, 1080p/50~60Hz, 720p/1080i/50~60Hz/Deep Color, 720p/1080i/1080p/100~120Hz(High Refresh Rate) 를 지원하기 위해서는 High speed HDMI Cable 을 반드시 사용하시기 바랍니다. ※ 영상의 분배를 위해 별도의 케이블이 필요하시면 제조사 또는 구매처에 문의하시기 바랍니다. -
Page 13: Hdmi Splitter 사용법
User’s Manual HDMI Splitter 사용법 1. HDMI Splitter의 전원 스위치를 켭니다. 2. 사용 하려는 영상입력기기(Blu-ray Player or FHD/UHD Set-top box, etc.)의 전원을 켭니다. 3. 디스플레이 기기(FHD/UHD TV etc)의 전원을 켭니다. 4. 사용 하려는 영상출력 기기와 연결된 입력 번호를 선택합니다. HDMI Splitter 전면부의 “Input1~Input4” 버튼을 누르면 됩니다. 4K(2160p)급의... -
Page 14: 문제해결하기
HDMI Splitter 문제해결하기 1. HDMI 전면부의 LED 가 켜져 있는지 확인 하시기 바랍니다. 2. HDMI 와 연결된 기기들의 전원 케이블이 제대로 연결되어 있는지 확인 합니다. 좀 더 자세한 사항은 www.digitalzone.co.kr 에서 확인 하시기 바랍니다. & RS-232 (펌웨어 업그레이드) (외부 컨트롤) USB : 펌웨어... -
Page 15: Edid Emulation Mode 선택 방법
User’s Manual EDID Emulation Mode 선택 방법 1. Dynamic mode Function Mode Summary Description Number Safety Normal 모든 출력 장치의 교집합을 취함 configuration 모든 출력 장치 중 Audio부분은 최대값 MaxAudio Max audio 을 취함 Copy 1st HDMI Port 첫 번째 출력장치의 EDID를 사용함 MaxAll Max all capability 모든... -
Page 16: Static Mode
HDMI Splitter 2. Static mode Function Mode Summary Description Number Audio : 2Ch, PCM 720P Force 720p Video : 720p/50,60Hz Audio : 2Ch, PCM 1080i Force 1080i Video : 1080i/50,60Hz Audio : 2Ch, PCM 1080p Force 1080p Video : 1080p/50,60Hz Audio : 2Ch, PCM Force 4K Video : 2160p/30Hz... -
Page 17: 고장신고 전 확인 사항
User’s Manual 고장신고 전 확인 사항 (Splitter Trouble Shooting Guide) - 서비스를 의뢰 하기 전에 아래 내용을 확인 부탁 드립니다. 상태 : TV화면이 보이지 않거나, TV화면이 깜박일 때 확인사항 조치사항 제품과 HDMI Cable이 1) Cable을 재 연결 하세요. 연결 되어 있습니까? 2) Cable을... -
Page 18: 제품 규격
HDMI Splitter 제품 규격 2조 (Model: HVS-5204 / HVS-5208) 입력 (Input) 4조 (Model: HVS-5412 / HVS-5416) 4조 (Model: HVS-5204), / 8조 (Model: HVS-5208) 출력 (Output) 12조 (Model: HVS-5412) , 16조 (Model: HVS-5416) 리모컨 RS232 Remote PC/ Device POWER (전원) : On / Off 표시 SYNC : 입력... - Page 19 User’s Manual for the troubleshooting English...
-
Page 20: Important Safety Instruction
Place the product at proper ventilation area. Do not place heavy items on the product. © Copyright 2014, Digitalzone Co., Ltd. All rights reserved. Read these operating instructions carefully before using the product. Follow the safety instructions on the unit and the safety precautions listed in the... -
Page 21: Control & Connection Options
User’s Manual Controls & Connection Options Front Rear (HVS-5204) Rear (HVS-5208) - Page 22 HDMI Splitter Rear (HVS-5412) Rear (HVS-5416)
-
Page 23: Packages And Accessories
※ Contents are subject to change without prior notice. ※ Additional accessories should be purchased separately. ※ Digitalzone will not be responsible for any problems caused by using any other adopter we don't provide. ※ HDMI cable is optional accessories. -
Page 24: Remote Control Unit
HDMI Splitter Remote Control Unit ※ It’s possible to use a remote controller within 3~5m, 60 degree of angle scope. ※ You can use an extension receiver for a remote controller if it’s far away from the system. The receiver in the system will not work when the extension reciever is connected. - Turn the unit off before connecting the extension reciever. -
Page 25: Connection
User’s Manual Connection How to connect devices with splitter (- Input: Blu-ray Player, FHD/UHD Stream Generator, -Output: FHD/UHD TV) ※ You must use High Speed HDMI cable if you like to use Deep Color, High refresh rate and resolution above 2160p/30Hz. (720p/1080i/50~60Hz/Deep Color, 720p/1080i/1080p/100~120Hz High Refresh Rate) ※... -
Page 26: How To Use Hdmi Splitter
USB : You can upgrade firmware by USB easily when new firmware is released.( FAT32 file system is only available in USB) RS-232: RS-232 is capable of external control via serial port provided control protocol by Digitalzone. Remark: The SDK will be released in www.dzonei.com. Please check more detailed information in... -
Page 27: How To Use Edid Emulation Mode
User’s Manual How to use EDID Emulation Mode 1. Dynamic mode Function Mode Summary Description Number Safety Normal Intersection of all those display devices configuration Video : Intersection of all those display devices MaxAudio Max audio Audio: it takes maximum value. Follow EDID information of the display Copy 1st HDMI Port... -
Page 28: Static Mode
HDMI Splitter 2. Static mode Function Mode Summary Description Number Audio : 2Ch, PCM 720P Force 720p Video : 720p/50,60Hz Audio : 2Ch, PCM 1080i Force 1080i Video : 1080i/50,60Hz Audio : 2Ch, PCM 1080p Force 1080p Video : 1080p/50,60Hz Audio : 2Ch, PCM Force 4K Video : 2160p/30Hz... -
Page 29: Troubleshooting Guide For Splitters
3) Check if the AC power is connected properly. LED” on the front 4) Replace the adapter. blinking or off? Is the adapter 1) Use an adapter supplied by DIGITALZONE only. enclosed with the product supplied by DIGITALZONE? Are the video source... -
Page 30: Specification
Specification 2EA (Model: HVS-5204 / HVS-5208) Input 4EA (Model: HVS-5412 / HVS-5416) 4EA (Model: HVS-5204), 8EA (Model: HVS-5208) Output 12EA (Model: HVS-5412) , 16EA (Model: HVS-5416) Remote Control RS232 Remote PC/ Device POWER : On / Off SYNC : Indication of valid input signal HDCP: HDCP being used User Interface FE: Function selection status...
