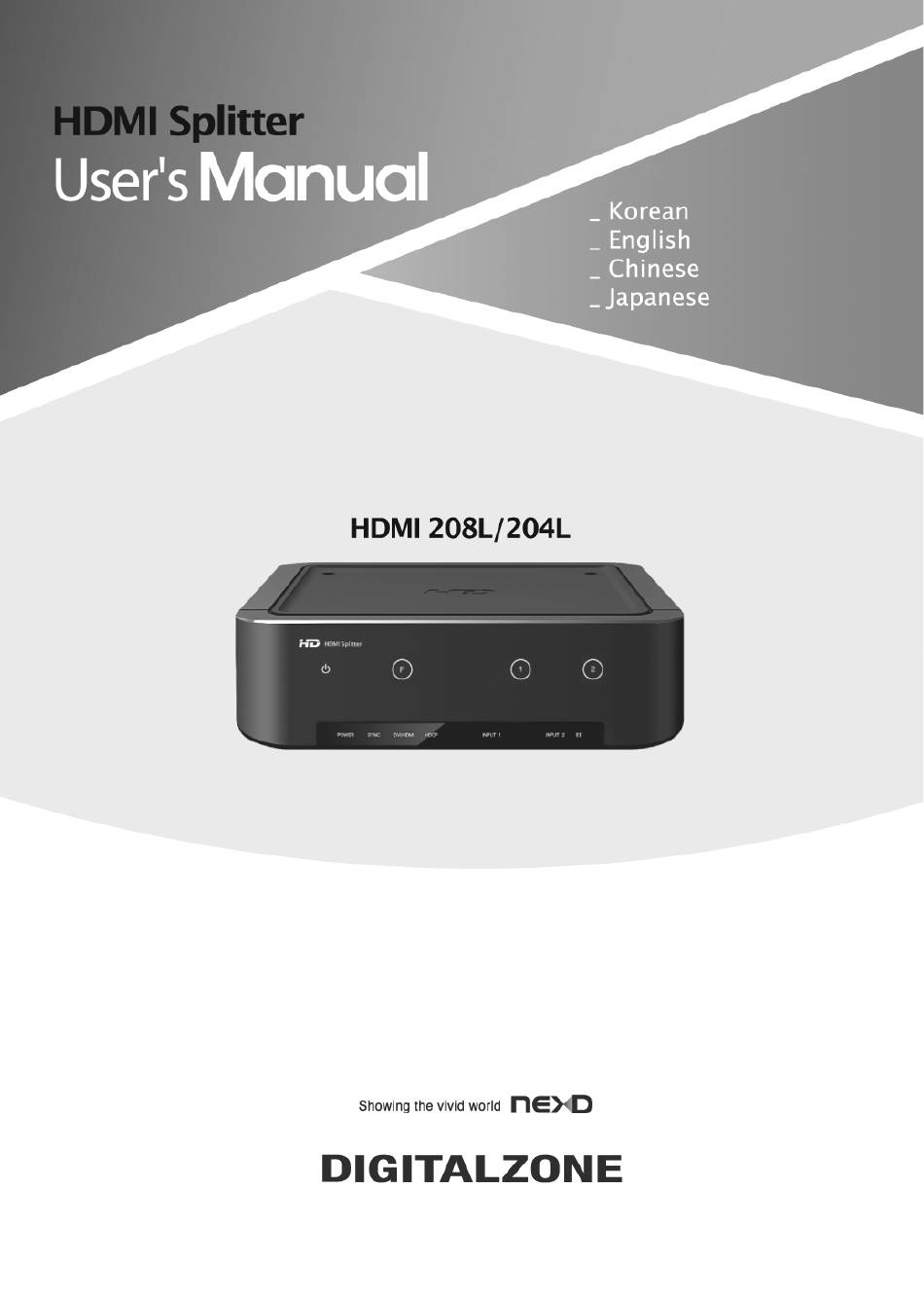

Summary of Contents for DigitalZone HDMI 208L
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions. - Page 3 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus CAUTION EXPLANATION OF GRAPHICAL SYMBOLS...
- Page 4 Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall not be placed on the apparatus. ※ DigitalZone will not be responsible for any problems caused by using any other adopter we don't provide.
- Page 5 User’s Manual FCC Information (for U.S.A) Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 6: 안전을 위한 주의사항
NEXD HDMI Splitter 안전을 위한 주의사항 신체적 위험이나 재산상의 피해를 막기 위한 내용으로 반드시 지켜주시기 바랍니다. 평평한 곳에 설치해주세요. 햇빛이 직접 비치거나 추운 곳에서 사용하지 마세요. 먼지나 물 등이 들어가지 않도록 하세요. 분해하거나 수리, 개조하지 마세요. 제품 위에 물컵 등을 얹어 놓지 마세요. 진동이... -
Page 7: Table Of Contents
User’s Manual Contents 안전을 위한 주의사항 ····························································································· 목차·························································································································· 각 부분의 이름 ········································································································ 제품 구성물 ············································································································· 리모컨 버튼의 이름과 기능 ·················································································· 리모컨 건전지 삽입하기 ······················································································· 연결하기 ················································································································ NEXD HDMI Splitter 사용법 ·················································································· 문제해결하기 ········································································································· CEC, USB (펌웨어 업그레이드) & RS-232 (외부 컨트롤) ····································· EDID Emulation Mode 선택... -
Page 8: 각 부분의 이름
NEXD HDMI Splitter 각 부분의 이름 앞면 뒷면 (208L) 뒷면 (204L) -
Page 9: 제품 구성물
User’s Manual 제품 구성물 사용 전에 내용물이 빠짐없이 들어있는지 확인하세요. ※ 제품구성은 사전에 공지 없이 변경될 수 있습니다. ※ 당사에서 제공하는 아답터를 반드시 사용하시기 바랍니다. 다른 아답터를 사용하여 발생되는 문제점에 대해서는 당사가 책임을 지지 않습니다. ※ 이 기기는 업무용(A 급)으로 전자파적합등록을 한 기기이오니 판매자 또는 사용자는 이... -
Page 10: 리모컨 버튼의 이름과 기능
NEXD HDMI Splitter 리모컨 버튼의 이름과 기능(옵션) ※ 리모컨은 본체에서 3~5M 거리에 좌우상하 60도에서 작동합니다 ※ 본체와 리모컨의 거리가 멀거나 다른 물체에 가려 사용이 불가능 할 경우 외부 리모컨 수신부를 이용하여 작동 시킬 수 있습니다. - “외부 리모컨 수신부” 삽입전에는 본체의 전원을 꺼 주세요. 리모컨... -
Page 11: 연결하기
User’s Manual 연결하기 HDMI 케이블로 연결하는 방법입니다. (ex. 입력: Blu-ray Player, HD Stream Generator, 출력: PDP, LCD TV) ※ 1080p/50~60Hz 이상의 해상도, 720p/1080i/50~60Hz/Deep Color, 720p/1080i/1080p/100~120Hz(High Refresh Rate) 를 지원하기 위해서는 High speed HDMI Cable(Version 1.3)을 반드시 사용하시기 바랍니다. ※ 영상의 분배를 위해 별도의 케이블이 필요하시면 제조사 또는 구매처에 문의하시기 바랍니다. -
Page 12: Nexd Hdmi Splitter 사용법
사용하는 경우 Output 단자와 연결된 디스플레이 기기는 HD급 고화질 TV의 HD급 입력 단자 이어야 합니다. 문제해결하기 1. NEXD HDMI 전면부의 LED 가 켜져 있는지 확인 하시기 바랍니다. 2. NEXD HDMI 와 연결된 기기들의 전원 케이블이 제대로 연결되어 있는지 확인 합니다. 좀 더 자세한 사항은 www.digitalzone.co.kr 에서 확인 하시기 바랍니다. -
Page 13: Cec, Usb (펌웨어 업그레이드) & Rs-232 (외부 컨트롤)
3. RS-232 : 당사의 컨트롤 프로토콜이 제공하는 시리얼 포트를 통해 외부 컨트롤이 가능합니다. SDK 는 당사 홈페이지 www.digitalzone.co.kr 을 통해 출시될 예정입니다. 다운로드와 사용법에 대한 좀 더 자세한 정보를 원하시면 www.digitalzone.co.kr 을 확인해 주시기 바랍니다. EDID Emulation Mode 선택 방법 1. Dynamic mode Function Mode Summary... -
Page 14: Static Mode
NEXD HDMI Splitter 2. Static mode Function Mode Summary Description Number Audio : 2Ch, PCM 1080i Force 1080i Video : 1080i/50,60Hz Audio : 2Ch, PCM 1080p Force 1080p Video : 1080p/50,60Hz 설정 방법 1.전면부의 F키를 더블클릭 합니다 2.기존에 설정된 모드가 깜박인 후 input1~2까지 전체가 깜박입니다. 3.1~2번... -
Page 15: 고장신고 전 확인 사항
User’s Manual 고장신고 전 확인 사항 (Splitter Trouble Shooting Guide) 서비스를 의뢰 하기 전에 아래 내용을 확인 부탁 드립니다. 상태 : TV화면이 보이지 않거나, TV화면이 깜박일 때. 확인사항 조치사항 제품과 HDMI Cable이 연결 1) Cable을 재 연결 하세요. 되어 있습니까? 2) Cable을... -
Page 16: 제품 규격
NEXD HDMI Splitter 제품 규격 입력 (Input) 2조 HDMI Type A 출력 (Output) 8조 Default (Model: HDMI 208L) 4조 Optional (Model: HDMI 204L) IR (옵션) 사용자 리모컨 인터페이스(User RS232 Remote PC/ Device Interface) LED 표시등 POWER (전원) : On / Off 표시... - Page 17 User’s Manual English...
-
Page 18: Important Safety Instruction
Do not place heavy items on the product. area. © Copyright 2011, DigitalZone Co., Ltd. All rights reserved. Read these operating instructions carefully before using the product. Follow the safety instructions on the unit and the safety precautions listed in the... -
Page 19: Control & Connection Options
User’s Manual Controls & Connection Options Front Rear (208L) Rear (204L) -
Page 20: Packages And Accessories
(Grade A), which acquired EMC (Electronicmagnetic Capability), and it is intended to be used in areas, except for a domestic purpose. ※ DigitalZone will not be responsible for any problems caused by using any other adopter we don't provide. -
Page 21: Remote Control Unit
User’s Manual Remote Control Unit ※ It’s possible to use a remote controller within 3~5m, 60 degree of angle scope. ※ You can use an extension receiver for a remote controller if it’s far away from the system. The receiver in the system will not work when the extension reciever is connected. - Turn the unit off before connecting the extension reciever. -
Page 22: Connection
NEXD HDMI Splitter Connection How to connect devices with splitter (- Input: Blu-ray Player, HD Stream Generator -Output: PDP, LCD TV) ※ You must use High Speed HDMI cable supporting HDMI 1.3 if you like to use Deep Color, High refresh rate and resolution above 1080p50~60hz. (720p/1080i/50~60Hz/Deep Color, 720p/1080i/1080p/100~120Hz High Refresh Rate) Please ask manufacturer or store you purchased, if you need additional HDMI cables ※... -
Page 23: How To Use Nexd Hdmi Splitter
2. USB : You can upgrade firmware by USB easily when new firmware is released. 3. RS-232 : RS-232 is capable of external control via serial port provided control protocol by DigitalZone. 4. Remark: The SDK will be released in www.dzonei.com. Please check more detailed information in www.dzonei.com... -
Page 24: How To Use Edid Emulation Mode
NEXD HDMI Splitter How to use EDID Emulation Mode 1. Dynamic mode Function Mode Summary Description Number Safety Normal Intersection of all those display devices configuration Follow EDID information of the display Copy 1st HDMI Port device connected 1 HDMI output. How to set Dynamic mode. -
Page 25: Troubleshooting Guide For Splitters
3) Check if the AC power is connected properly. or off? 4) Replace the adapter. Is the adapter enclosed with 1) Use an adapter supplied by DIGITALZONE only. the product supplied by DIGITALZONE? Are the video source 1) Directly connect the video source equipments (Generator and equipments (Generator and Blu-Ray) to the TV to see if they work normally. -
Page 26: Specification
NEXD HDMI Splitter Specification Input HDMI Type A Default (Model: HDMI 208L) Output Optional (Model: HDMI 204L) Remote Control IR (Option) RS232 Remote PC/ Device POWER : On / Off SYNC : Indication of valid input signal HDMI: Input signal is HDMI or DVI... -
Page 27: Chinese
User’s Manual Chinese... - Page 28 720p/1080i/1080p/100~120Hz High Refresh Rate) 解决问题 1. 请确认NEXD HDMI 前端的 LED 是否打开; 2. 请确认连接于NEXD HDMI 的机器的电源线是否连接正确。欲了解更多详情， 请在www.dzonei.com 进行确认。 CEC, USB (固定软件升级) & RS-232 (遥远控制） 1. CEC : 在 www.dzonei.com参考. 2. USB : 有新固定软件用USB升级 3. RS-232 : 跟DigitalZone提供议定命令语用RS-232遥远控制 参考: 新固定软件及 RS-232议定命令语在 www.dzonei.com下载 ※...
- Page 29 User’s Manual EDID Emulation Mode 的选择方法 1. Dynamic mode Function Mode Summary Description Number Safety Normal 选择所有输出设备的交集 configuration Copy 1st HDMI Port 使用第一个输出设备的EDID 设置方法 1.前端的F键按下2秒以上； 2.现有已设定模块闪烁以后，直到input1~2全部闪烁； 3.从1~2键中进行选择； 4.依次选择1键->F1键 2键->F2键 5.所选 Function Number(input1~input2)LED闪烁，设置到位。...
- Page 30 NEXD HDMI Splitter 2. Static mode Function Mode Summary Description Number Audio : 2Ch, PCM 1080i Force 1080i Video : 1080i/50,60Hz Audio : 2Ch, PCM 1080p Force 1080p Video : 1080p/50,60Hz How to set Static mode. 1. 双击前端的F键； 2. 现有已设定模块闪烁以后，直到input1~2全部闪烁； 3.
- Page 31 User’s Manual 例如：连接 (-输入: Blu-Ray Player, HD Stream Generator - 输出: PDP, LCD TV)
- Page 32 NEXD HDMI Splitter 问题.对策(分流器故障分析指南) 顾客朋友，在您申请服务之前，请先阅读以下须知事项。 状态：TV 画面不能显示或者不停闪动时 确认事项 解决对策 请确认产品和 HDMI Cable（HDMI 线 1）请将电线正确地再连接一次。 材）是否连接完好。 2）换一根电线，重新连接一次。 请确认产品前方显示 1）请确认电源适配器是否连接完好。 “POWER, SYNC, DVI/HDMI, INPU 2）请按一下产品前面的“电源”按钮。 T, EE LED（电源,同步，DVI/HDMI， 3）请确认 AC 电源是否连接完好。 输入，EE LED）的 LED 灯是否关 4）请换一个新的适配器。 着，或者是否在闪烁。 1）请务必使用我司提供的适配器 请确认是不是我司配套提供的指定适 配器。 1）画像输入设备（发电机，蓝光）是否有和 TV 直接连 请确认影像设备（发电机，蓝光）是...
- Page 33 User’s Manual NEXD HDMI Splitter 规格 Input HDMI Type A Output Default (Model: HDMI 208L) Optional (Model: HDMI 204L) User Interface Remote Control RS232 Remote PC/ Device POWER : On / Off SYNC : Indication of valid input signal HDMI: Input signal is HDMI or DVI HDCP: HDCP being used.
-
Page 34: Japanese
NEXD HDMI Splitter Japanese... - Page 35 User’s Manual NEXD HDMI Splitter 使用方法 1. NEXD HDMI 電源スイッチをつけます。 2. 使用したい映像入力機器(Blu-ray Player or HD Set-top box, etc.) の電源をつけます。 3. ディスプレイ機器(TV or Plasma TV, etc.)の電源をつけます。 4. 使用したい映像出力機器と接続されている入力番号を選択します。 NEXD HDMI 前面部の“Input1~Input2”ボタンを押します。 HD(1080p)用の高画質映像出力機器(Blu-ray Player, HD set top boxes)を接続して使用する場合、出力端子に接続されたディスプレイ 機器はHD用高画質テレビのHD用入力端子でなければなりません。 問題解決 1. NEXD HDMI 前面部のLED がつけてあるかどうかご確認ください。 2.
- Page 36 NEXD HDMI Splitter EDID Emulation Mode 選択方法 1. Dynamic mode Function Mode Summary Description Number Safety Normal すべての出力装置の共通集合を取る。 configuration Copy 1st HDMI Port 1番目出力装置のEDIDを使う。 設定方法 1.前面部のFキーを2秒以上押します。 2.既存に設定されたモードがちらついた後、 input1~2まで全体がちらつきます。 3.1~2番の中で選択します。 4.1番->F1番 2番->F2番 番に選択されます。 5.選択したFunction Number(input1~input2)LEDがちらついて設定されます。...
- Page 37 User’s Manual 2. Static mode Function Mode Summary Description Number Audio : 2Ch, PCM 1080i Force 1080i Video : 1080i/50,60Hz Audio : 2Ch, PCM 1080p Force 1080p Video : 1080p/50,60Hz 設定方法 1.前面部のFキーをダブルクリックします。 2.既存に設定されたモードがちらついた後、 input1~2まで全体がちらつきます。 3.1~2番の中で選択します。 4.1番->F3番 2番->F4番 番に選択されます。 5.選択したFunction Number(input1~input2)LEDがちらついて設定されます。 1.
- Page 38 NEXD HDMI Splitter 接続 HDMI ケーブルで接続する方法です。 (ex 入力： Blu-ray Player, HD Stream Generator、出力： PDP, LCD TV) ※ 1080p/50~60Hz 以上の解像度、720p/1080i/50~60Hz/Deep Color、720p/1080i/1080p/100~120Hz(High Refresh Rate)を支援するためには、High Speed HDMI ケーブルを必ずお使いください。 ※ 映像の分配のために別のケーブルが必要であれば、製造メーカーまたは購入先までお問 い合わせください。...
- Page 39 User’s Manual 問題解決(Splitter Trouble Shooting Guide) ・サービス依頼の前に次の内容を必ずご確認ください。 状態：テレビ画面が見えない場合やテレビ画面が点滅する場合 確認事項 措置事項 製品が HDMI Cable に接続さ 1) Cable をもう一度正しく接続してください。 れていますか? 2) Cable を交換して接続してください。 製品の前面の「POWER，SYN 1) 電源アダプタが接続されているか確認してください。 C，DVI/HDMI，INPUT，EE LE 2) 製品の前面にある「Power」ボタンを押してください。 D」の LED ライトが消えてい 3) AC 電源が接続されているか確認してください。 たり、点滅していますか? 4) アダプタを交換してください。 1) 付属のアダプタを使用してください。 付属のアダプタですか? 画像ソース装置(Generato, 1) 画像ソース装置(Generator，Blu-Ray)とテレビを直接接続して...
- Page 40 NEXD HDMI Splitter 製品規格 入力 (Input) 2組 HDMI Type A 出力 (Output) 8組 Default (Model: HDMI 208L) 4組 Optional (Model: HDMI 204L) ユーザーインタ リモコン ーフェース RS232 Remote PC/ Device (User LED 表示灯 POWER (電源) : On / Off 表示 Interface) SYNC : 入力信号有無表示...
