Sharp Energy SUN FLUX SEI 01 User Manual

On/off grid pv solar hot water controller
Hide thumbs

Advertisement

Table of Contents

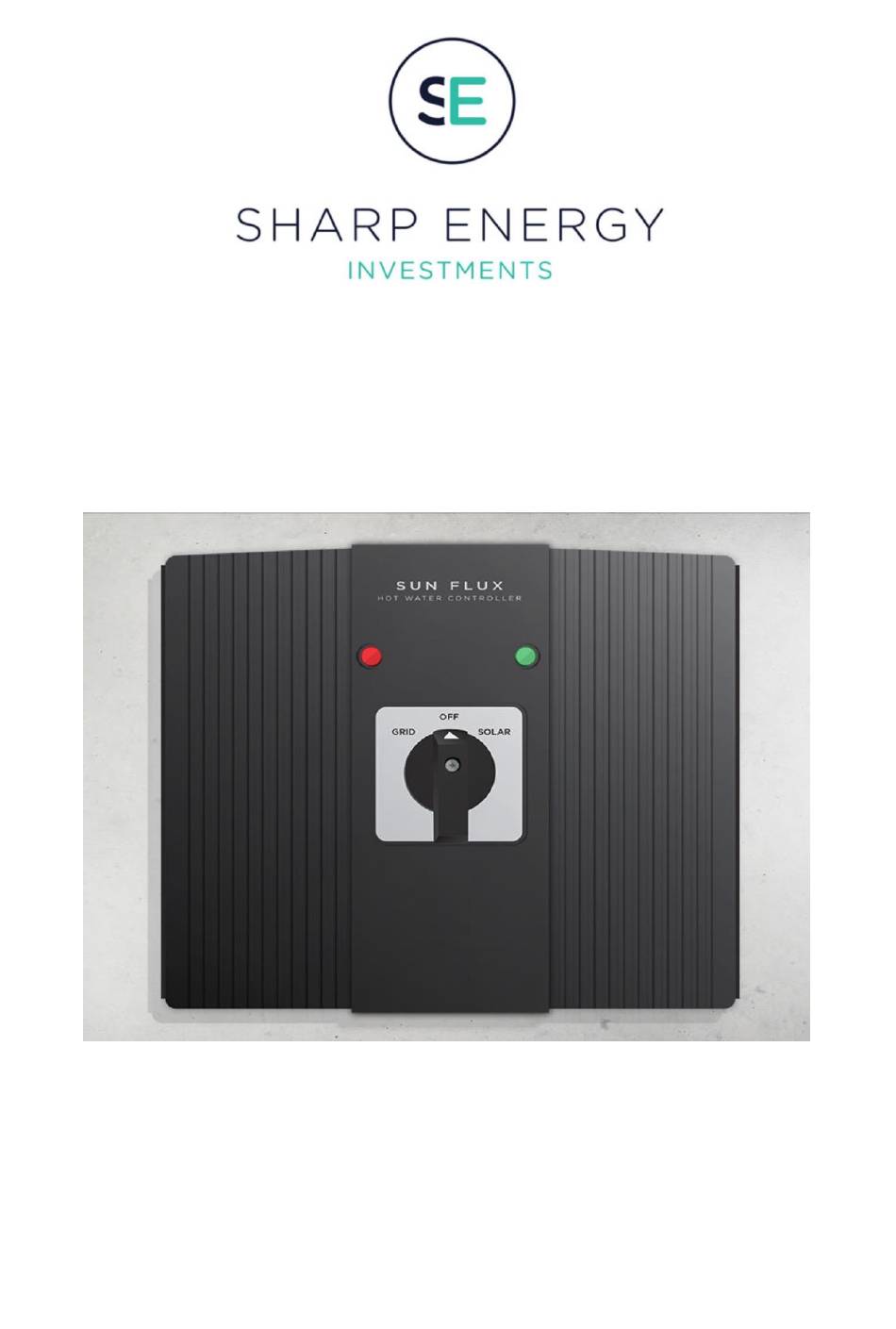

User Manual
SUN FLUX
Model SEI 01
On/Off Grid PV Solar Hot Water Controller
-1-

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUN FLUX SEI 01 and is the answer not in the manual?

Questions and answers

Related Manuals for Sharp Energy SUN FLUX SEI 01

Summary of Contents for Sharp Energy SUN FLUX SEI 01

  • Page 1 User Manual SUN FLUX Model SEI 01 On/Off Grid PV Solar Hot Water Controller...
  • Page 2 Before using the equipment, you need to read all safety WARNING! instructions General Safety Precautions 1: Be sure to read all instructions thoroughly. Installation must be carried out by a licenced electrician following all relevant AS/NZS standards and local regulations of your state/territory or country on installing this equipment.
  • Page 3 How it works The Sun Flux Hot Water Controller is a PV solar based system that uses a standard electric hot water tank with a standard element and thermostat. The Sun Flux Hot Water Controller is comprised of a PV solar input an AC grid input and a single output that can output either PV solar or AC grid directly to a standard electric hot water tank.
  • Page 4 The Mechanical Drawing of the Sun Flux Hot Water Controller (1)AC Indicator: Red LED indicator lit in AC grid mode. (2)Selector switch: For option of AC grid power or PV solar power. (3)PV indicator: Green LED lit in PV solar mode. (4)MC4: For connection to PV solar panels.
  • Page 5 Installation 1: Check and make sure the unit is not damaged in any way before installation. 2: Turn off all PV solar power and AC grid power then test to confirm isolation before installing. 3: Attach the unit securely in place using adequate fixtures. 4: Switch the selector switch to the off position.
  • Page 6 The Block Diagram of the Sun Flux Hot Water Controller Protections *DC Reverse polarity protection *Microprocessor controlled protections *AC/DC isolator switch *AC ground fault protection Technology The Sun Flux Hot Water Controller has been design for use with a standard electric hot water tank with a standard element and thermostat uses the latest microprocessors and IGBT technology to create a modified DC output much like AC without the loss in efficiency.
  • Page 7 Recommended Installation components *2 to 6 solar panels in series, 35 to 65volts open circuit and 5 to 15amps. *2400/3600watt 240volt AC element and standard thermostat. *Standard 80 to 320litres electric hot water tank. WARNING DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE IF THE EQUIPMENT IS USED IN A MANNER NOT SPECIFIED BY THE MANUFACTURER, THE PROTECTION PROVIDED BY THE EQUIPMENT MAY BE IMPAIRED AND ALL WARRANTY WILL BE VOID.
  • Page 8 Note: Specifications subject to change.
