ASSEMBLY AND INSTALLATION

WARNING:

NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.

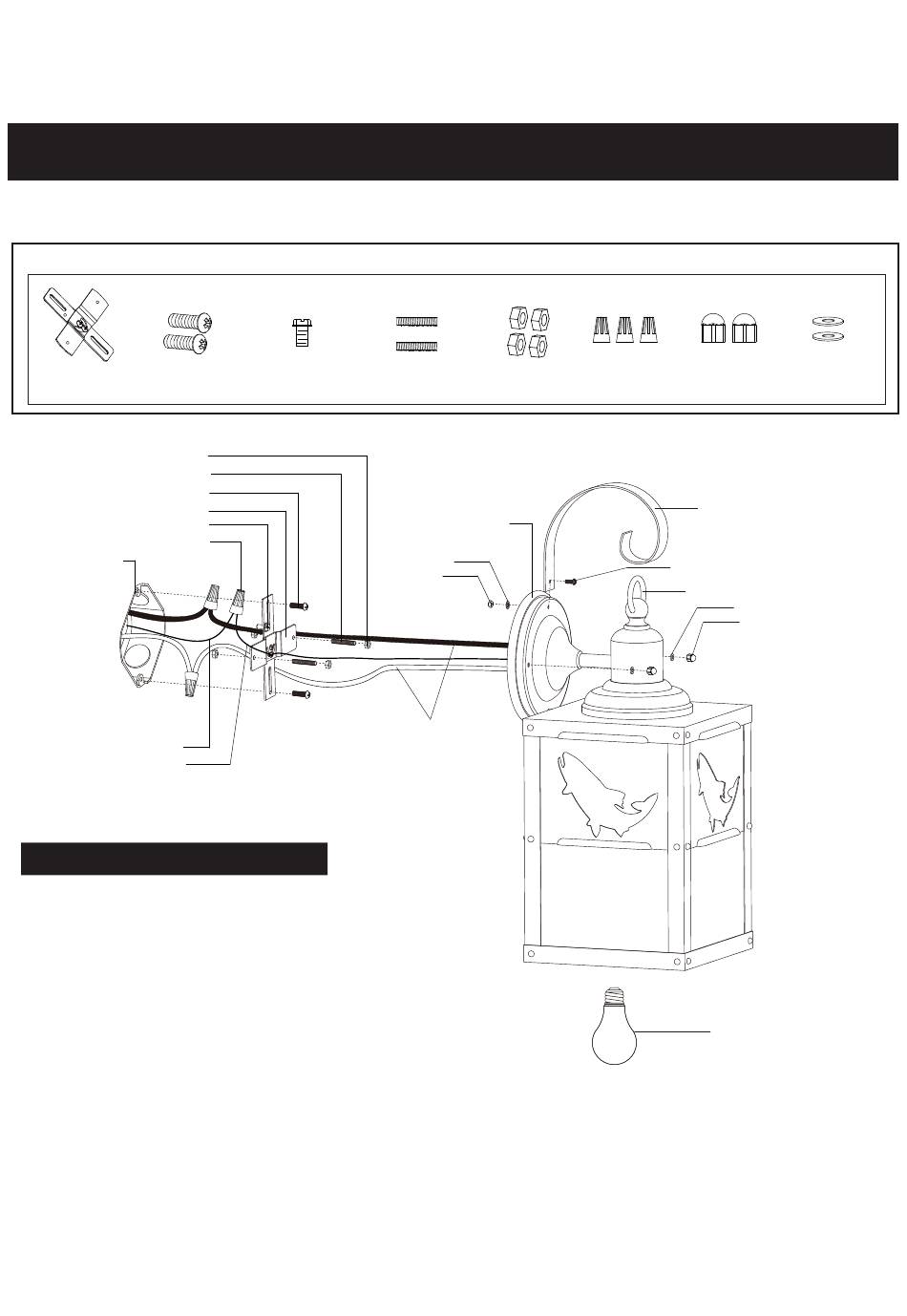

Hardware Package (included):

Mounting Screw (B)
Cross Bar (A)
Lock Nut
Headless Screw (D)
Mounting Screw (B)
Cross Bar (A)
Green Grounding Screw (C)
Wire Nut (F)
Outlet Box
House Grounding Wire
Fixture Grounding Wire

Installation Steps

Turn off the power at fuse or circuit box.
1.
Thread two headless screws through the cross bar, and then
secure them with four lock nuts (two on each side of the cross
bar). Adjust the length of the headless screws if necessary.
Note: Make sure that the headless screws are lined up
horizontally to make the fixture level.
2. Attach cross bar to the outlet box using two mounting screws.
3. Unscrew the set screw, lock nut-2 and washer from the curved arm.
4. Hook the curved arm to the loop, and then attach the curved arm to the back plate by using the set screw, washer
and lock nut-2.
5. Pull out the source wires from the outlet box. Make wire connections using wire nuts as follows:
---Connect the hot wire (usually black insulation) from the fixture to the black wire from the power source.
---Connect the neutral wire (usually white insulation) from the fixture to the white wire from the power source.
---Attach the fixture grounding wire (usually green insulation or bare wire) to the cross bar with the green
grounding screw, and then connect it to the house grounding wire with the wire nut.
Carefully put the wires back into the outlet box.
INSTRUCTIONS
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Green Grounding
Screw (C)
(E)
Lock Nut (E)
Headless Screw(D)
Back Plate
Washer
Lock Nut-2
Fixture Wire
Ball Nut (G)
Wire Nut (F)
Curved Arm
Set Screw
Loop
Rubber Pad (H)
Ball Nut(G)
Bulb type A Max. 60W
(not include)
Rubber Pad (H)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W0192 and is the answer not in the manual?

Questions and answers

Summary of Contents for LOWES W0192

  • Page 1 ASSEMBLY AND INSTALLATION INSTRUCTIONS WARNING: TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE. NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements. 2. READ AND SAVE THESE INSTRUCTIONS. Hardware Package (included): Lock Nut (E) Ball Nut (G)
  • Page 2 6. Attach the back plate to the cross bar by inserting two headless screws, and then secure it with two rubber pads and two ball nuts. NOTE: With silicone caulking compound, caulk completely around where the back plate meets with the wall surface to prevent water from seeping into the outlet box.
