OHIOSTEEL 1084TR Quick Start Manual

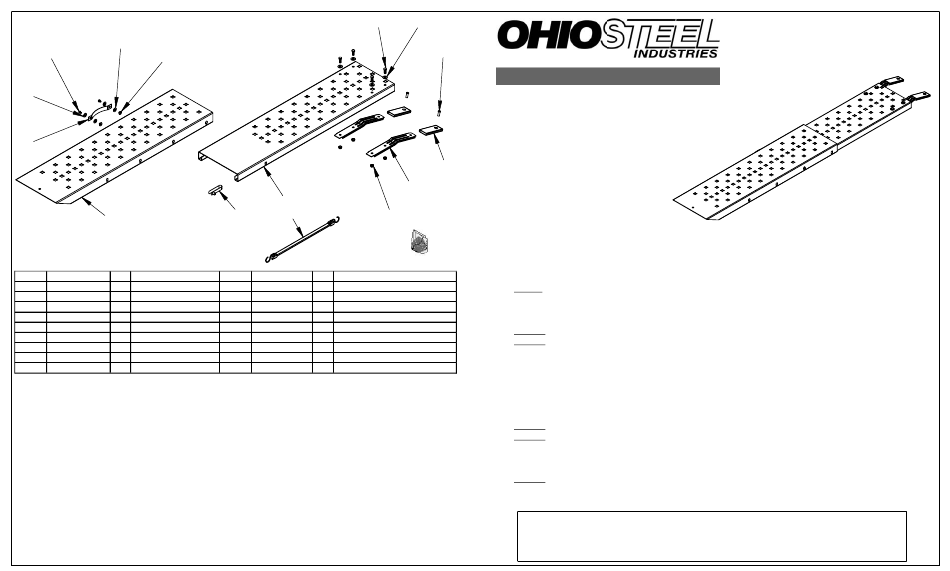

Repair Parts
7
6
8
7
15
2
REF. NO. PART NO. AMT. DESCRIPTION
1 84TR-01 1 RAMP TOP
2 84TR-02 1 RAMP BOTTOM
3 LR-03 2 SUPPORT BAR
4 LR-04 2 CLEVIS PIN
5 LR-05 2 SUPPORT BAR PADS
6 STDBH2500375 2 1/4"-20 X 3/8" BOLT
7 STDWF250USS 4 1/4" FLAT WASHER
8 84TR-08 2 1/4"-20 T-NUT
9 STDBH3750750 4 3/8"-16 X3/4" BOLT
LIMITED ONE-YEAR WARRANTY
If this product fails due to a defect in material or workmanship within one year from the date
of purchase, Ohio Steel will at its option repair or replace it free of charge. Proof of
purchase required for all warranty claims.
This warranty does not cover:
• Repairs necessary because of operator abuse or negligence.
• Equipment used for commercial or rental purposes.
Contact Ohio Steel to arrange for product repair, or return this product to place of purchase for
replacement.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state. This Warranty applies only while this product is in use in the United States.
When ordering repair parts always give the following information,
PRODUCT NAME, MODEL NUMBER, PART NUMBER, and PART DESCRIPTION.
9
1
13 12
14
REF. NO. PART NO. AMT. DESCRIPTION
10 STDWF375USS 4 3/8" FLAT WASHER
12 STDNK370 4 3/8"-16 KEPS NUT
13 84TR-13 1 SNAP BUTTON (A-190S)
14 LR-14 1 BUNGEE W/S-HOOK
15 84TR-15 1 NYLON HANDLE
16 84TR-16 1 MANUAL - NOT SHOWN
17 84TR-17 1 HARDWARE BAG - NOT SHOWN
18 84TR-18 1 WARNING DECAL - ON RAMP
10
4
TELESCOPING ALUMINUM
ATV LOADING RAMP
Model 1084TR
• 625 pound capacity - single.
• 1,250 pound capacity - double.
5
• Compact Storage.
3
• Assembly required.
• One person loading.
WARNINGS
17 • The loading ramp surfaces are sharp. Always wear proper clothing and use care when
handling the loading ramps. (Gloves are strongly recommended).
• Read and understand all safety and operating instructions before using the loading ramp.
Never allow anyone unfamiliar with these instructions to use the loading ramps.
• Read and understand all safety and operating instructions provided by the manufacturer
• of the equipment the loading ramp will be used with.
• Extreme caution should always be used while loading and unloading your equipment.
• Do not exceed the rated capacity of the loading ramp.
• Do not exceed the rated capacity of the loading surface (i.e. tailgate). If unknown, contact
the manufacturer to find the maximum load capacity.
• Never stand in the path of equipment being loaded, and keep all bystanders and children
away from loading ramps.
• This ramp must be only used for loading and unloading to and from a level and stable
REV-B
surface.
• Use caution when using ramp in icy or wet conditions. The ramp surface may become
slippery.
• Do not use this loading ramp to load live animals.
• Do not use loading ramps as a bridge, scaffolding, or any other use for which it is not
intended or designed.
• If ramp is bowing while loading or unloading your equipment, which indicates an overload
condition, remove the equipment immediately.
• Do not attempt to load or unload any power equipment with its motor running.
• Failure to follow these warnings may result in property damage and/or serious bodily injury.
Ohio Steel Industries
Columbus, OH 43224 U.S.A.
Visit our website: www.ohiosteel.com
Manufactured under U.S. Patent No. 5,645,394
For missing parts or questions
Call 1-800-652-2321
