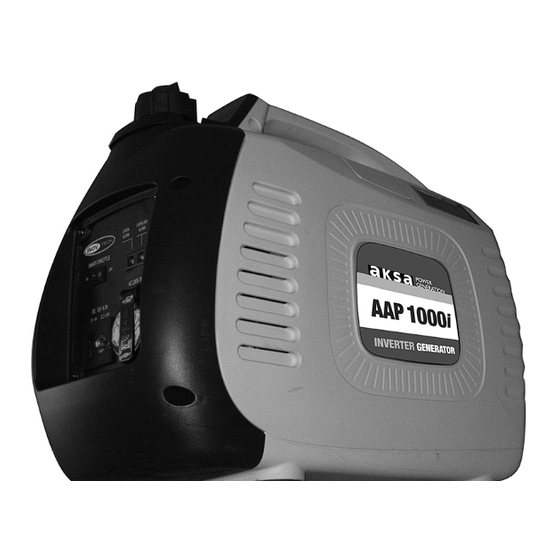

Aksa AAP 1000i User And Maintenance Manual

Inverter generator
Hide thumbs
Table of Contents

Advertisement

Quick Links

AAP 1000i - AAP 2000i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AAP 1000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aksa AAP 1000i

Summary of Contents for Aksa AAP 1000i

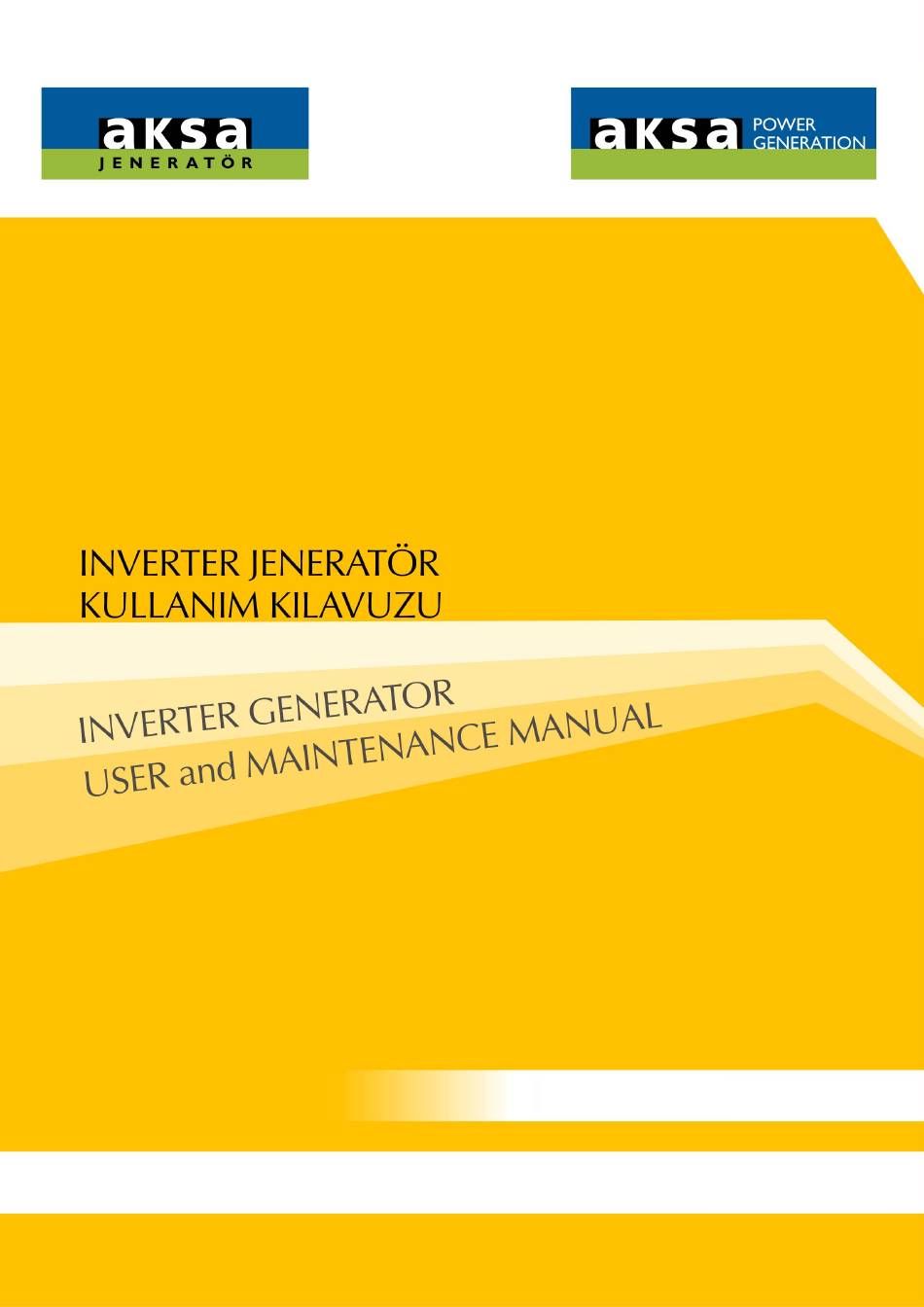

  • Page 1 AAP 1000i - AAP 2000i...
  • Page 2 ÖNEMLİ GÜVENLİK BİLGİLERİ İÇERİR. PLEASE READ THIS MANUAL CAREFULLY IT CONTAINS IMPORTANT SAFETY INFORMATION BENZİNLİ JENERATÖR / GASOLINE GENERATOR AAP 1000i - 2000i INVERTER JENERATÖR / INVERTER GENERATOR Murat Bey Beldesi, Güney girişi Cad. No:8 34540 Çatalca - İstanbul 887 11 11...
  • Page 3 USER and MAINTENANCE MANUAL PLEASE READ THIS MANUAL CAREFULLY IT CONTAINS IMPORTANT SAFETY INFORMATION GASOLINE GENERATOR AAP 1000i AAP 2000i INVERTER GENERATOR ENGLISH...
  • Page 5 This book includes the operation and maintenance of AAP1000i and AAP 2000i All the contents of this book are consistent with the print of the latest product. AKSA retains its right to amend this guide, thus will not notify later or bear any responsibility. No duplicator is permitted without written permission.

  • Page 6: Table Of Contents

    Index 1. Safety matters .....................3 2. Label position of safety matters..............5 3. Components identifier ..................5 4. Check before operation ...................8 5. Start the engine ....................11 * operation at high altitudes ................11 6. Usage of the engine ...................14 7. Turn off the engine .....................21 8.

  • Page 7: Safety Matters

    I.Safety Matters To ensure safe operation matters Warning If you operate the AKSA generator according to the guide, the • generator will run safely. Please read and understand the guide without fail before you use it, or else casualties or damage of the equipment will be caused by incorrect operation.
  • Page 8 I.Safety Matters The ensure safe operation matters Warning • The gasoline is very easy to burn or explode under specific conditions Do oil the generator in a draught, and turn off the engine before oiling. • When oiling the engine, keep away from cigarettes or spark.

  • Page 9: Label Position Of Safety Matters

    2. Label position of safety matters These labels warn you of those latent dangers that will possibly cause serious accidents involving casualties. Please read carefully the words on the labels, the safety warnings and the notes recounted in the guide. If the labels have fallen off or are illegible, please contact the store where you bought the product and change them.
  • Page 10 3. Compenents Identifier Please write down the Ex-factory number in the following blank. You will need it when ordering components. Ex-factory number: _____________________________________________...

  • Page 11: Components Identifier

    3. Compenents Identifier Controlling Panel 3. Components identifier Intelligent gas-saving valve: When the engine is disconnected from the electrical equipment, the velocity of the generator will slow down automatically; when it is connected with it, the electric charge will make the generator return to a proper rotate speed.

  • Page 12: Check Before Operation

    3. Components identifier Intelligent gas-saving valve: close: It means the intelligent gas-saving system is closed, and the rotate speed of the generator is kept on a level higher than the standard rotate speed. 4. Check Before Operation Warning Check the generator, keep it on a horizontal surface without fail, and ensure that the engine is turned off.
  • Page 13 If you decide to use the gasoline containing alcohol (alcoholic gasoline), its octane value can not below the level of that AKSA has recommended. Here are two types of alcoholic gasoline: one contains ethanol, and the other contains methanol. Do not use the kind of alcoholic gasoline that contains more than 10% ethanol, or the kind having no assisting solvent and antiseptic in methanol.
  • Page 14 4. Check Before Operation Check the air filter Check the core of the air filter, ensuring that it is clean and performs well. Dismantle the repair cover, loosen the screw on the cover of the air filter, and then dismantle the cover of the air filter to check the core.

  • Page 15: Start The Engine

    5. Start the engine Before starting the engine, cut off the load from the alternating current socket on the engine. a). Totally turn the valve to the "open" position clockwise. Note: when transpor ting the engine, you should turn the ventilating pole of the gas- burning lid to the "close"...
  • Page 16 5. Start the engine c). Turn the pulling pole of the air-blocking valve to the "close" position Note: when the engine is hot or the environmental temperature is relatively high, do not use the air-blocking valve. d). Pull the starting hold slightly until you feel the pressure, then release the hold slowly by hand.

  • Page 17: Operation At High Altitudes

    If you use the engine at an altitude of over 1500meters (5000 feet), please ask the authorized agent of AKSA to modify the carburetor. Even though you use the proper nozzle, the horsepower of the engine will still decline 3.5% as the altitude increases every 300merters (1000 feet).

  • Page 18: Usage Of The Engine

    6. Usage of the engine If all the installations that connected have been earthed, make sure to earth the engine. Warning In order to prevent getting an electric shock because of incorrect operation, the engine should be earthed. The earth port of the engine and the outside earth source are connected by a thick cable.
  • Page 19 6. Usage of the engine Look Out Do not exceed rated power, and the total watt of the connected electrical equipments should be considered. Do not exceed the fi xed current limit of socket. Do not link the engine household circuit, or else the engine or the household circuit would be damaged.
  • Page 20 6. Usage of the engine Use of alternating current 1. Start the engine, and make sure the indicator light (green) is on. 2. Make sure that the switch of the electrical equipment to be used has been turned off, and then plug the generator into the electrical equipment.
  • Page 21 6. Usage of the engine The outputting and overloading indictor lights If in a good wor king order, the outputting indicator light (green) is on. If the generator overloads (over 1.6KVA), or there is short circuit inside the electrical machine it links to, the outputting indicator light (green) will go out, while the overloading indictor light (red) will lighten.
  • Page 22 If the red light is still on, please consult the authorized agent of AKSA. Before you link the charging wire to the battery which is installed on the car, first disconnect the battery’s ground wire until the charging cable is dismantled.
  • Page 23 6. Usage of the engine Look Out • Do not try to start the motor when the generator is still connected with the batteries, or else the generator will be damaged. • The positive pole of the charging cable should be connected to the negative pole of the battery.
  • Page 24 6. Usage of the engine Defender of the direct circuit Open Close Low oil level alarming system Low oil pressure alarming system is designed to prevent the engine being damaged by lack of machine oil in the crankcase. Before the machine oil in the crankcase declines to the security line, the low oil pressure alarming system will turn off the engine automatically.

  • Page 25: Turn Off The Engine

    7. Turn off the engine If you want to stop the engine urgently, turn the switch of the engine to the “close” position. Normal use: 1. Turn off all the installations that are connected, and unplug the plug. 2. Turn the switch of the plug to the 1.

  • Page 26: Maintenance

    Note: 1. If used in dir ty places, the generator should be maintained more regularly. 2. Unless the user has proper tool or he is a specialist on machine, the maintenance of the above items should be one by the authorized agent of AKSA. Please refer to the handbook of AKSA.
  • Page 27 8. maintenance 1. Change the oil Please discharge the machine oil quickly and thoroughly when the engine is still hot. Look Out • Before you discharge the oil, make sure the switches on the ventilating pole of the gas burning lid and the engine is on the “close” position. 1.
  • Page 28 8. Maintenance 2. Maintenance of the air filter Dirty air filter will block the air from entering the carburetor. In order to prevent the carburetor from failure, please maintain the air filter regularly. If the dynamo is used in very dirty places, it will thus need to be maintained more regularly.
  • Page 29 8. Maintenance 1. Maintenance of the spark plug Recommended spark plug: A7RC To ensure the engine to work in good order, the clearance of the spark plug must be correct, and has no accumulated charcoal. 1. Dismantle the repair cover of the spark plug. Repair cover of the spark plug 2.

  • Page 30: Transport/Storage

    9. Transport/storage In order to avoid the generator leaking oil during transport of temporary storage, make sure to switch off the generator, keeping it at a standing pose under normal operations. Turn the ventilating pole of gas-filling lid to the “close” position counter-clockwise. After the engine is totally cooled, turn the ventilating pole of the gas-filling lid to the “close”...

  • Page 31: Examine And Repair The Breakdown

    10. Examine and repair the breakdown A. Discharge the gas in the gasoline tank thoroughly into a proper container. B. Turn the switch of the engine to the “close” position. Dismantle the oil-discharging screw on the carburetor and discharge the gas in it into a proper container. C.
  • Page 32 10. Examine and repair the breakdown If the engine cannot be started: Examination: (1) Dismantle the spark plug, clean out the filth around it. (2) Dismantle the spark plug, enclose it into the cover of it. (3) Earth the side pole on the lid of the air cylinder.
  • Page 33 10. Examine and repair the breakdown If the engine can not be started:...

  • Page 34: Technical Specification

    11. Technical Specification Size and Weight Size and Weight AAP 2000i model AAP1000i 555*305*460 length width height(mm) 24,3 net weight(kg) 15.3 Engine model 144F engine type S troke 4, OHV, one cyli nder bore x stroke 43.5mmx36mm compression ratio 8.5:1 rotate speed 5200dev/dk(intelli gent accelerograph closes) cooling system...
  • Page 35 AKSA JENERATÖR YETKİLİ SERVİS NOKTALARI İSTANBUL AVRUPA YAKASI AVCILAR MUSTAFA KEMAL PAŞA MAH. YILDIRIM BEYAZIT CAD. DEMET SOK. NO:132 AVCILAR / İSTANBUL T: 0 212 428 66 66 PBX F: 0 212 423 22 22 BAĞCILAR ORTAK BÖLGE ( GÖKSU ) FATİH, ZEYTİNBURNU, GAZİOSMANPAŞA, EYÜP MERKEZ MAH.
  • Page 36 BRANCH OFFICES & WAREHOUSES...
  • Page 42 Genel Müdürlük / Head office Aksa Servis ve Yedek Parça / Aksa Service & Spare Parts Aksa Kiralama / Aksa Rental Fabrikalar / Factories...
