Page 1: Assembly Instructions

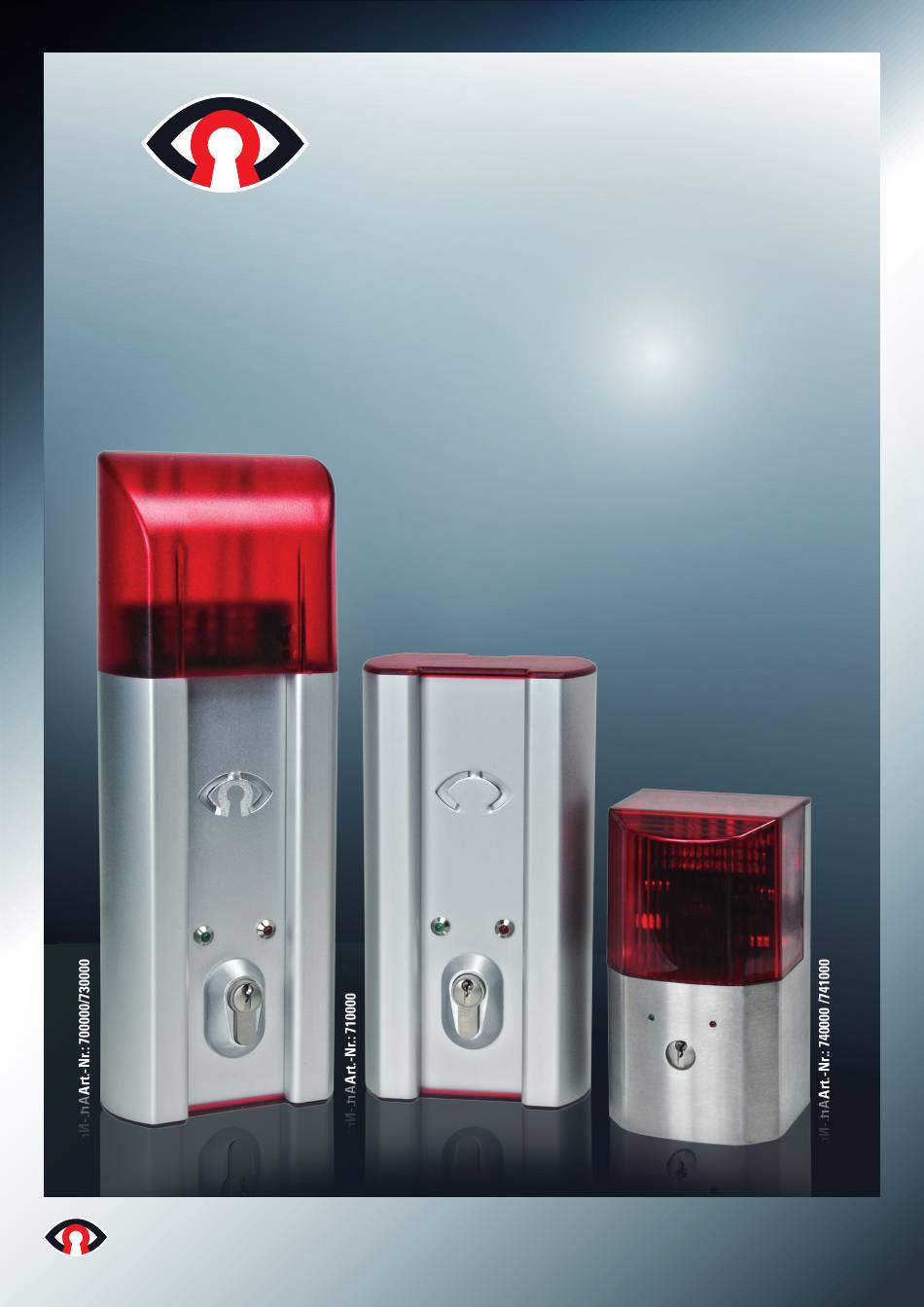

GfS Day Alarm Assembly instructions GfS – Gesellschaft für Sicherheitstechnik mbH Tempowerkring 15 ∙ D-21079 Hamburg Tel. 0 40 - 79 01 95 0 ∙ Fax 0 40 - 79 01 95 11 ∙ info@gfs-online.com ∙ www.gfs-online.com... -
Page 2: General Description
The actual status of the GfS Day Alarm is indicated by a green and red LED. When walking through the door an accoustic alarm (95dB) and flash-light The battery-operated GfS Day Alarm LC, however, does not integrate a is triggered. -
Page 3: Warranty
LED shines. Now turn key anticlockwise and remove. Close the door by the GfS Day Alarm. The red LED flashes and a visual and an accoustic or if the door is closed already, wait 15 seconds. Now the LED shines red alarm is triggered. -
Page 4: Technical Data
GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 GfS Day Alarm GfS Art No. 700 000/730 000 with radio reed contact – terminal diagram Jumper Pos. 1–3 Bridge for radio reed contact External access External key switch control system External key switch... - Page 5 GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 GfS Day Alarm GfS Art. No 700 000/730 000 with cable reed contact – terminal diagram Jumper 2 Pos. 1–2 Jumper 1 Pos. 1–3 reed contact reed contact External access 1 2 3 4 5 6...
-
Page 6: External Switch
GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 GfS Day Alarm INOX GfS Art. No 740 000 with radio reed contact – Terminal diagram Jumper for radio reed contact external key switch External access control system floating contact external key switch... - Page 7 GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 GfS Day Alarm INOX GfS Art. No 740 000 with cable reed contact – Terminal diagram reed contact external key switch External access control system external key switch floating contact Key switch parallel to internal key switch 24 V Jumper 1 Pos.
-
Page 8: Battery Operation
GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 GfS Day Alarm INOX GfS Art. No 741 000 with cable reed contact – battery operated reed contact external key switch External access control system external key switch floating contact Key switch parallel to internal key switch... -
Page 9: Power Supply
GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 GfS Day Alarm GfS Art. No 710 000 with cable reed contact – battery operated Jumper without function (when battery operated alarm switches off automatically after 3min) reed contact reed contact External access... - Page 10 GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 SETTINGS FOR REMOTE REED CONTACT Programming of additional radio reed contacts Press the program button (Prog) once briefly (1 sec max.). You will notice a blinking light signal (f =1 Hz). Handle the transmitters one Programming button after the other that shall work with the receiver.
- Page 11 Art.-Nr.: 700 000/710 000/730 000/740 000/741000 Technical approval (installer) for the mutual safeguarding for the local dealer/assembler and end customer Version GfS Day Alarm with external power supply (GfS Art.-No. 700 000) GfS Day Alarm INOX with integrated power supply (GfS Art.-No. 740 100) GfS Day Alarm battery operated (GfS Art.-No.
- Page 12 Cable reed contact Remote reed contact The installation has been done properly The function of the GfS Day Alarm have been checked, the GfS Day Alarm operates correctly Pecularities of the building site All GfS Day Alarms are accessible The GfS Day Alarm has been tested and approved...
- Page 13 GfS-Day Alarm Art.-Nr.: 700 000/710 000/730 000/740 000/741000 NOTES MA_GfS-Tagalarm_0515_GB...
-
Page 14: Operation
Then turn back the key into the middle position and remove it. turn Open the door and walk through. red LED Close the door, the red LED shines and the GfS Day Alarm is activated again. shines Permanent deactivation Description turn Insert key and turn to the right as far as it will go. -
Page 15: Programming Button
Operate the reed-contacts one after another which are supposed to work together with the shines for A well received signal is confirmed by a light signal which is emitted for GfS Day Alarm. approx. 4 sec. about 4 sec. Up to 32 senders might be taught-in. - Page 16 GfS – Gesellschaft für Sicherheitstechnik mbH Tempowerkring 15 ∙ D-21079 Hamburg Tel. 0 40 - 79 01 95 0 ∙ Fax 0 40 - 79 01 95 11 ∙ info@gfs-online.com ∙ www.gfs-online.com...
