Field of application and product discription
The devices are suited only for distributing radio and television signals in the
house! If the device is used for other purposes, no warranty is given!
The Audio/Video Modulator modulates an A/V signal in a RF channel to
connect to a television set or to feed a small house network.
At the input one may connect a CCD camera, a VCR, a DVD player or a similar
item. In this way a children´s room, a house entrance or another sensitive area
can be monitored.
With programming, a channel, which is not used for TV-transmission*, can be
selected to transmit the signal from the input source.

Mounting:

Use the mounting screws included in the delivery and the mounting holes of
the devices 1.
1

Programming of the output channel

The modulator „AVM" is switched on with the power switch on the rear side
of the device. Press SET for 3 seconds, until LED starts blinking. Now press „+"
or „-" until you reach the selected channel. The LED stops blinking after about
3 seconds, and theselected channel is adjusted.
POWER-Switch
SET button LED display
audio level video level

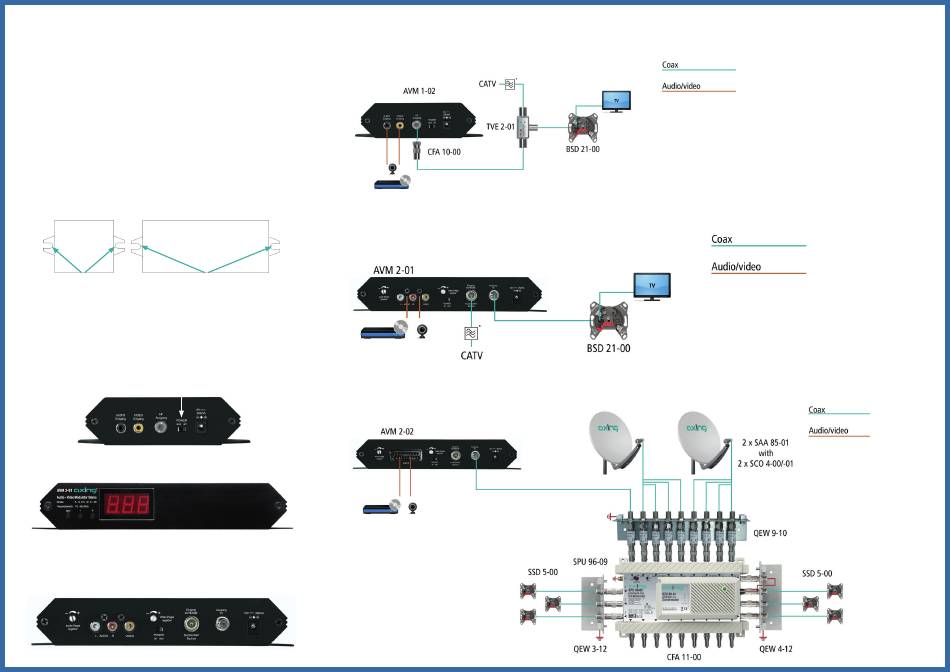

Signal feeding:
e.g. through splitter
e.g. through AVM 2-01
1
e.g. through multiswitch
* For the application a band
rejection fiter must be used, to
block one channel of the CATV
spectrum.
