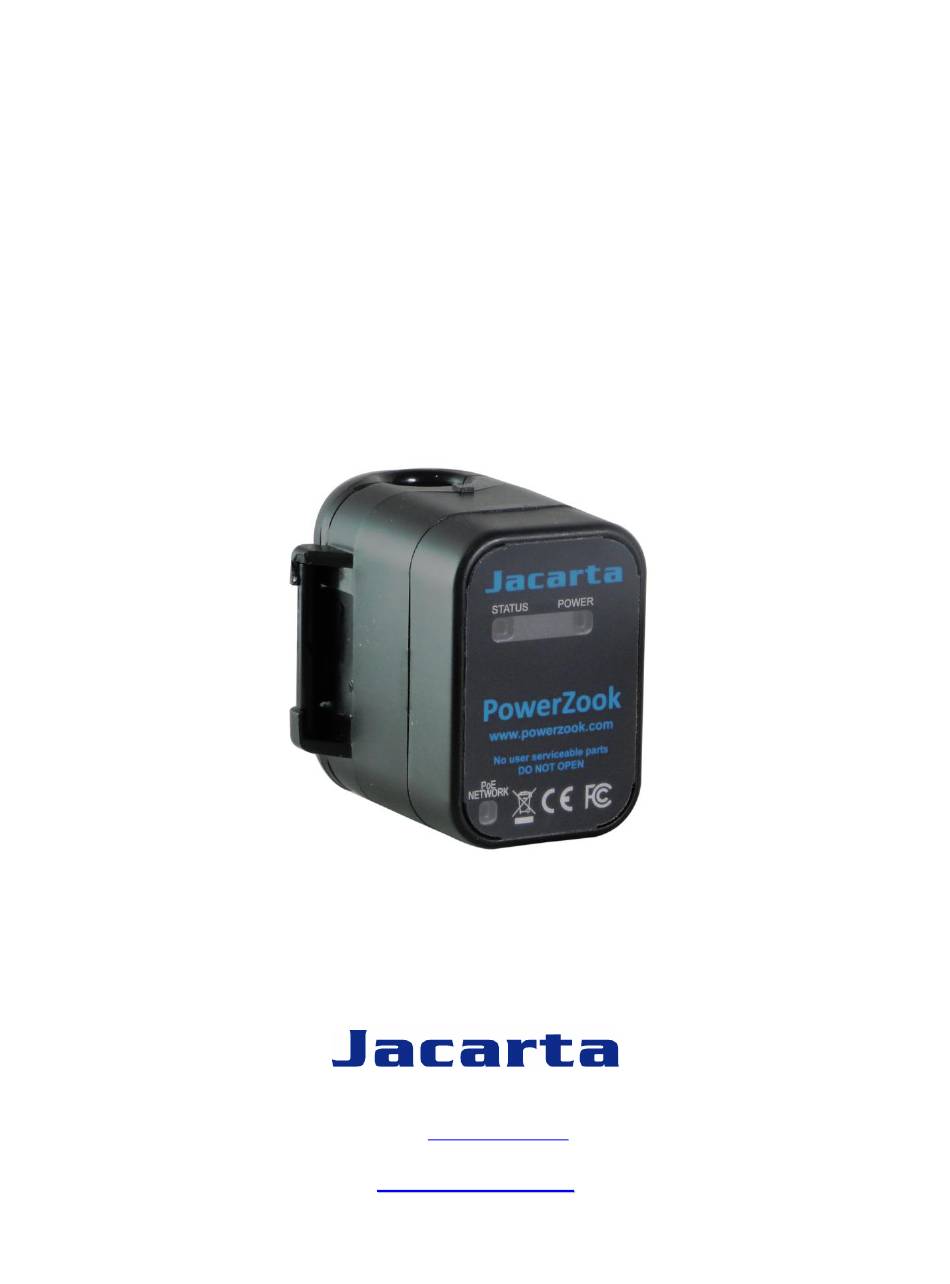

- Page 1 PowerZook & PoE Injector Installation Guide v 1.3 T. +44 (0) 1672 511125 Email: support@jacarta.com...
-
Page 3: Electronic Emission Notice
Although this product is used on the outside of a cable please ensure that extreme force is not used to close the PowerZook. Do not proceed with the install if the PowerZook can not be clipped in to its final position by hand. Use of excessive force may cause damage to the PowerZook and... - Page 4 Position Arrow: To help with the calibration process PoE Injector Overview The PoE Injector allows users to power the PowerZook directly from any USB port and connect the device directly to any network port on a laptop or computer. Calibration and network settings can then be configured before connecting the sensor to your PoE Switch/Network.
- Page 5 • To secure the PowerZook in to the Calibration Position it needs to be able to be moved around the cable but not moved freely when let go. This can be achieved using both the side securing clip and the cable restraint. For a table of standard cable sizes please see Appendix A.
- Page 6 The PowerZook is a PoE device so would normally require a connection to a PoE switch in order to power on. However, with the Jacarta PoE Injector you can also use a USB port on your PC to power the PowerZook.
- Page 7 Log in as Installer (PZadmin) Once you are logged in go to the following menu: PowerZook Settings > Basic Settings The basic settings page allows users to change the following values: Voltage This defines the voltage figure used to calculate Amps reading.
- Page 8 2. A green bar that will fill in from the left once you start positioning the PowerZook on to a load bearing cable. The green bar represents where the measurement currently is in comparison to the peak reading.
- Page 9 This is where the most accurate measurement can be taken. 6. Secure the PowerZook fully so that it will not move along or around the cable anymore. The final thing to do is to give the PowerZook the relevant TCP/IP address details for the network that it is being installed on to.
- Page 10 6. PowerZook SNMP Settings PowerZook Settings > SNMP Settings PowerZook will provide Amp readings to any chosen NMS using SNMP v1. SNMP Port and Community Settings can be amended as necessary. A full OID list can be found in Appendix B.
- Page 11 Firmware. Once the firmware has been uploaded to the device the unit will need to be rebooted for the upgrade to finalise. All PowerZook settings should be saved but please do note down any key settings should they be lost.
- Page 12 Tools > Factory Reset PowerZook can be quickly and easily reset to factory defaults. Please note that the device will revert to the default IP settings (192.168.1.200). Tools > Reboot When troubleshooting potential issues, or if the device becomes unresponsive it is possible to...
-
Page 13: Appendix A: Standard Cable Sizes
Rubber securing clip in to securing clip once to enter the its second position. calibration position. Appendix B: PowerZook OID List .1.3.6.1.4.1.19011.1.3.5.1.3.1.0 - Current/AMPS (x .001) .1.3.6.1.4.1.19011.1.3.5.1.3.2.0 - Watts .1.3.6.1.4.1.19011.1.3.5.1.3.3.0 - Voltage .1.3.6.1.4.1.19011.1.3.5.1.3.4.0 - Power Factor .1.3.6.1.4.1.19011.1.3.5.1.3.5.0 – Measurement Mode (usually G2, cable type dependent) - Page 14 Jacarta Ltd Wagon Yard, London Road Marlborough, Wiltshire SN8 1LH United Kingdom Tel: +44(0)1672 511125 Email: support@jacarta.com...
