Huafeng M1H-ZP2-250E Operating Instructions Manual

Bench-type circular saw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Original operating instructions
Bench-type circular saw
Model:
M1H-ZP2-250E
2016
Danger! Read all safety regulations and instructions.
Keep all safety regulations and instructions in a safe place for future use.
Manufacture: Zhejiang Huafeng Electric Tools Co., Ltd.
Address: Xiaoshun Town, Jinhua, Zhejiang 321035, P.R.China

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M1H-ZP2-250E and is the answer not in the manual?

Questions and answers

Related Manuals for Huafeng M1H-ZP2-250E

Summary of Contents for Huafeng M1H-ZP2-250E

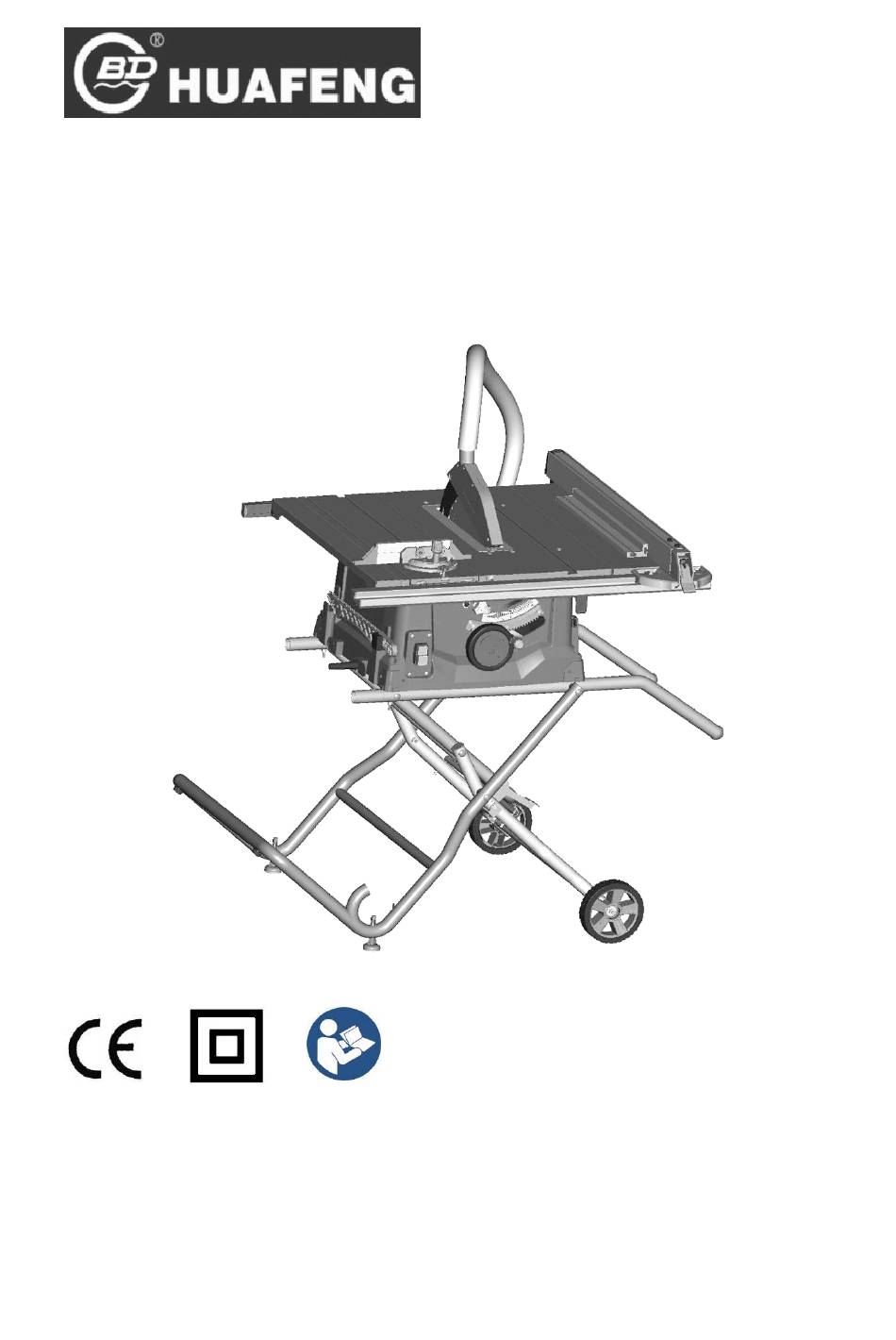

  • Page 1 Bench-type circular saw Model: M1H-ZP2-250E 2016 Danger! Read all safety regulations and instructions. Keep all safety regulations and instructions in a safe place for future use. Manufacture: Zhejiang Huafeng Electric Tools Co., Ltd. Address: Xiaoshun Town, Jinhua, Zhejiang 321035, P.R.China...

  • Page 2: Table Of Contents

    Table of contents 1. Safety regulations ..............................3 2. Layout and items supplied............................7 3. Proper use .................................8 4. Technical data ................................9 5. Before starting the equipment..........................10 6. ASSEMBLY& ADJUSTMENTS..........................10 7. Using the saw................................14 8. Replacing the power cable............................15 9. Cleaning, maintenance and ordering of spare parts ..................15 10.
  • Page 3 Caution! Wear ear-muffs. The impact of noise can cause damage to hearing. Caution! Wear a breathing mask. Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos! Caution! Wear a breathing mask.

  • Page 4: Safety Regulations

    Danger! equipment or cable, keep them away from When using the equipment, a few safety your work area. precautions must be observed to avoid injuries 5. Securely store unused electric tools –Unused electric tools should be stored in a and damage. Please read the complete operating instructions and safety regulations dry, elevated or closed location out of the with due care.
  • Page 5 the working plate and stop in order to prevent Remain sensible when working. Do not use bouncing and twisting of the workpiece. the electric tool when you are distracted. 12. Avoid abnormal posture 19. Check the electric tool for potential –Make sure that you have secure footing damage –Protective devices and other parts must be...
  • Page 6 deformed saw blades. tool attachments regularly –Replace a worn table insert. necessary, initiate repairs in order to reduce –Only use saw blades recommended by the noise. –Report faults on the electric tool, protective manufacturer which conform to EN 847-1. Warning! Keep attention When changing the devices or the tool attachment to the person saw blade.The cutting width is not smaller responsible for safety as soon as they are...
  • Page 7 secured on a workbench or a table if at all 7 Make sure that fixed reducer rings for possible. securing the insertion tool have the same –Support long workpieces (e.g. with a roller diameter and have at least 1/3 of the cutting table) to prevent them sagging at the end of a diameter.

  • Page 8: Layout And Items Supplied

    2. Layout and items supplied 2.1 Layout 1. Front rip fence rail with ruler 22. Carry handles (folded position) 2. Miter gauge assembly 23. Stand in folded position 3. Blade guard assembly 24. Wrenches 4. Table insert 5. Rip fence assembly 6.

  • Page 9: Proper Use

    2.2 Items supplied to be a case of misuse. The user / operator and Please check that the article is complete as not the manufacturer will be liable for any specifi ed in the scope of delivery. If parts are damage or inju-ries of any kind caused as a missing, please contact our service center or result of this.

  • Page 10: Technical Data

    injuries). • Kick-back of workpieces and parts of work- The quoted values are emission values and not pieces. necessarily reliable workplace values. Although • Saw blade fracturing. there is a correlation between emission and • Catapulting of faulty carbide tips from the saw im-mission levels it is impossible to draw any blade.

  • Page 11: Before Starting The Equipment

    nuts. 5. Before starting the equipment 4. Mount wheel bracket (C) to foot bracket (E) Before you connect the equipment to the mains Fig.1 supply make sure that the data on the rating plate are identical to the mains data. Warning! The maximum permissible system impedance is 0.340Ω...
  • Page 12 wheels are installed. Unfolding stand for use at the jobsite- 6. The stand is now completely assembled and 1. Push the stand release latch (A) and at the should looklike the stand. same time, grasp the standhandles (B) and pull them down towards you.
  • Page 13 slightly thinner than the blade, that helps to Fig.7 keep the blade kerf open to prevent kickback. The distance between the saw blade and the riving knife must be 3mm-5mm. Tighten the mounting bolt(A) again and mount the bench insert. Fig.
  • Page 14 when a specific width is desired. 1.Unlock the bevel locking lever (B). 3. Once the extension is in the desired position, 2. Push in and then turn the exterior handwheel tighten the lock lever(B) to secure the extension (A) to adjust the blade bevel angle, turning it in place.

  • Page 15: Using The Saw

    Fig. 13 over-heating, reduce load on motor or check voltage. Allow motor to cool down, then press the reset button and restart the saw. If the saw does not restart, wait an additional 5 minutes before restarting. Cross cutting Cross cutting requires the use of the miter gauge to position and guide the work.

  • Page 16: Replacing The Power Cable

    guard has anti-kickback fingers and a riving Cleaning, maintenance knife to prevent the saw kerf from closing. Start the motor and advance the work holding it ordering of spare parts down and against the fence. Never, stand in the line of the saw cut when ripping. Hold the Danger! workwith both hands and push it along the Always pull out the mains power plug before...

  • Page 17: Disposal And Recycling

    collection point, you should ask in your local 10. Disposal and recycling council offices. 11. Storage equipment supplied Store the equipment and accessories in a dark packaging to pre-vent it from being damaged in and dry place at above freezing temperature. transit.
