Summary of Contents for Hawkeye Mfg H.264DVR

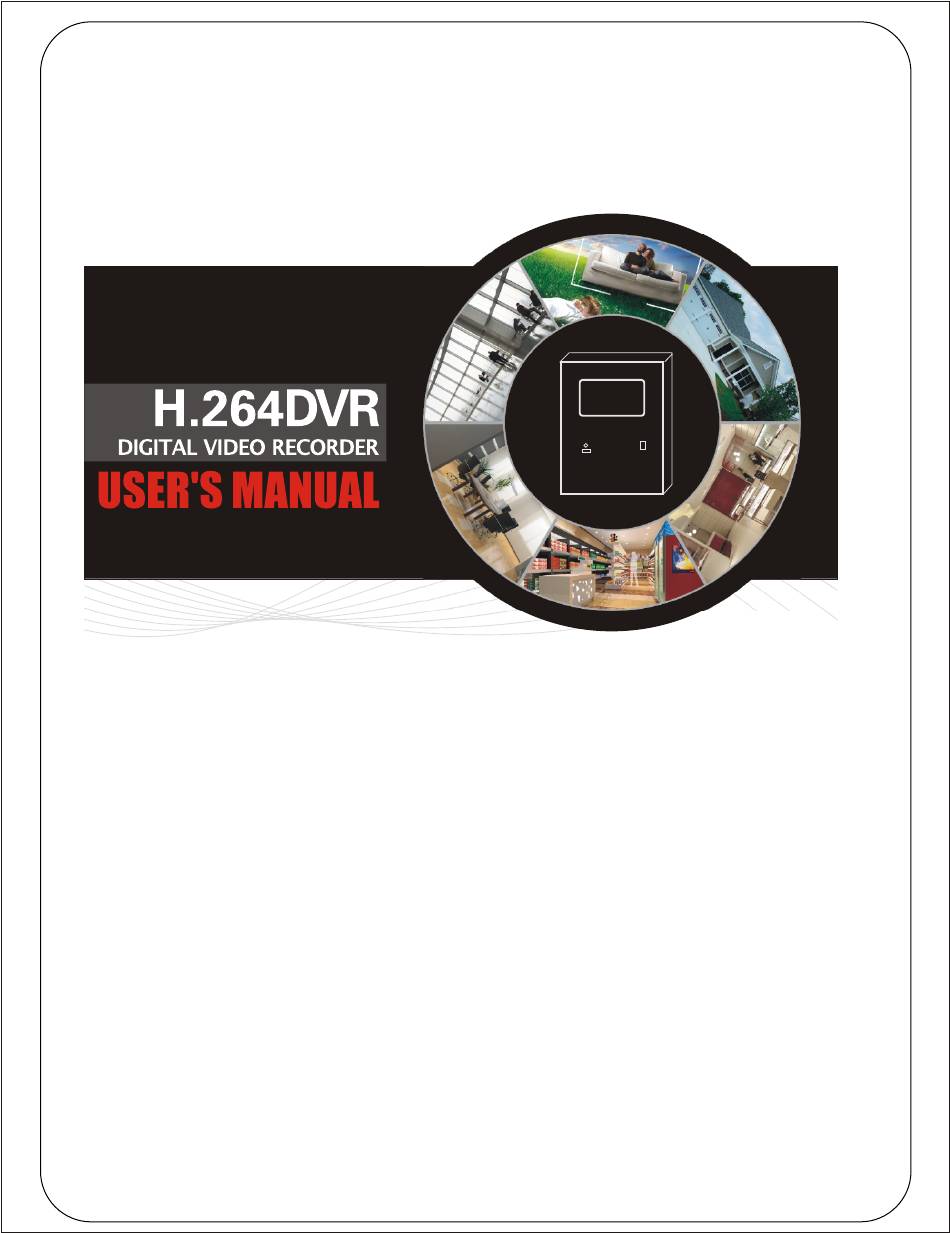

- Page 1 Wall Mount VERSION: 1.10...
- Page 2 WARNING Unauthorized reproduction of all or part of this manual is strictly prohibited. The figures in this manual are for illustration purposes only (may differ from the actual product). The specifications and design of the product are subject to change without prior notice for purposes of quality improvement.
-
Page 3: Table Of Contents
Table of contents Chapter 1 Panel Introduction 1.1 Description of front panel 1.2 Description of button 1.3 Hard Disk Drive installation 1.4 Connection instructions 1.5 Alarm connection instructions 1.6 Remote controller 1.7 USB mouse operations Chapter 2 Instruction of GUI 2.1 Power on 2.2 Power off 2.3 Live preview... -
Page 4: Chapter 1 Panel Introduction
WALL MOUNT DVR Version 1.10 Chapter 1 Panel Introduction Description of front panel A: Remote controller receiver B: USB port C: LCD screen D: Screen ON/OFF switch Description of button Button panel(4-ch) Button panel(8-ch) Button panel(16-ch) 1. Video Input 2. Video CVBS output 3. -
Page 5: Hard Disk Drive Installation
WALL MOUNT DVR Version 1.10 Hard Disk Drive Installation Chapter 1 Panel Introduction 1 Disconnect the power cable. 2. Turn the DVR over and open the cover bracket. 3. Mount the HDD properly on the bracket. 4. Connect the SATA data and power cable from Hdd to DVR. -
Page 6: Connection Instructions
WALL MOUNT DVR Version 1.10 Connection Instructions CH11 Audio input Camera16 Camera01 YPbPr output (1920 1080) Video output Video input Power port USB port Audio output VGA output SPOT Network user Network user Network user Alarm Connection Instructions 1) 1-4 is alarm input. "NC/NO/COM" is relay output. NC: OFF, NO: ON, COM: common port 2) "... -
Page 7: Remote Controller
WALL MOUNT DVR Version 1.10 Remote Controller 1. Installing the remote control Open the battery cover, install two batteries (Type No.7), make sure positive and negative poles are right, then close the battery cover. 2. Using the remote control Before using it, please confirm that batteries have been installed correctly. When using it, please aim IR TX (transmitter) of the remote control at IR reception of the DVR. -
Page 8: Usb Mouse Operations
WALL MOUNT DVR Version 1.10 Symbol Description Name Info key Press it one time to display the status bar on the top right of screen. Press it twice. to check the systems' information. Press it three times to check the log list. 4ch split Press it to 4ch split. -
Page 9: Chapter 2 Instruction Of Gui
WALL MOUNT DVR Version 1.10 Chapter 2 Instruction of GUI Power on Please make sure that if the system connection is correct. Please make sure the system format of DVR is the same as monitor's format. Please plug the power cable in DVR. When DVR power on, the power indicator light will turn to red. -
Page 10: Menu
WALL MOUNT DVR Version 1.10 1) Resolution: CIF resolution:352x288(PAL) 352x240(NTSC) D1 resolution: 720x576(PAL 720x480(NTSC) When change the resolution between CIF and D1, DVR will restart automatically. Power off Power off normally: Stop all the operation and back to preview status. Press the power key “ “... -
Page 11: Recording Start And Stop
WALL MOUNT DVR Version 1.10 2) Image quality: To set the image quality at high, middle and low 3) Frame rate: To modify the frame rate per second. 4) Audio: To set audio recording on and off. It only support 4ch audio maximum ding Please enter DISK MANAGEMENT to check the HDD information. -
Page 12: Motion Setup
WALL MOUNT DVR Version 1.10 2) Select the channels to playback. There are some choice for playback. You could select 1 channel, 2 channels, 3 channels,4channels to playback here. And if you want playback 8ch and 16ch together, you could press the "... -
Page 13: Alarm Setup
WALL MOUNT DVR Version 1.10 2.10 Alarm setup Enter alarm setup to proceed this operation. The type of alarm popup: video loss alarm, motion detection alarm, external alarm. Alarm mode: buzzer, relay, email. ALARM SETUP ALARM SETUP ALARM SETUP ALARM SETUP E-MAIL BUZZER RELAY... -
Page 14: Hdd Management
WALL MOUNT DVR Version 1.10 2.13 HDD management Enter Disk management to proceed this operation. 1) Overwrite: Select it to overwrite recorded video automatically when the HDD is full. If you didn’t select it, if will stop recording when HDD is full. And system will remind you to select this function or format HDD if you want to continue recording. -
Page 15: User Setup
WALL MOUNT DVR Version 1.10 Icon Descriptions Icon Descriptions To make speed dome rotate automatically Direction key, to move speed dome up,down, right and left Press it again to stop rotating. Zoom key To check the preset data already saved. To make preset setup Shut off PTZ and exit PTZ interface Modify parameters:... -
Page 16: User Shift
WALL MOUNT DVR Version 1.10 2.16 User shift Please enter USER LOGIN interface to shift the user and type correspond password. 2.17 Instruction of CMS You could control the DVR via CMS. If you want learn details, please refer to “client software instruction” attached in disk.
