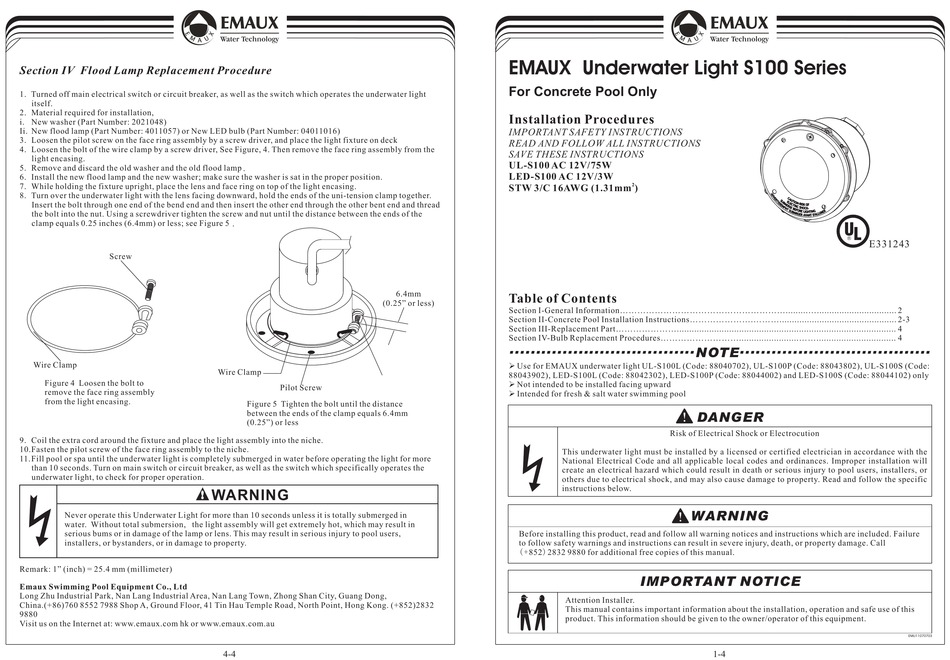

emaux S100 Series Installation Procedures

Section IV Flood Lamp Replacement Procedure
1. Turned off main electrical switch or circuit breaker, as well as the switch which operates the underwater light
itself.
2. Material required for installation,
i. New washer (Part Number: 2021048)
Ii. New flood lamp (Part Number: 4011057) or New LED bulb (Part Number: 04011016)
3. Loosen the pilot screw on the face ring assembly by a screw driver, and place the light fixture on deck
4. Loosen the bolt of the wire clamp by a screw driver, See Figure, 4. Then remove the face ring assembly from the
light encasing.
5. Remove and discard the old washer and the old flood lamp.
6. Install the new flood lamp and the new washer; make sure the washer is sat in the proper position.
7. While holding the fixture upright, place the lens and face ring on top of the light encasing.
8. Turn over the underwater light with the lens facing downward, hold the ends of the uni-tension clamp together.
Insert the bolt through one end of the bend end and then insert the other end through the other bent end and thread
the bolt into the nut. Using a screwdriver tighten the screw and nut until the distance between the ends of the
clamp equals 0.25 inches (6.4mm) or less; see Figure 5 .
Screw
Wire Clamp
Figure 4 Loosen the bolt to
remove the face ring assembly
from the light encasing.
9. Coil the extra cord around the fixture and place the light assembly into the niche.
10.Fasten the pilot screw of the face ring assembly to the niche.
11.Fill pool or spa until the underwater light is completely submerged in water before operating the light for more
than 10 seconds. Turn on main switch or circuit breaker, as well as the switch which specifically operates the
underwater light, to check for proper operation.
Never operate this Underwater Light for more than 10 seconds unless it is totally submerged in
water. Without total submersion, the light assembly will get extremely hot, which may result in
serious bums or in damage of the lamp or lens. This may result in serious injury to pool users,
installers, or bystanders, or in damage to property.
Remark: 1" (inch) = 25.4 mm (millimeter)
Emaux Swimming Pool Equipment Co., Ltd
Long Zhu Industrial Park, Nan Lang Industrial Area, Nan Lang Town, Zhong Shan City, Guang Dong,
China.(+86)760 8552 7988 Shop A, Ground Floor, 41 Tin Hau Temple Road, North Point, Hong Kong. (+852)2832
9880
Visit us on the Internet at: www.emaux.com hk or www.emaux.com.au
(0.25" or less)
Wire Clamp
Pilot Screw
Figure 5 Tighten the bolt until the distance
between the ends of the clamp equals 6.4mm
(0.25") or less
WARNING
4-4
EMAUX Underwater Light S100 Series
For Concrete Pool Only
Installation Procedures
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
UL-S100 AC 12V/75W
LED-S100 AC 12V/3W
STW 3/C 16AWG (1.31mm )
6.4mm
Table of Contents
Section I-General Information..................................................................................................... 2
Section II-Concrete Pool Installation Instructions.............................................................................. 2-3
Section III-Replacement Part............................................................................................................. 4
Section IV-Bulb Replacement Procedures......................................................................................... 4
...................................
Ø Use for EMAUX underwater light UL-S100L (Code: 88040702), UL-S100P (Code: 88043802), UL-S100S (Code:
88043902), LED-S100L (Code: 88042302), LED-S100P (Code: 88044002) and LED-S100S (Code: 88044102) only
Ø
Not intended to be installed facing upward
Ø
Intended for fresh & salt water swimming pool
This underwater light must be installed by a licensed or certified electrician in accordance with the
National Electrical Code and all applicable local codes and ordinances. Improper installation will
create an electrical hazard which could result in death or serious injury to pool users, installers, or
others due to electrical shock, and may also cause damage to property. Read and follow the specific
instructions below.
Before installing this product, read and follow all warning notices and instructions which are included. Failure
to follow safety warnings and instructions can result in severe injury, death, or property damage. Call
(+852) 2832 9880 for additional free copies of this manual.
Attention Installer.
This manual contains important information about the installation, operation and safe use of this
product. This information should be given to the owner/operator of this equipment.
2
....................................
NOTE
DANGER
Risk of Electrical Shock or Electrocution
WARNING
IMPORTANT NOTICE
1-4
