N E W T O N S M A R T
S H A D E S Y S T E M
Q U I C K P R O G R A M M I N G
I N S T R U C T I O N S
I n c l u d e s c o n t r o l f e a t u r e s, m o to r i n s t a l l a t i o n
i n s t r u c t i o n s & u s e r p r o g r a m m i n g s te p s

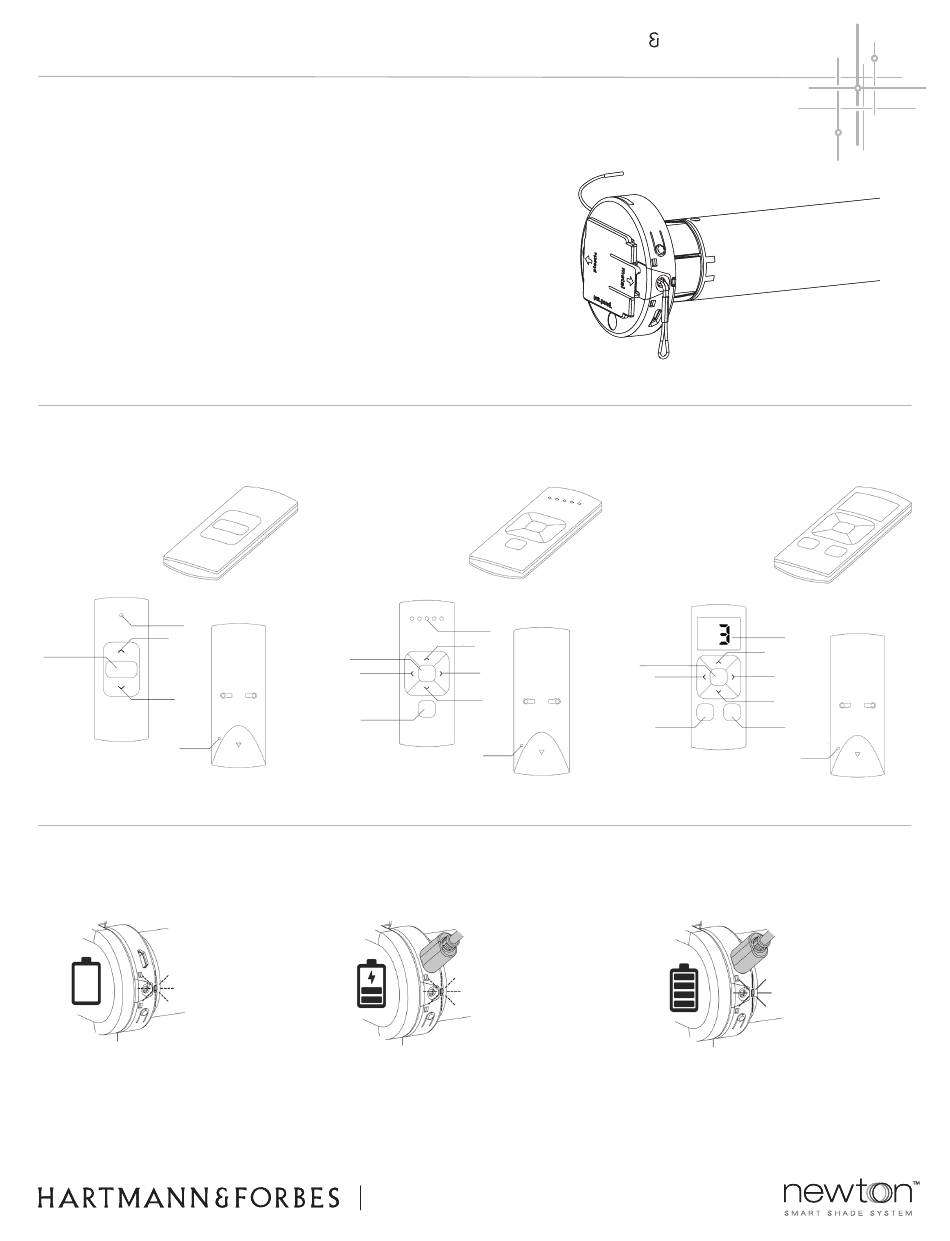

1 C h a n n e l R e m o te
For single shade
Channel
indicator
Up
Center
(stop/favorite)
Down
Pair
button
R E C H A R G E T H E B AT T E R Y
B a t te r y I s E m p t y
When the LED light flashes
red during operation, battery
needs to be recharged.
5 C h a n n e l R e m o te
For 2-4 shades
(4 shades / 1 all)
Channel
indicator
Up
Center
(stop/favorite)
Left
Right
Down
Channel
Selection
Pair
button
B a t te r y I s C h a r g i n g
Use a micro USB cable to charge
the motor. When the LED light
flashes green, battery is charging.
t f 8 8 8 . 5 8 2 . 8 7 8 0 | h a r t m a n n f o r b e s . c o m
t f 8 8 8 . 5 8 2 . 8 7 8 0 | h a r t m a n n f o r b e s . c o m
© 2 0 1 9 H A R T M A N N & F O R B E S , I N C . 1 1 . 1 9
© 2 0 1 9 H A R T M A N N & F O R B E S , I N C . 1 1 . 1 9
1
H
F
A U T O M A T I O N
15 C h a n n e l R e m o te
For 5-14 shades
(14 shades / 1 all)
Channel
indicator
Up
Center
(stop/favorite)
Right
Left
Down
Previous
Next
Channel
Channel
B a t te r y I s C h a r g e d
When the LED light is constantly
green; no longer flashing, the
battery is fully charged.
Pair
button
