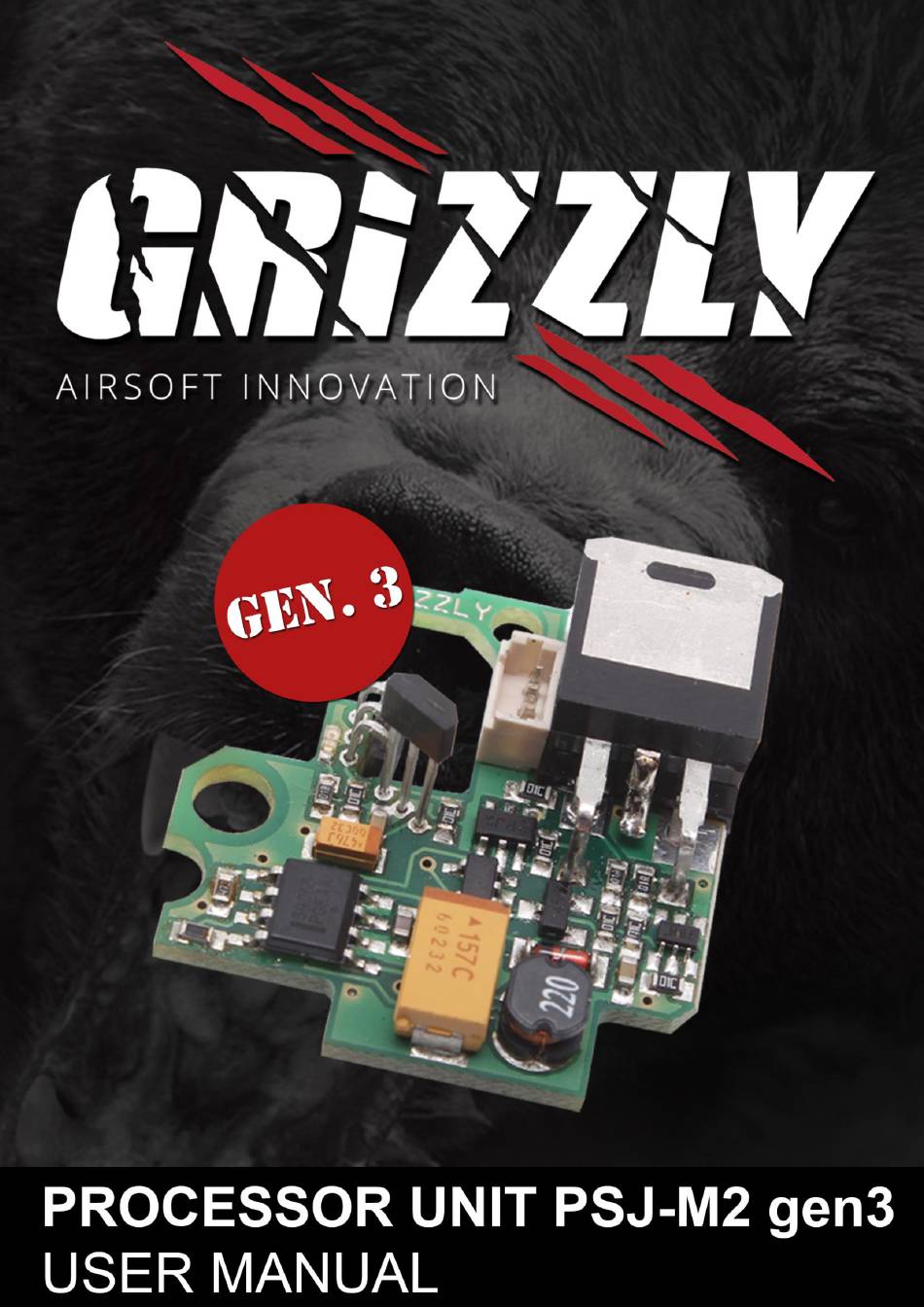

Summary of Contents for Grizzly PSJ-M2 gen3
-
Page 2: Basic Information
Content: 1) GEN.3 news overview 2) Basic information 3) Function overview 4) Technical parameters 5) PSJ-M2 installation 6) Fire modes and settings 7) Troubleshooting 8) Package content 1. GEN.3 news overview easier unit installation easier magnet installation, doesn´t matter on magnet‘s polarity ... -
Page 3: Technical Parameters
3.3. Special functions reset to default settings - you can simply reset all settings to their default values by trigger (see figure 5.2.) manual mode - if your PSJ indicates damage and you are sure it is not mechanical and your replica is able to shoot, you can access manual mode, in which malfunction is ignored and you can fire on full auto mode only - see figure 5.4 (WARNING! By poor judgement, you can cause more damage to your replica and the unit!) - Page 4 5. PSJ-M2 installation ! PSJ-M2 gen.3 should be installed by specialists only ! Advanced knowledge of AEG replicas is crucial. Also basics in electronics and soldering skills are needed. Never use soldering gun! Manufacturer takes no responsibility for damaged caused by unprofessional installation! 5.1.
- Page 5 5.3. Selector plate Insert prepared selector plate into position of your gearbox (pict.3). Check if the magnet is right above the probe, when selector is set on semi. If not, adjust magnet on selector plate. If you modify your own selector plate, you need to remove conductive contacts and remove part of selector plate where it meets cut-off lever.
- Page 6 Pict.5: Insterted selector plate 5.4. Cut-off lever installation Place the magnet on your cut-off lever, so in its default position, magnet almost touches the probe (pict.6). It is enough to use superglue. For correct installation, there is LED indicator on the unit (pict.8). For that to work connect unit with laboratory power source and insert piston gear.
- Page 7 Pict.7: Tested unit is connected to laboratory power source Pict.8: Cut-off lever movement, magnet is at the probe = LED lights Pict.9: Cut-off lever movement, magnet is above probe = LED doesn’t light...
- Page 8 5.5. Trigger prepartion Remove the top part of the trigger, so the top is in the same level (pict.10). Insert trigger into your gearbox and check if it goes smoothly. If not, adjust your trigger. Set the trigger to position, where you want your replica to fire and mark the center of the probe.
- Page 9 6. Fire modes and programming 6.1. Preset modes Selector on semi: Selector on auto: Semi Burst / Auto Semi Auto Semi Semi Semi Burst only Burst only Auto Burst only Burst / Auto 6.2. Unit programming For programming, connect battery and within 5 seconds press and hold trigger for another 5 seconds. Entering is confirmed by motor vibrating twice.
-
Page 10: Troubleshooting
Example of programming: First, I connect battery and press and hold trigger for 5 seconds. Double vibration sounds. I press trigger 3 times and then press and hold for 5s - I'm entering Fire mode setting. Enter is signalized by triple vibration. I press trigger, after every press vibrations tell me which mode I'm on. I pressed trigger 5 times, which means I choose number 5 (mode Burst only - Auto). -
Page 11: Package Content
– change it according to figure 5.2. 7.8. If is your installation unsuccessful. If is your installation unsuccessful, send your unit to our repair centre on followinng address: Grizzly Airsoft, Zizkova 84/7, 682 01 Vyskov, Czech Republic 8. Package content • processor unit PSJ-M2 •...
