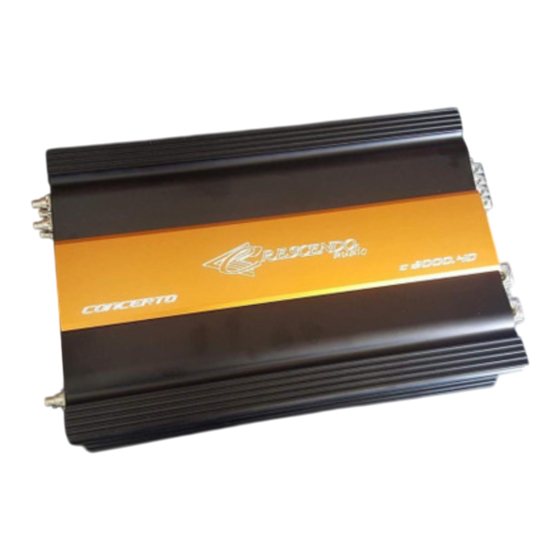

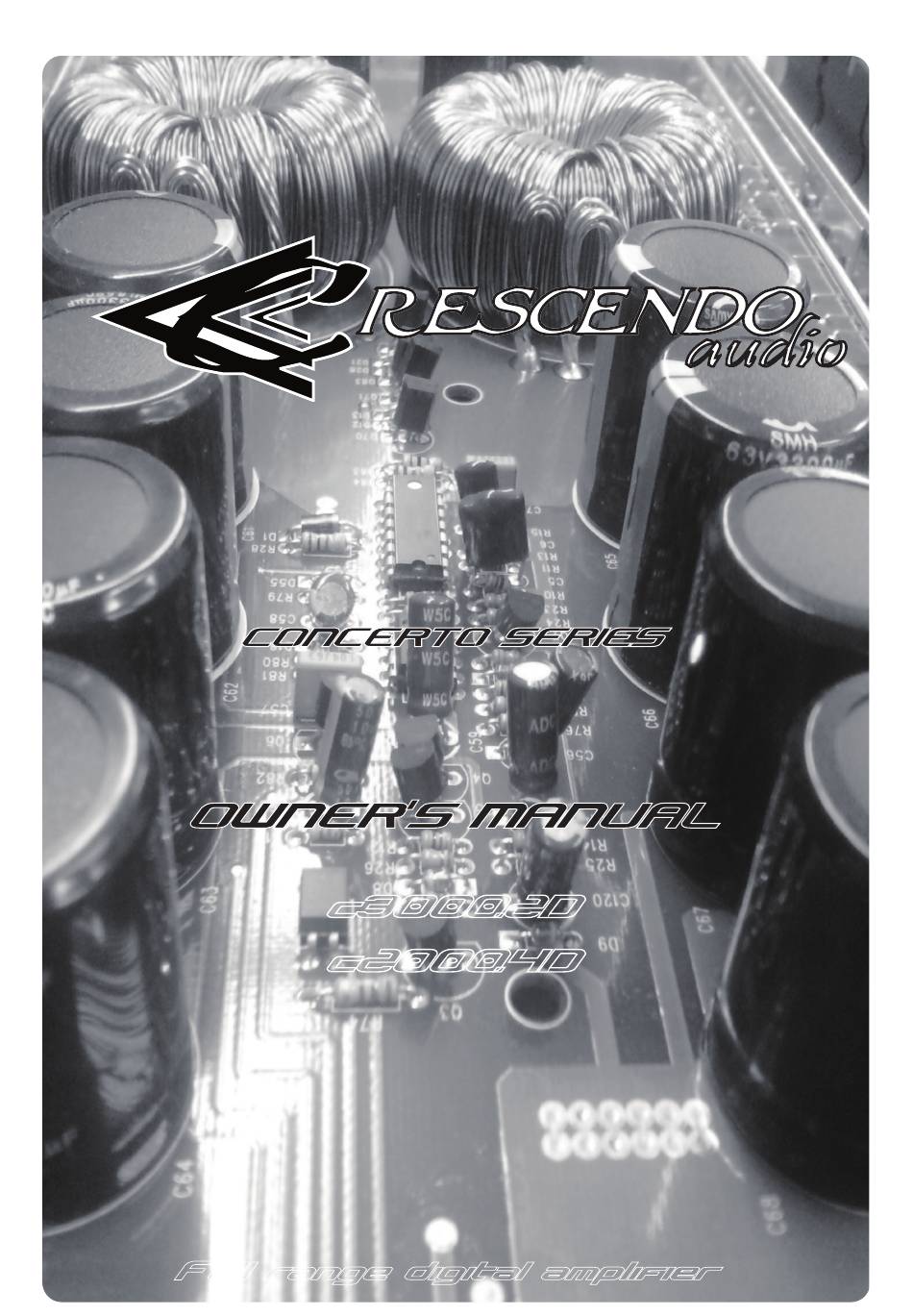

- Page 1 c3000.2D c2000.4D Full range digital amplifier...
- Page 2 INTRODUCTION Congratulations and thank you for purchasing your Crescendo amplifier, the logical choice in mobile audio amplification. Your amplifier has been designed and engineered with the highest quality components and top of the line workmanship to help you reach the superior sound you are after.
- Page 3 c3000.2D & c2000.4D CONTROLS & CONNECTIONS RCA INPUT LPF ( 50(500)~800(8K)HZ @ 12dB ) RCA INPUT : Control the low pass filter Connect preamp signal frequency forthe speaker outputs. cables from the source or the headunit to RCA input. When setting multiply x1, then the frequencies can be adjusted from 50Hz to 800Hz.
- Page 4 Concerto series c3000.2D & c2000.4D amplifiers are designed to use 0 gauge power and ground connection. Connect the power cables to power terminal + 12V. Concerto series c3000.2D & c2000.4D amplifiers are not equipped with fuses because they do not like to be bossed around. External fuses should be used.
- Page 5 SPEAKER OUTPUT This terminal connects Concerto series c3000.2D amplifier to your speakers . Minimum speaker cable should be 12 gauge or larger since our amplifiers put out epic power. Connect the speakers by checking the impedance as 1 ohm for STEREO or 2 ohm MONO c3000.2D Speaker connection diagram i...
- Page 6 SPEAKER OUTPUT This terminal connects Concerto series c2000.4D amplifier to your speakers . Minimum speaker cable should be 12 gauge or larger since our amplifiers put out epic power. Connect the speakers by checking the impedance as 2 ohm for STEREO or 4 ohm MONO c2000.4D SPEAKER CONNECTION DIAGRAM i...
- Page 7 TROUBLE SHOOTING NO SOUND ( NO OUTPUT ) @ Please check all connections, cables' rounting, short & voltage @ Please check the fuses , If they are blown, please replace with new one. @ Please check whether speakers work well, you can test speakers by connecting to another amplifier PROTECTION @ Please check overload, overheat ( thermal ), short and voltage, DC offset.
-
Page 8: Year Limited Warranty
1 Year Limited Warranty Crescendo Audio strives to satisfy every customer and make absolutely sure that every customer is fairly taken care of in the rare event that your amplifier malfunctions. Each new Crescendo amplifier is backed by a 1 year limited warranty from date of purchase.
