Summary of Contents for Crescendo audio BC2000D

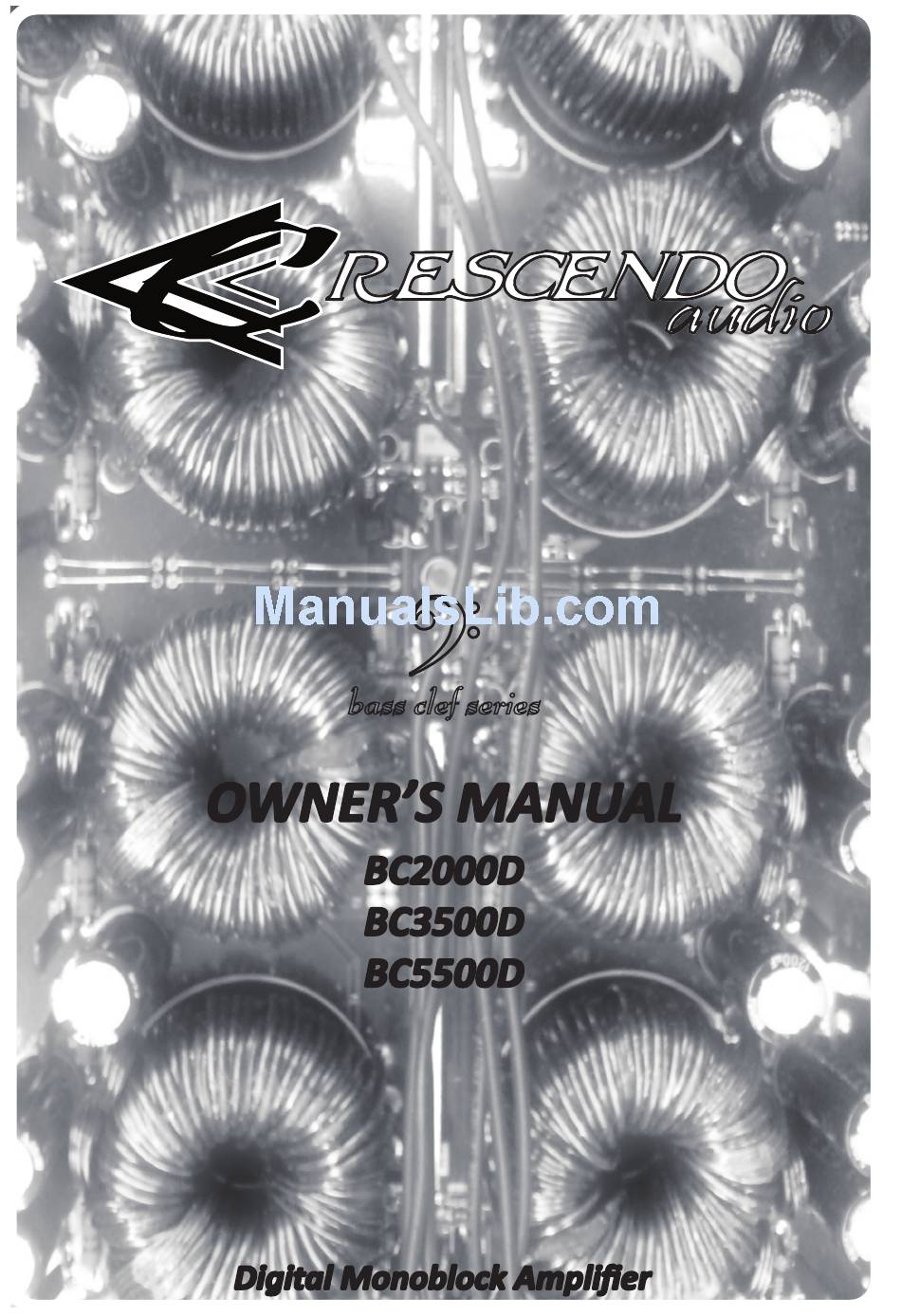

- Page 1 bass clef series...
- Page 2 0 gauge power & ground terminals. Working Voltage : BC2000D : 8.5V~16V, BC3500D & BC5000D : 8.5V~18V External fuses rate : BC2000D : 200A ( 400A for linked ) : BC3500D : >300A ( >600A for linked ) : BC5500D : >500A ( >1000A for linked )

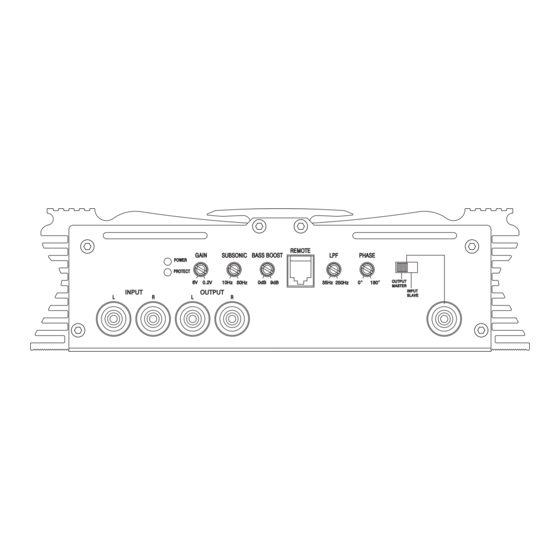

- Page 3 CONTROLS & CONNECTIONS RCA INPUT & OUTPUT POWER & PROTECT LED Blue-lit shows correct operation. RCA INPUT : Red-lit shows general malfunction, faulty Connect preamp signal cables from connection, or thermal protection. the source or the headunit to RCA input RCA OUTPUT : Output RCA jack to another amplifier.
- Page 4 12V ( POWER CONNECTION ) Before mounting amplifiers, disconnect the negative ( - ) cable from your grounded battery to protect any accidential damage to your awesome amplifiers and audio system. BC amplifiers are designed to use 0 gauge power and ground connection. Connect the power cables to power terminal + 12V.
- Page 5 SPEAKER OUTPUT This terminal connects the Crescendo BC amplifiers to your speakers . Minimum speaker cable should be 12 gauge or larger since our amplifiers put out epic power. Connect the speakers by checking the impedance as 1 ohm for single unit or 2 ohm for link connection. LINK CONNECTION INPUT CONNECTION ;...
- Page 6 POWER & SPEAKER CONNECTION ; Step 1. Connect speaker cable ( + ) on master amplifier to subwoofer ( + ) Step 2. Connect speaker cable ( + ) on slave amplifier to subwoofer ( - ) Step 3. Connect speaker cable ( - ) on master amplifier to speaker cable ( - ) on slave amplifier +12V SOURCE Remote Turn on...
- Page 7 Please make better airflow and no obstruction around amplifiers for thermal protection @ BC2000D’s working voltage is 8.5V ~ 16V BC3500D & BC5500D’s working voltage is 8.5V ~ 18V. @ When over 4V DC comes into amplifiers, then, they will be DC protected.
-
Page 8: Year Limited Warranty
1 Year Limited Warranty Crescendo Audio strives to satisfy every customer and make absolutely sure that every customer is fairly taken care of in the rare event that your amplifier malfunctions. Each new Crescendo amplifier is backed by a 1 year limited warranty from date of purchase.
