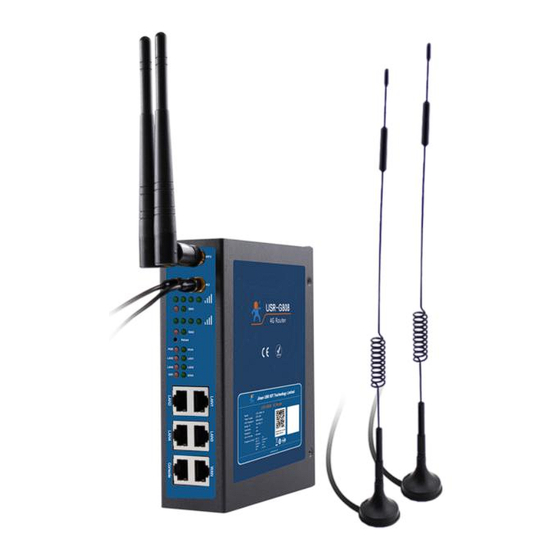

USR IOT USR-G808 User Manual

Hide thumbs Also See for USR-G808:
Table of Contents

Advertisement

Quick Links

USR-G808 User Manual

Technical Support:
h.usriot.com

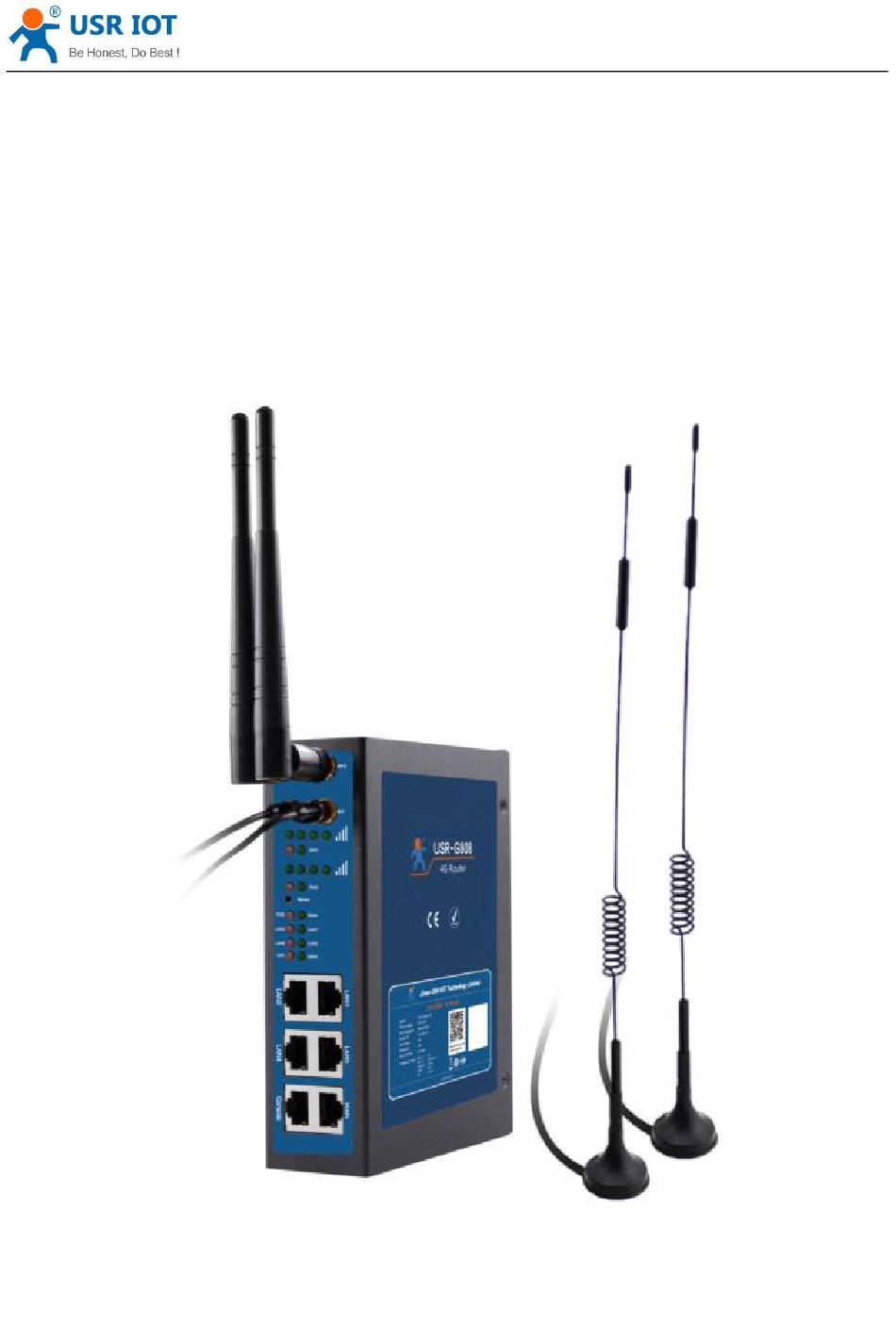

USR-G808 User Manual
File Version: V1.0.6
Jinan USR IOT Technology Limited
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USR-G808 and is the answer not in the manual?

Questions and answers

Related Manuals for USR IOT USR-G808

Summary of Contents for USR IOT USR-G808

  • Page 1: Usr-G808 User Manual

    USR-G808 User Manual Technical Support: h.usriot.com USR-G808 User Manual File Version: V1.0.6 Jinan USR IOT Technology Limited...

  • Page 2: Table Of Contents

    3.2.14.1. Basic Setting......................... 47 3.2.14.2. Port Forwards........................48 3.2.14.3. Traffic rules........................... 50 3.2.14.4. Custom Rules........................56 3.2.14.5. Restricting access......................... 56 3.2.14.6. Rate-limiting......................... 57 3.3. Basic Function...............................57 3.3.1. Network Diagnosis..........................57 3.3.2. Host Name and Time Zone........................ 58 Jinan USR IOT Technology Limited...
  • Page 3 3.3.5. Restore to Default Factory Settings....................60 3.3.6. Introduce LED............................ 60 3.3.7. Upgrade Firmware Version........................ 61 3.3.8. Reset..............................61 3.3.9. NTP..............................62 4. Configuring................................63 4.1. Webpage Setting............................63 4.2. Web Function..............................63 5. Contact Us................................65 6. Disclaimer................................66 7. Update History................................. 66 Jinan USR IOT Technology Limited...

  • Page 4: Get Start

    1. Get Start USR-G808 is a dual SIM 4G LTE WiFi wireless outer, with SIM card slot. Dual SIM cards provide a auto fail-over for higher stability and convenience. Simple setting and the router can work, user no need to care about the details.

  • Page 5: Net Connecting

     4G SIM cards *2  Diagram1.1-1 Testing Connection 1.2. Net Connecting Taking USR-G808 as an example Insert SIM cards, notice the direction  Connect the WIFI and 4G antennas to the correspond interface  Connect the net port of the PC to the LAN of the router via cable ...

  • Page 6: Web Log And Netting Testing

    1.3. Web Log and Netting Testing Initial parameters: Parameters Initial value Username root Password root 192.168.1.1 Form 1.3-1 Webpage Default Parameters Fill:192.168.1.1 into the browser, both the username and password are root, then enter. The webpage are as following: Jinan USR IOT Technology Limited www.usriot.com...

  • Page 7: Product Overview

    Dual 4G wireless router, G808 provides a solution for user accessing to net via WIFI or net port of the 4G. Adopting industrial CPU, work speeds reaching 580MHz, G808 provides reliable data transmission networking for the intelligent Jinan USR IOT Technology Limited www.usriot.com...

  • Page 8: Features

    HSPA/UMTS: B1/2/5/8 Southeast Asia GSM/EDGE: B2/3/5/8 Australia FDD:B1/2/3/5/7/8/28 —AU (Taiwan,China) TDD:B38/40/41 New Zeland HSPA/UMTS: B1/2/5/8 Latin America GSM/EDGE: B2/3/5/8 AT&T,T-Mobile/North America FDD:B2/4/12 —A WCDM:B2/4/5 Form 2.3-1 Model and Bands Project Instr Name USR-G808 4G wireless Jinan USR IOT Technology Limited www.usriot.com...
  • Page 9 Single LAN port full speed communication(4G normal DC12V 265mA 445mA +WALN normal ) LAN+WAN full speed communication(no 4G+WALN DC12V 230mA 345mA normal) DC12V 265mA 381mA Single WAN 口 full speed communication(no 4G+WALN normal ） Form 2.3-2 Consumption Parameters Jinan USR IOT Technology Limited www.usriot.com...

  • Page 10: Hardware And Dimension

    Supply DC:9-36V, standard5.5*2.1 supplier DC terminal power Supply range DC:9-36V, green terminal, size is 5.08mm-2P, note anti reverse WAN port WAN interface, 10/100Mbps, support Auto MDI/MDIX LAN port LAN interface, 10/100Mbps, support Auto MDI/MDIX Jinan USR IOT Technology Limited www.usriot.com...
  • Page 11 2* full frequency sucker antenna. Form 2.4-1 G808 Interface Parameters Note: please distinguish the WIFI antenna and 4G antenna via the mark . Diagram 2.4-2 Dimension Note: 160*122.46*45mm( no power terminal, antenna and antenna seat) Jinan USR IOT Technology Limited www.usriot.com...

  • Page 12: Function

    3.1. User Configuring After USR-G808 powered, it will access to 4G net and allow the devices under LAN access the external net. Please ignore the configuring if you using the common SIM card, powering on is ok. if you using APN card, setting the accurate address, if you need to use the VPN, port mapping and so on, reference to the related function chapter.

  • Page 13: Common Function

    Application diagram as follow, user can access internet through LAN interface or WLAN interface of G808: Diagram 3.1-1 Application diagram 3.2. Common Function 3.2.1. DDNS There are two situations to adopt DDNS function: G808 supports, user can choose one operator on ‘Service’( here we use the ddns.oray.com)  Jinan USR IOT Technology Limited www.usriot.com...
  • Page 14 Default disable, please enable it if you want to use. Setting step are as bellow: Diagram 3.2.1-2 DDNS Setting Webpage Please fill the parameters as the form below: Function Content Note Enable Choose the DDNS function Default disable, users can Jinan USR IOT Technology Limited www.usriot.com...
  • Page 15 Diagram 3.2.1-3 DDNS Setting Webpage This function supports accessing to the router via domain name remotely Parameters filled as below: apply a hostname to point you IP of the WAN username Password Function Content Note Jinan USR IOT Technology Limited www.usriot.com...

  • Page 16: Wifidog

    ② using in the advertisement. Collecting the information of he users under the router if they allow which is convenient for factories to promote. Note: default disable, please enable it at first Jinan USR IOT Technology Limited www.usriot.com...
  • Page 17 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.2-1 WIFIdog Configuration 1 Diagram 3.2.2-2 WIFIdog Configuration 2 Jinan USR IOT Technology Limited www.usriot.com...
  • Page 18 AP code WIFIdog server address E.g. www.xxx.cn Assist certification server address Internal interface br-lan The name of the LAN External interface eth0.2 Wired WAN port name ( if you access the net via 4G , Jinan USR IOT Technology Limited www.usriot.com...

  • Page 19: Remote Manager

    Please do not enable this function with MultiWAN!!! They can not be used at same time.  3.2.3. Remote Manager Remote Firmware Upgrade  User can configure this function by Web Server as follow: Diagram 3.2.3-1 Remote Firmware Upgrade Function Parameters setting (if will be need) Note Jinan USR IOT Technology Limited www.usriot.com...
  • Page 20 Parameters setting (if will be used) Note Enable remote monitor choose Default is disable Remote address Remote firmware upgrade server Default ycsj1.usr.cn address Port Remote monitor server port Default 30001 Heartpkt content The heartbeat package content Default heartpkt Jinan USR IOT Technology Limited www.usriot.com...

  • Page 21: Lan Interface

    Subnet mask: 255.255.255.0;  Enable DHCP Server function.  LAN interface functional diagram as follow:  Supports simple status statistics function  Diagram 3.2.4-1 LAN Interface Functional Diagram User can configure LAN interface as follows: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 22 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.4-2 LAN Interface configuration 1 Diagram 3.2.4-3 LAN Interface configuration 2 Jinan USR IOT Technology Limited www.usriot.com...

  • Page 23: Dhcp

    3.2.6. WAN Interface G808 supports one wired WAN interface.  WAN interface supports DHCP Client, static IP and PPPOE mode.  Default setting is DHCP Client mode.  User can configure WAN interface as follows: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 24 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.6-1 WAN Interface Configuration 1 Diagram 3.2.6-2 WAN Interface Configuration 2 Jinan USR IOT Technology Limited www.usriot.com...

  • Page 25: Wlan

    Radio on/off default be on  WIFI interface functional diagram as follow:  Diagram 3.2.7-1 WIFI Interface Functional Diagram Default settings of WIFI interface as follows: Parameters Default setting SSID USR-G808-XXXX(XXXX is MAC address) Password www.usr.cn Channel Auto Bandwidth 40MHz Encryption method WPA2-PSK Form 3.2.7-1WIFI Interface Default Settings...
  • Page 26 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.7-2 WIFI Setting Webpage Diagram 3.2.7-3 Modify the ESSID Jinan USR IOT Technology Limited www.usriot.com...
  • Page 27 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.7-4 Setting the WIFI Password User can change Radio on/off to off to close WIFI interface( effect immediately), network mode, channel and band width Diagram3.2.7-5 Other WIFI Setting Jinan USR IOT Technology Limited www.usriot.com...

  • Page 28: Dual 4G Interface

    The protocol of the 4G interface: please keep default and do not modify  The router using wired WAN port at first, then are the 4G nets.choose one interface in one application  If you using APN private card, refer to the APN setting chapter.  Jinan USR IOT Technology Limited www.usriot.com...

  • Page 29: Apn Setting

    AuthType and Check Registered (Seconds) as default settings. Diagram 3.2.9-2 APN Address Select Parameters name Function APN address Please fill the fight APN address,default is check automatically. Username Default none, please fill if you use the APN Jinan USR IOT Technology Limited www.usriot.com...
  • Page 30 Firstly, select the “custom” in the APN, and fill the right APN address in it. After setting ,please restart the router. Diagram 3.2.9-3 SIM card 1 Information Network format selection  The network format, default is automatically: 4G →3G →2G, and access to the net automatically. If what you need Jinan USR IOT Technology Limited www.usriot.com...
  • Page 31 In this webpage, there is the information of the SIM1 and SIM2 where display the detailed parameters to configuring. If there is some issue for netting, check here and you might find the question. Jinan USR IOT Technology Limited www.usriot.com...

  • Page 32: Network Backup

    For example: set the gateway hop of the 4G1 as 40, 4G2 as43 (note: no setting and no load balancing) Create two interfaces, here is wan_4g1 and wan_4g2, then add. Note:the name of the interface as same as the  above. Jinan USR IOT Technology Limited www.usriot.com...
  • Page 33 '1' option count '1' option reliability '1' list track_ip '114.114.114.114' option timeout '3' option interval '5' option down '3' option up '3' config interface 'wan_4g2' option enabled '1' option reliability '1' option count '1' Jinan USR IOT Technology Limited www.usriot.com...

  • Page 34: Vpn Client (Pptp、L2Tp、Ipsec、Openvpn、Gre、Sstp)

    If the PPTP has built(according to the different setting way to the different server, you can refer to the server configuring instr) Configuring PPTP client: If PPTP Server has been established, user can configure PPTP Client by Web Server as follows: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 35 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.12.1-1 PPTP Client Configuration 1 Diagram 3.2.12.1-3 PPTP Client Configuration 1 Jinan USR IOT Technology Limited www.usriot.com...

  • Page 36: L2Tp Client

    CHAP, and supports MPPE and L2TP OVER IPSEC encryption way. User can add a new interface with L2TP protocol by 3.2.12.1PPTP Client way and configure by Web Server as follow: Diagram 3.2.12.2-1 L2TP Client configuration 1 Jinan USR IOT Technology Limited www.usriot.com...

  • Page 37: Ipsec

    Network Authentication Protocol AH, ESP, IKE and some algorithms for network authentication/encryption. AH protocol and ESP protocol are used to provide security service, IKE protocol is used to key exchange. User can configure IPSEC by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 38 7. Local ID: tunnel local mark, can be IP or domain name,add @ when customize the domain name. 8. Remote address: the remote IP or address 9. Remote subnet:the terminal subnet and masks 10. Remote mark: tunnel remote mark, can be IP or domain name,add @ when customize the domain name Jinan USR IOT Technology Limited www.usriot.com...

  • Page 39: Openvpn Client

    OPENVPN is based on Openssl library. It supports bidirectional authentication based on certificate, that’s to say Client needs to certificate Server and Server needs to certificate Client. User can add a OPENVPN interface and configure it by Web Server as follow. Protocol can choose TUN(route mode) or TAP(bridge mode). Jinan USR IOT Technology Limited www.usriot.com...
  • Page 40 6. Local tunnel address:can setting the tunnel address of this port, e.g.192.168.10.1,default server distribute if not fill 7. Remote tunnel address:can setting the tunnel address of this port, e.g.192.168.10.1,default server distribute if not fill Jinan USR IOT Technology Limited www.usriot.com...

  • Page 41: Gre

    It can encapsulate some network layer protocols data(such as IP, IPX) to transmit on another network layer protocol. User can add a GRE interface and configure by Web Server as follow: Create interface: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 42 Diagram 3.2.12.5-1 GRE configuration Diagram 3.2.12.5-2 General Setup Basic parameters introduce 1. Remote address: the WAN port, IP address of the remote GRE 2. Local address: local WAN, 4G1, 4G2, these need to fill in Jinan USR IOT Technology Limited www.usriot.com...

  • Page 43: Sstp Client

    SSTP(secure socket tunnel protocol) is protocol which is applied for internet. It can create a VPN tunnel which can transmit on HTTPS. STTP can only used to remote access and doesn’t support site-to- site VPN tunnel. User can add a SSTP interface and configure by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 44 Technical Support: h.usriot.com Diagram 3.2.12.6-1 SSTP Client configuration Diagram 3.2.16-2 General Setup Basic parameters introduce 1. SSTP server: SSTP server IP or domain name 2. PAP/CHAP username: SSTP username 3. PAP/CHAP pass word:SSTP password Note Jinan USR IOT Technology Limited www.usriot.com...

  • Page 45: Static Routes

    Both the WAN of the A and Bin the net of the 192.168.0.0, the LAN port of the router A is subnet:192.168.2.0, and router B is 192.068.1.0. The create a route on the router A, so when we access the 192.168.1.X, then transfer to router B. Set the static route on the A Jinan USR IOT Technology Limited www.usriot.com...
  • Page 46 After the firewall setting, you can access to the PC5. The below picture shows it. Diagram 3.2.13-3 Router Function Testing 2 Note::default no static router, before using the function, please according to the detailed requirement. Jinan USR IOT Technology Limited www.usriot.com...

  • Page 47: Firewall

    As to the forward data package, forward the data package from the WAN to 4G is not allowed. For example: If add a new net interface, just like create a VPN interface, then you should add a rule to access the external. Jinan USR IOT Technology Limited www.usriot.com...

  • Page 48: Port Forwards

    Diagram 3.2.14.2-2 Port Forwards Configuration 2 Then save and apply to make it work. 192.168.1.172 is the PC under the LAN port of the router. After it works, the 100 port of the address that is under Jinan USR IOT Technology Limited www.usriot.com...
  • Page 49 APN（fixed IP：10.201.20.47） IP of the PC in 192.168.1.247 Listening port 12129 Form 3.2.14.2-1 Related Parameters Firstly, fill the APN address on the router: Diagram 3.2.14.2-3 4G net Port Forward Then, add the related port forward Jinan USR IOT Technology Limited www.usriot.com...

  • Page 50: Traffic Rules

    Traffic rules can filter the special internet data format selectively and prevent the internet from access. Strengthen the safety via this rules. The firewall is wide application range. Here introduced some common application. 1. IP address black list Enter the name in the new forward rule then add and edit Jinan USR IOT Technology Limited www.usriot.com...
  • Page 51 IP access the point IP, please fill the IP address and MAC address. Diagram 3.2.14.3-2 Firewall Black List 2 Select the WAN in the zone, remote address fill the IP forbidden to access. Select the reject, save and application, then save and apply Jinan USR IOT Technology Limited www.usriot.com...
  • Page 52 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.14.3-3 Firewall Black List 3 Diagram 3.2.14.3-4 Firewall Black List 4 Jinan USR IOT Technology Limited www.usriot.com...
  • Page 53 Select” lan” in the source zone and source address and source MAC address select”any”( if you want to allow point IP access the pointed external net, please fill the IP or the MAC address) as below: Jinan USR IOT Technology Limited www.usriot.com...
  • Page 54 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.14.3-5 Firewall White List 2 Destination zone please choose “wan” and fill the IP which is allowed to access, action access accept, then save and apply. Jinan USR IOT Technology Limited www.usriot.com...
  • Page 55 USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.2.14.3-6 Firewall White List 3 Jinan USR IOT Technology Limited www.usriot.com...

  • Page 56: Custom Rules

    If adding black list but fill no name in it, it is meaning the device can not access any. Diagram 3.2.14.5-1 Restricting access configuration Jinan USR IOT Technology Limited www.usriot.com...

  • Page 57: Rate-Limiting

    Limited the max down speed rate Unit:byte/s MAC limited Mac address of the device Form 3.2.14.6-1 Net Control Parameters 3.3. Basic Function 3.3.1. Network Diagnosis User can use network diagnosis function by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...

  • Page 58: Host Name And Time Zone

     3.3.2. Host Name and Time Zone G808 default host name is USR-G808 and default Time Zone is Beijing time zone. User can configure host name and Time Zone by Web Server as follow: Diagram 3.3.2-1 Host Name and Time Zone Configuration Note: 1.

  • Page 59: Web Server Password

    Shell command to study Parameters divide into min, hour, day, week, year, as below */1 * * * * echo crontest:`date` > /tmp/cron.log Every two minutes, fill the current date in the cron.log under the /tmp Jinan USR IOT Technology Limited www.usriot.com...

  • Page 60: Restore To Default Factory Settings

    When WIFI network work and keep light, blink if station access or the data transport. instr LTE modem 1 work in 2G (SIM1) instr LTE modem 1 work in 3G (SIM1) Signal The more SIM card 1signal instr light, the more strength the signal is. Jinan USR IOT Technology Limited www.usriot.com...

  • Page 61: Upgrade Firmware Version

    User can choose saving settings.  User should keep powering up and LAN/WIFI connection during the whole upgrading process.  3.3.8. Reset Reset time is about 40~60 seconds. Reset by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com...

  • Page 62: Ntp

    USR-G808 User Manual Technical Support: h.usriot.com Diagram 3.3.8-1 Reset Function 3.3.9. NTP Diagram 3.3.9-1 NTP Enable The router supports NTP(default enable it), and you can set the NTP server address. Jinan USR IOT Technology Limited www.usriot.com...

  • Page 63: Configuring

    Diagram 4.1-1 G808 Default Parameters Take default parameters as example: User can connect PC to SSID USR-G808-XXXX. Then open browser and enter 192.168.1.1, log in with User name and Password(both are root), user can enter Web Server. Please change language in the up right for the default language is Chinese.
  • Page 64 Network interface page：  Diagram 4.2-2 Interface Webpage, main is interface device including(LAN port and WAN port setting,WIFI wireless parameters DHCP/DNS and so on. Mainly is the device operating parameters setting. System page  Jinan USR IOT Technology Limited www.usriot.com...

  • Page 65: Contact Us

    Diagram 4.2-3 System System page, including login password,time setting, firmware upgrade, reset and so on. 5. Contact Us Company: Jinan USR IOT Technology Limited Address: Floor 11, Building 1, No. 1166 Xinluo Street, Gaoxin District, Jinan, Shandong, 250101, China Web: www.usriot.com Support: h.usriot.com...

  • Page 66: Disclaimer

    6. Disclaimer This document provides the information of USR-G808 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
