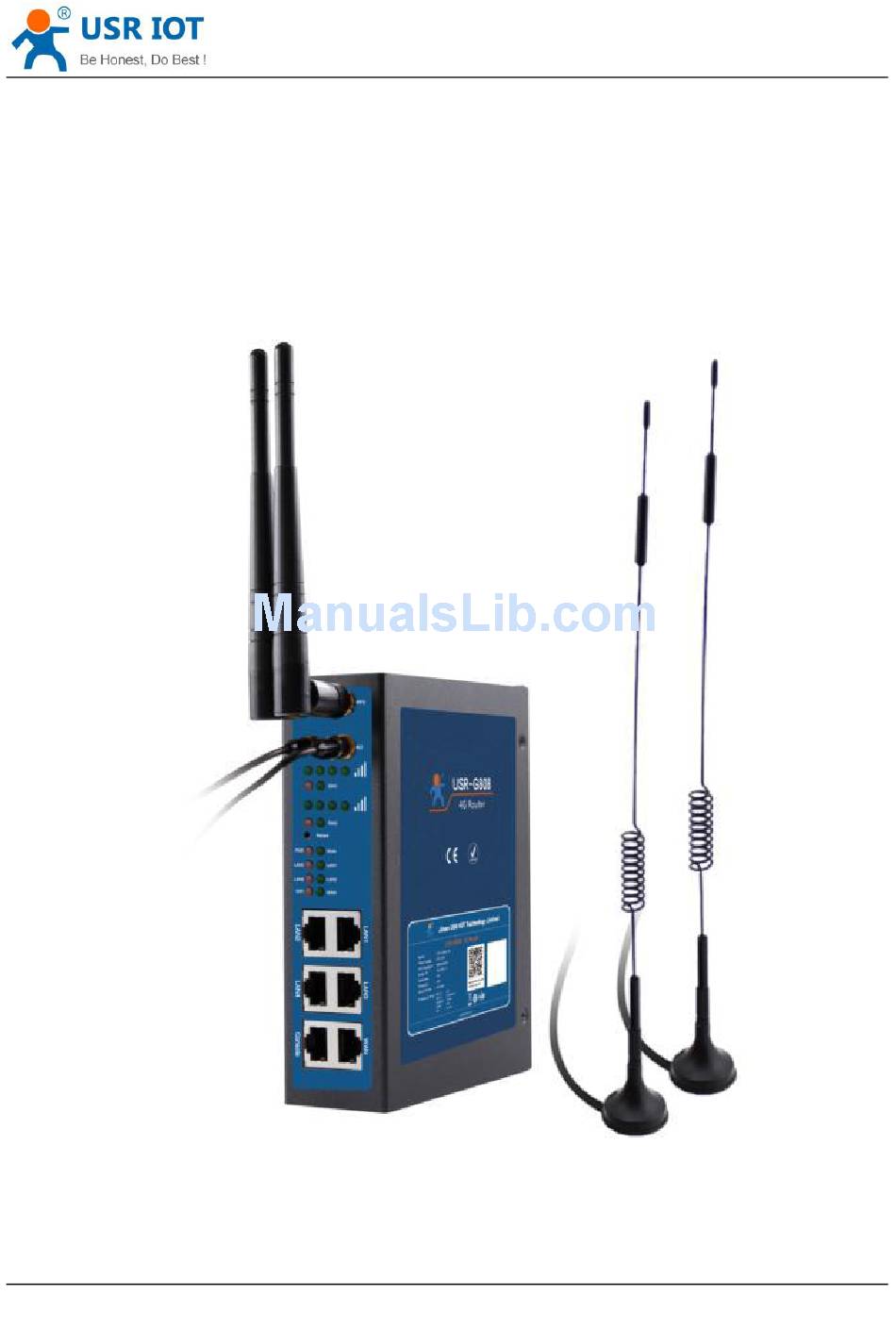

- Page 1 USR-G808 User Manual Technical Support: h.usriot.com USR-G808 User Manual File version: V1.0.4.1 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 2: Table Of Contents
2.2.11.2.Restricting access......................19 2.2.11.3.Rate-limiting........................19 2.3.Basic Functions............................20 2.3.1.Network Diagnosis........................20 2.3.2.Host Name and Time Zone......................20 2.3.3.Web Server Password........................ 21 2.3.4.Restore default settings......................21 2.3.5.Upgrade Firmware Version....................... 21 2.3.6.Reset..............................22 3. Web Server................................23 4. Contact us................................24 Jinan USR IOT Technology Limited www.usriot.com... - Page 3 USR-G808 User Manual Technical Support: h.usriot.com 5. Disclaimer................................24 6. Update History..............................24 Jinan USR IOT Technology Limited www.usriot.com...
-
Page 4: Overview
If you have any question, please submit it back to customer center: http://h.usriot.com 1.1. Brief introduction USR-G808 supports WAN, LAN, WLAN and dual 4G interface. User can access to 4G network by WLAN interface or Ethernet interface. 1.2. Product feature Support 4 LAN interface, 1 WAN interface. -
Page 5: Hardware Introduction
Support static routes, PPPOE, DHCP/static IP Support NTP, internal RTC Support watchdog to guarantee the system stability 1.3. Hardware introduction 1.3.1.Hardware dimension G808 dimension is 160*121*45 mm. Figure 2 Hardware dimension Jinan USR IOT Technology Limited www.usriot.com... -
Page 6: Product Functions
USR-G808 User Manual Technical Support: h.usriot.com 2. Product Functions This chapter introduces the functions of USR-G808, as the following diagram shown, you can get an overall knowledge of it. Figure 3 Product function 2.1.Application procedure 1.Power off the G808 and insert SIM card. -
Page 7: Apn
There are two situations to adopt DDNS function: G808 supports, user can choose one service provider on ‘Service’. G808 doesn’t support, user need choose ‘--custom--’ on ‘Service’ and write correct service provider. Jinan USR IOT Technology Limited www.usriot.com... -
Page 8: Wifidog
User need choose ‘Enable’ and ‘daemon enable’ to use WIFIdog function. After configuring and clicking ‘Save‘, user need reset G808 to make changing take effect. 2.2.3.RemoteManager 2.2.3.1.Remote Firmware Upgrade User can configure this function by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 9: 2.Remote Monitor
G808 supports four wired LAN interfaces(LAN1~LAN4). WIFI interface also belongs to LAN interface(wireless LAN interface). Default settings: Static IP (IP address: 192.168.1.1); Subnet mask: 255.255.255.0; Enable DHCP Server function. LAN interface functional diagram as follow: Jinan USR IOT Technology Limited www.usriot.com... - Page 10 USR-G808 User Manual Technical Support: h.usriot.com Figure 10 LAN interface functional diagram User can configure LAN interface as follows: Figure 11 LAN interface configuration Jinan USR IOT Technology Limited www.usriot.com...
-
Page 11: 1.Dhcp
Figure 12 DHCP Server configuration 2.2.5.WAN interface G808 supports one wired WAN interface. WAN interface supports DHCP Client, static IP and PPPOE mode. And default setting is DHCP Client mode. User can configure WAN interface as follows: Jinan USR IOT Technology Limited www.usriot.com... -
Page 12: Wifi Interface
150 meters WIFI coverage area in open field. WIFI interface functional diagram as follow: Figure 14 WIFI interface functional diagram Default settings of WIFI interface as follows: Parameters Default setting SSID USR-G808-XXXX(XXXX is MAC address) Password www.usr.cn Channel Auto Bandwidth... -
Page 13: Dual 4G Interface
User can change Radio on/off to off to close WIFI interface. 2.2.7.Dual 4G interface G808 supports dual 4G interfaces to access internet. 4G interface functional diagram as follow: Figure 17 4G interface functional diagram Jinan USR IOT Technology Limited www.usriot.com... -
Page 14: Load Balancing
PPTP is point-to-point tunnel protocol which uses one TCP connection(port 1723) to maintain tunnel. PPTP protocol will use GRE technology to encapsulate data into PPP data and transmit through tunnel, then encrypt or compress the PPP data. Jinan USR IOT Technology Limited www.usriot.com... - Page 15 Figure 20 PPTP Client configuration User can choose only MSChapV2 encryption in ‘Advanced Settings’ according to whether PPTP Server only supports MPPE encryption. And in Firewall Settings, user can choose WAN or LAN according to dialing way. Jinan USR IOT Technology Limited www.usriot.com...
-
Page 16: 2.L2Tp Client
AH protocol and ESP protocol are used to provide security service, IKE protocol is used to key exchange. User can configure IPSEC by Web Server as follow: Figure 22 IPSEC configuration Jinan USR IOT Technology Limited www.usriot.com... -
Page 17: 4.Openvpn Client
SSTP(secure socket tunnel protocol) is protocol which is applied for internet. It can create a VPN tunnel which can transmit on HTTPS. STTP can only used to remote access and doesn’t support site-to- site VPN tunnel. User can add a SSTP interface and configure by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 18: Static Routes
Figure 26 Static routes configuration 2.2.11.Firewall 2.2.11.1.Port Forwards This function can allow PC from internet access PC or service in private LAN. User can configure this function by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 19: 2.Restricting Access
Web Server as follow: Figure 28 Restricting access configuration 2.2.11.3.Rate-limiting This function can do network speed control for specified IP and MAC. User can configure this function by Web Server as follow: Figure 29 Rate-limiting configuration Jinan USR IOT Technology Limited www.usriot.com... -
Page 20: Basic Functions
Nslookup: Can analyse DNS into IP address 2.3.2.Host Name and Time Zone G808 default host name is USR-G808 and default Time Zone is Beijing time zone. User can configure host name and Time Zone by Web Server as follow: Figure 31 Host name and Time Zone configuration Jinan USR IOT Technology Limited www.usriot.com... -
Page 21: Web Server Password
Hardware restore: Press Reload button over 5 seconds and release, G808 will restore default settings and reset. User can also restore default settings by Web Server as follow: Figure 33 Restore default settings 2.3.5.Upgrade Firmware Version Upgrade by Web Server as follow: Jinan USR IOT Technology Limited www.usriot.com... -
Page 22: Reset
User can choose saving settings. User should keep powering up and LAN/WIFI connection during the whole upgrading process. 2.3.6.Reset Reset time is about 40~60 seconds. Reset by Web Server as follow: Figure 35 Reset function Jinan USR IOT Technology Limited www.usriot.com... -
Page 23: Web Server
USR-G808 User Manual Technical Support: h.usriot.com 3. Web Server When user need to configure the G808, user can connect PC to USR-G808 through LAN interface or WLAN, then open Web Server. Default parameters of G808 as follows: Parameters Defaults settings... -
Page 24: Contact Us
Tel: 86-531-88826739 5. Disclaimer This document provide the information of USR-G808 products, it hasn’t been granted any intellectual property license by forbidding speak or other ways either explicitly or implicitly. Except the duty declared in sales terms and conditions, we don’t take any other responsibilities. We don’t warrant the products sales and use explicitly or implicitly, including particular purpose merchant-ability and marketability, the tort liability of any other patent right, copyright, intellectual property right.
