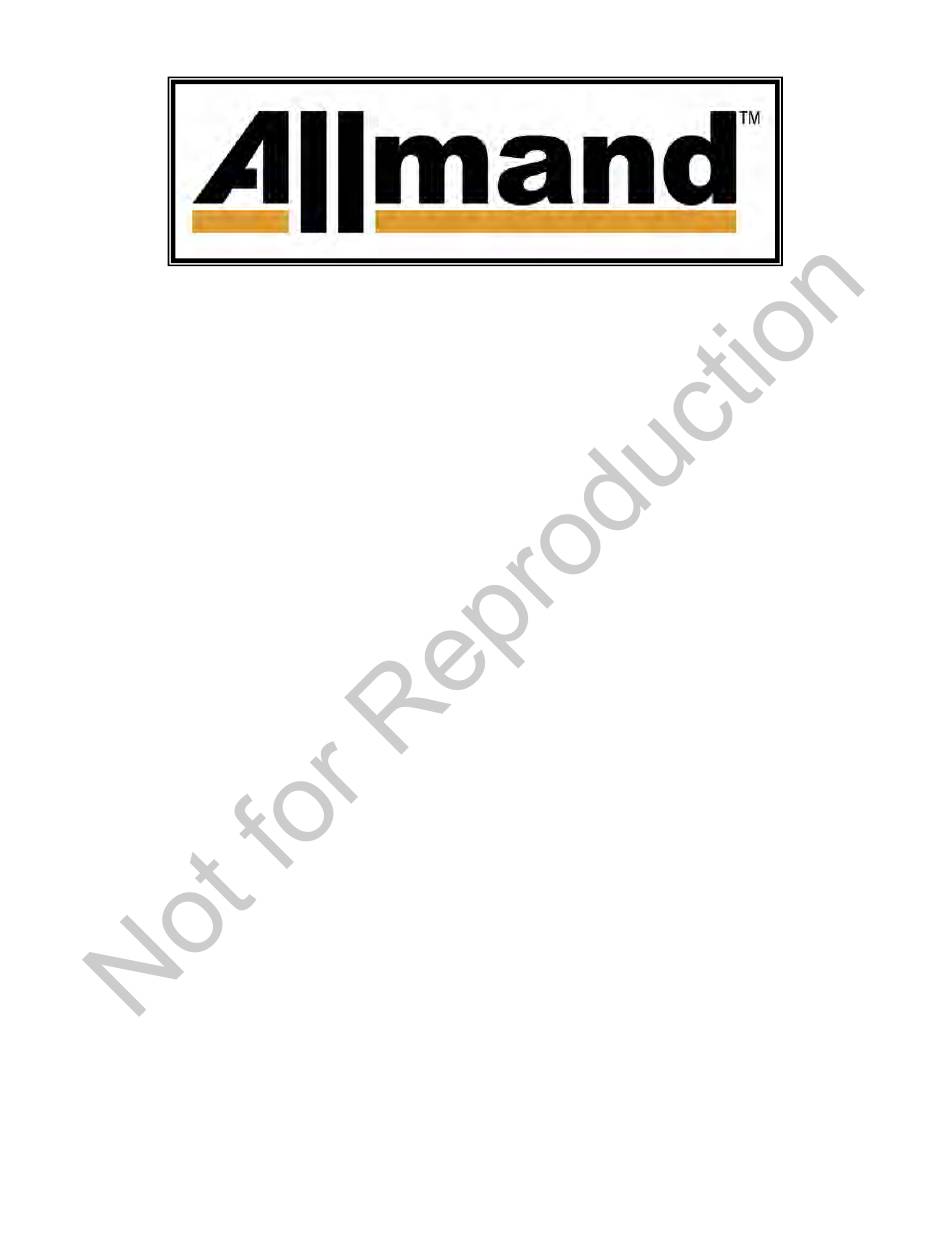

PORT-A-LITE
AUSTRALIAN STANDARD
OPERATOR'S
MANUAL
ALLMAND BROTHERS INC.
P.O. BOX 888
HOLDREGE, NE 68949
PHONE: (308) 995- 4495, 1- 800- 562- 1373
ALLMAND FAX: (308) 995– 5887
ALLMAND PARTS DEPT. FAX : (308) 995– 4883
www.allmand.com
PART NO 103586 REVISED JANUARY 2012
PORT-A-LITE
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PORT-A-LITE and is the answer not in the manual?

Questions and answers

Related Manuals for Allmand PORT-A-LITE

Summary of Contents for Allmand PORT-A-LITE

  • Page 1 OPERATOR’S MANUAL ALLMAND BROTHERS INC. P.O. BOX 888 HOLDREGE, NE 68949 PHONE: (308) 995- 4495, 1- 800- 562- 1373 ALLMAND FAX: (308) 995– 5887 ALLMAND PARTS DEPT. FAX : (308) 995– 4883 www.allmand.com PART NO 103586 REVISED JANUARY 2012 PORT-A-LITE...
  • Page 2 RECORD IMPORTANT INFORMATION Recording the equipment information will help when placing an order for replacement parts and/or decals. COMPANY Equip MENT No: Unit Model No: Unit Vin: Accessories:...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SAFETY DEFINITIONS SAFETY PRECAUTIONS SAFETY LABELS PREPARING THE UNIT FOR DELIVERY OPERATION PROCEDURES 8-10 SCHEMATIC WARRANTY NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...

  • Page 4: Introduction

    This instruction manual provides necessary instructions for the light tower. The information found in this manual is in effect at the time of printing. Allmand Bros Inc. may change contents without notice and without incurring obligation. If you are uncertain about any of the information in the manual, contact Allmand service department...

  • Page 5: Safety Definitions

    If you are uncertain about any of the information in the manual, contact Allmand service depart- ment at 1-800-562-1373, for clarification. Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
  • Page 6 SAFETY EXPOSURE HAZARD  Always wear personal protec- The safety statements that follow have tive equipment, including DANGER level hazards. appropriate clothing, gloves, work shoes, and eye and ELECTROCUTION HAZARD hearing protection, as required  Do not operate the light tower if by the task at hand.

  • Page 7: Safety Labels

    SAFETY SAFETY LABELS PREPARING THE UNIT FOR DELIVERY OR RENTAL The PORT-A-LITE light tower should be oper- ated properly and maintained properly for maxi- mum service life. Never deliver or put machine into service with known defects or missing in- structions or decals.

  • Page 8: Operation Procedures

    OPERATION MALE THTREE- OPERATION PROCEDURES PIN CONNECTOR Before operating the tower light, review Safety on page 5-6. To remove light fixture from storage on base and attach light fixture to mast prior to use: 1. Remove the light fixture nut handle and the three washers retaining the light fixture to the base unit and remove the light fixture from the storage bolt.
  • Page 9 OPERATION GRASP LIGHT FIXTURE HERE TO POSITION UP OR DOWN SPRING LATCH GRASP LIGHT FIXTURE HERE TO POSITION RIGHT OR LEFT TIPPING HAZARD Be sure to keep the base unit level before HOLES IN elevating tower. If the base unit is not level, INNER MAST the entire unit could become unstable and prone to tipping when extending the tower.
  • Page 10 OPERATION CORD (240V ) ELECTROCUTION HAZARD Do not operate the light tower if the insulation on the electrical cord or other electrical wiring is cut or worn or if bare wires are exposed. Repair or replace damaged wiring before putting unit into service.

  • Page 11: Schematic

    SCHEMATICS...

  • Page 12: Warranty

    WARRANTY...
  • Page 13 PARTS MANUAL ALLMAND BROTHERS INC. P.O. BOX 888 HOLDREGE, NE 68949 PHONE: (308) 995- 4495, 1- 800- 562- 1373 ALLMAND FAX: (308) 995– 5887 ALLMAND PARTS DEPT. FAX : (308) 995– 4883 www.allmand.com PART NO. 103586 REVISED JANUARY 2012 PORT-A-LITE...
  • Page 14 TABLE OF CONTENTS SHO 1000W LAMP SHO LAMP HOLDER MAST SECTIONS BALLAST AND CAPACITOR BASE DECALS...

  • Page 15: Sho 1000W Lamp

    SHO 1000W LAMP 1/27/12 PORT-A-LITE 530555 – 1000W LAMP ASSEMBLY NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P” NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...

  • Page 16: Sho Lamp Holder

    SHO LAMP HOLDER 1/27/12 PORT-A-LITE NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...

  • Page 17: Mast Sections

    MAST SECTIONS 1/27/12 PORT-A-LITE NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...

  • Page 18: Ballast And Capacitor

    BALLAST AND CAPACITOR 1/27/12 PORT-A-LITE NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...

  • Page 19: Base

    BASE 1/27/12 PORT-A-LITE NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...

  • Page 20: Decals

    DECALS 1/27/12 PORT-A-LITE NOTE: NS = NOT SHOWN. WHEN ORDERING, SPECIFY THE COLOR WANTED ON PARTS CONTAINING THE LETTER “P”...
