Summary of Contents for Kampa Rally 260

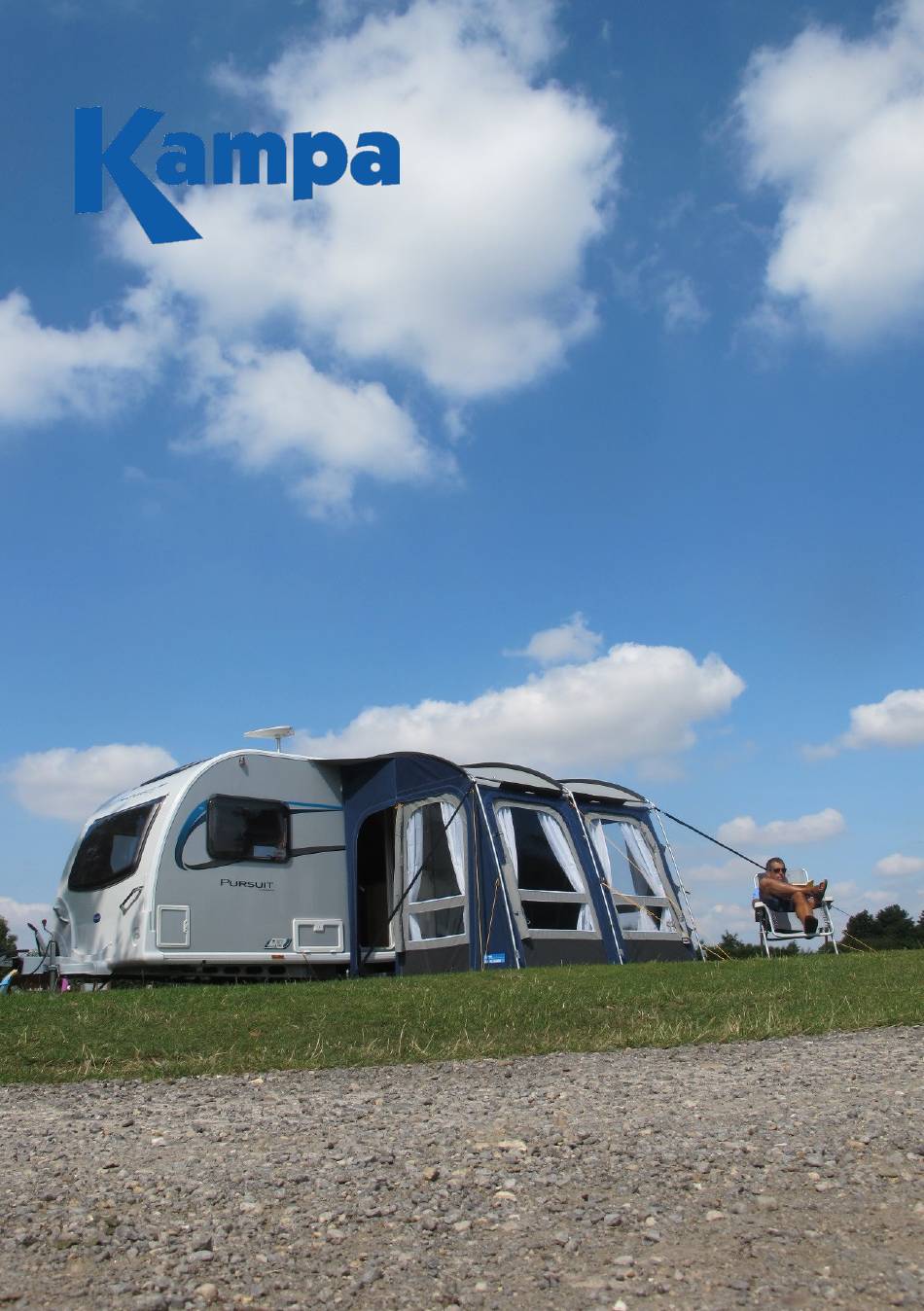

- Page 1 200, 260 & 390 Instructions & care manual Rally All Season 260 Some of the images shown in these instructions are other similar Kampa awnings and are for illustration purposes only. The Rally is a registered design exclusive to Kampa UK Limited...
- Page 2 WELCOME Thank you for purchasing your Kampa awning. Please read these instructions carefully before attempting to set up your awning and retain for future reference. If used properly, your awning should give you years of trouble free use. We recommend that your awning is insured against accidental and storm damage as this is not covered by the warranty.
- Page 3 Before using for the first time please check the contents of your awning Awning flysheet All Season curved aluminium roof poles All Season aluminium leg poles with adjustable feet sections All Season aluminium adjustable roof stretcher pole with a clamp both ends. All Season aluminium adjustable roof stretcher pole with plastic caps both ends.
- Page 4 SITING Choose a site that is flat and, if possible, protected from the wind. Try to set up your awning with the doors facing away from the wind. SET UP To protect your awning from dirt and damage, it may be beneficial to lay a groundsheet or awning carpet down before...
- Page 5 Attach the metal clips on the awning to the leg pole (7). Continue with the other poles. It may make assembly easier if you loosely guy out the two end poles as you progress. When all the legs are in position take the aluminium stretcher pole with the clamps and thread it through the outer horizontal sleeve just above the windows (8).
- Page 6 PEGS The Rally All Season awning comes complete with heavy duty pegs and wire pegs for pegging the mudwall. These will be suitable for many sites but there will be some instances where different pegs will be necessary. Your dealer will stock a range of pegs suitable for different types of ground.
- Page 7 CURTAINS & BLINDS The Rally All Season has two curtains to cover each window. They have curtain runners along their top edge that simply slide onto the curtain track sewn above each window (17). Use the plastic retainers to keep the curtains tidy during the day. MUD SKIRT The Rally comes with an internal and external mud skirt to keep out draughts.
- Page 8 SEAMS & WEATHERING The Rally All Season material has a PU blade pigment, anti-ageing & waterproofing, coating over its entire surface and the main seams of the awning are sewn with a special waterproof sewing thread. This thread swells when wet to fill the needle holes but the thread needs to become wet several times before it is totally effective.
- Page 9 Repairs to the flysheet should be made by a company recommended by Kampa or your supplying dealer. Repairs and alterations made by an unauthorised company...
- Page 12 Hanging Rail Designed to fit to the AccessoryTrack. Shown with optional Jack Hanger Kampa also produces an extensive range of awning furniture designed to complement your awning. Available from your Kampa specialist retailer. © mcl/Kampa/2015 Kampa UK Limited...
