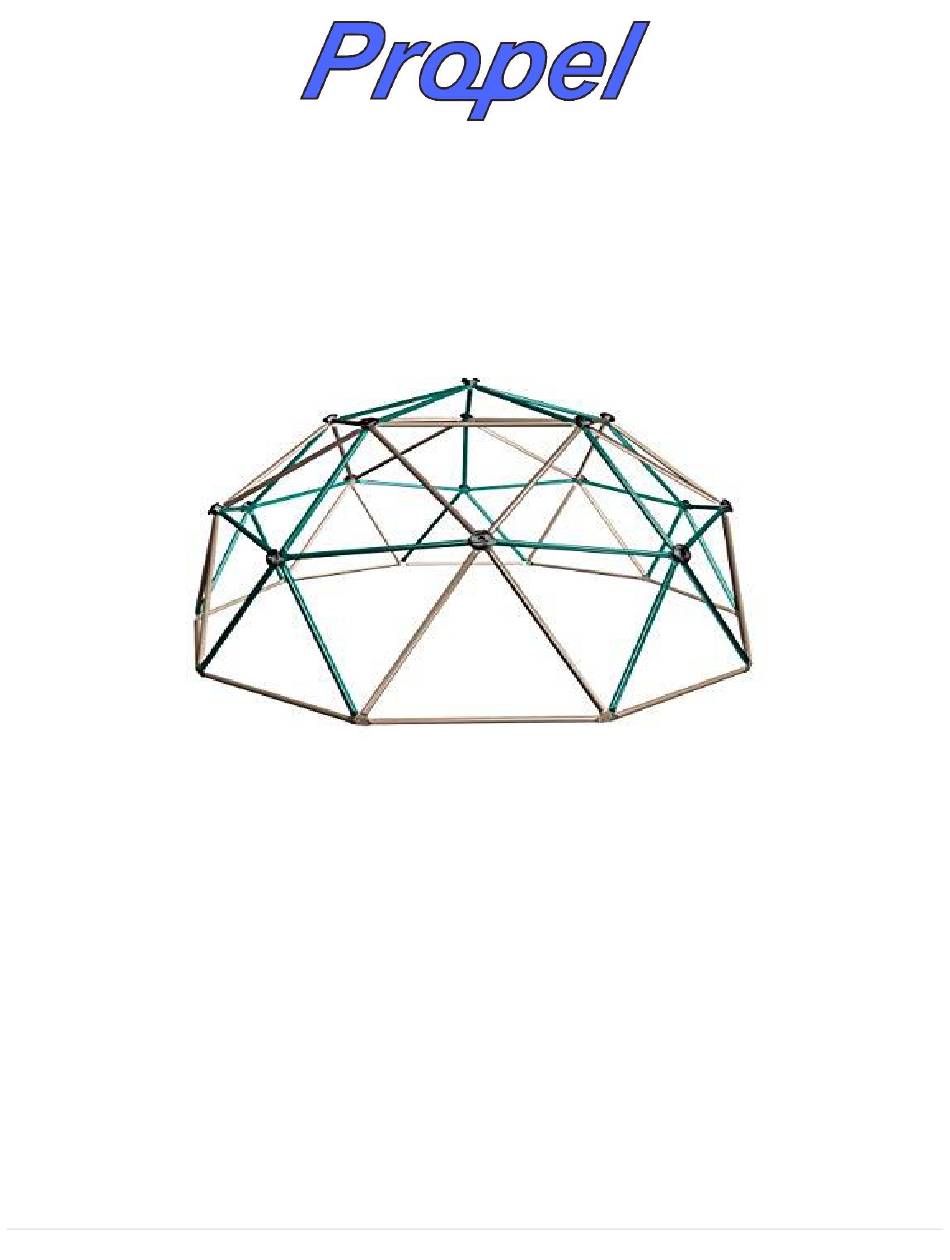

- Page 1 Assembly, Installation, Care, Maintenance, and User Instructions WARNING READ THESE MATERIALS PRIOR TO ASSEMBLING AND USING THIS JUNGLE GYM. Failure to assemble and use this Jungle Gym as specified in this manual will automatically void the warranty P a g e...
-
Page 2: Liability Disclaimer
All merchandise is sold on this condition. No representative of the company can waive or change disclaimer condition. WARNING This Jungle Gym has a maximum number of 4 occupants that may safely use the entire playset , with a maximum weight of 400 pounds. P a g e... -
Page 3: Before You Begin
BEFORE YOU BEGIN Thank you for purchasing a Propel Jungle Gym. This Jungle Gym comes equipped with warnings and instructions for its proper assembly, care, maintenance, and use. This information must be read by all supervisors and users before any person is allowed to use it. - Page 4 Observing the following statements and warnings reduces the likelihood of serious or fatal injury. Adult supervision is recommended for children of all ages at all times while the Jungle Gym is being used. Do not use the equipment in a manner other than intended.
- Page 5 and settle, and should be periodically refilled to maintain at least a 9-inch depth. b. Use a minimum of 6 inches of protective surfacing for play equipment less than 4 feet in height. If maintained properly, this should be adequate. (At depths less than 6 inches, the protective material is too easily displaced or compacted.) NOTE: Do not install home playground equipment over concrete, asphalt, or any other hard surface.
-
Page 6: Parts List
Parts List: Item Description 38 ½” Dark Green Tube 33 ¼” Tan Tube Handhold Hardware List: Item Description 8mm x 45mm Button Head Bolt 8mm x 25mm Button Head Bolt 8mm x 25mm Thru Nut 8mm Washer 13mm Nylock Nut/ White inside 13mm Nylock Nut/ Blue inside 5mm Allen Wrench 13mm Hand Wrench... - Page 7 Take a Bolt (LB), slide a Washer (WS) over top, then start by placing two of the Tan Tubes (TT) and place four of the Dark Green Tubes (GT) in the order shown from the picture below. Slide another Washer (WS) over the top of the 6 Tubes and the Bolt (LB). Place a Nylock Nut (NN) on top.
- Page 8 -Note: Repeat this step on all five figures assembled on Page 7. -Note: Make sure to use the 8mm x 25mm Bolt and the Nylock Nut. Ensure Nut is on the inside of the Jungle Gym as shown above for all bottom tubes. P a g e...
- Page 9 Place another Washer (WS) over the Bolt (LB) and a Nylock Nut (NN), make sure its only finger tight for now. -Note: The Jungle Gym should be stood upright to complete this step and the rest of the assembly. P a g e...
- Page 10 Add in an additional Tan Tube (TT). Undo Bolt from the two Green Tubes on top, add in the Tan tube. Put Hardware back through all 3 tubes, tightening it back down only finger tight. Repeat this step with the two Tan Tubes below. Now add in two more additional Tan Tubes (TT).
- Page 11 Repeat the steps from Pages 9 & 10 until you have all 5 star shape figures standing and bolted together in a full circle. This is what it should look like when those steps are completed. -Note: Only tighten down the Hardware finger tight. 11 | P a g e...
- Page 12 Add Dark Green Tubes (GT) to the existing joints all around the bottom of the Jungle Gym. There should already be Green Tubes on the bottom of all Green tubes. Starting by replacing the order of the tubes shown below. Remove the Hardware, put the bottom Green Tubes on the outside of the Jungle Gym.
- Page 13 Next step is to add in additional Green Tubes (Arrows) to the top section of the Jungle Gym. Starting with removing the Hardware and adding in a Green Tube, you should have 5 tubes on each Bolt. The Green Tubes you are adding in should be on the top as shown below. Only tighten down finger tight.
- Page 14 Slide a Bolt (LB) and Washer (WS) through the five Tan Tubes in the order shown below. Secure with a Washer (WS) and a Nylock Nut (NN). Tighten down completely. -Note: This is the top of the Jungle Gym. 14 |...
- Page 15 Taking the 5 Tan Tube figure you just made above and placing on top of the Jungle Gym, using another person to help hold while adding into the existing joints around the Jungle Gym. Go around and tighten all the bolts down. Do Not Allow Children to play on the Jungle Gym before the handholds are in place.
- Page 16 Your Jungle Gym should now look like the picture shown below. 16 | P a g e...
- Page 17 Attach all 16 Handholds (HH) to each of the joints except, not including the bottom 10 touching the ground. Attach the Handholds (HH) by sliding in the Thru Nut (TN) into the Handhold (HH). Secure each Handhold (HH) down with the Thru Nut (TN) to the existing Bolt (LB).
- Page 18 Make sure all Handholds are secure and will not spin around before children use the Jungle Gym. -Note: When moving the Jungle Gym, do not slide the Jungle Gym or tip it on its side. This may cause the Jungle Gym to lose its shape. Instead, use several people to lift the Jungle Gym and move it to the new location.
-
Page 19: Replacement Parts
DISASSEMBLY To disassemble (take apart) the Jungle Gym, follow the assembly steps in reverse order. Use gloves to protect your hands from pinch points while taking apart. REPLACEMENT PARTS To order replacement parts please visit our website at www.PropelTrampolines.com. If you need assistance ordering parts or have other questions about your Jungle Gym, please call the customer service number listed in the Information section of our website.
