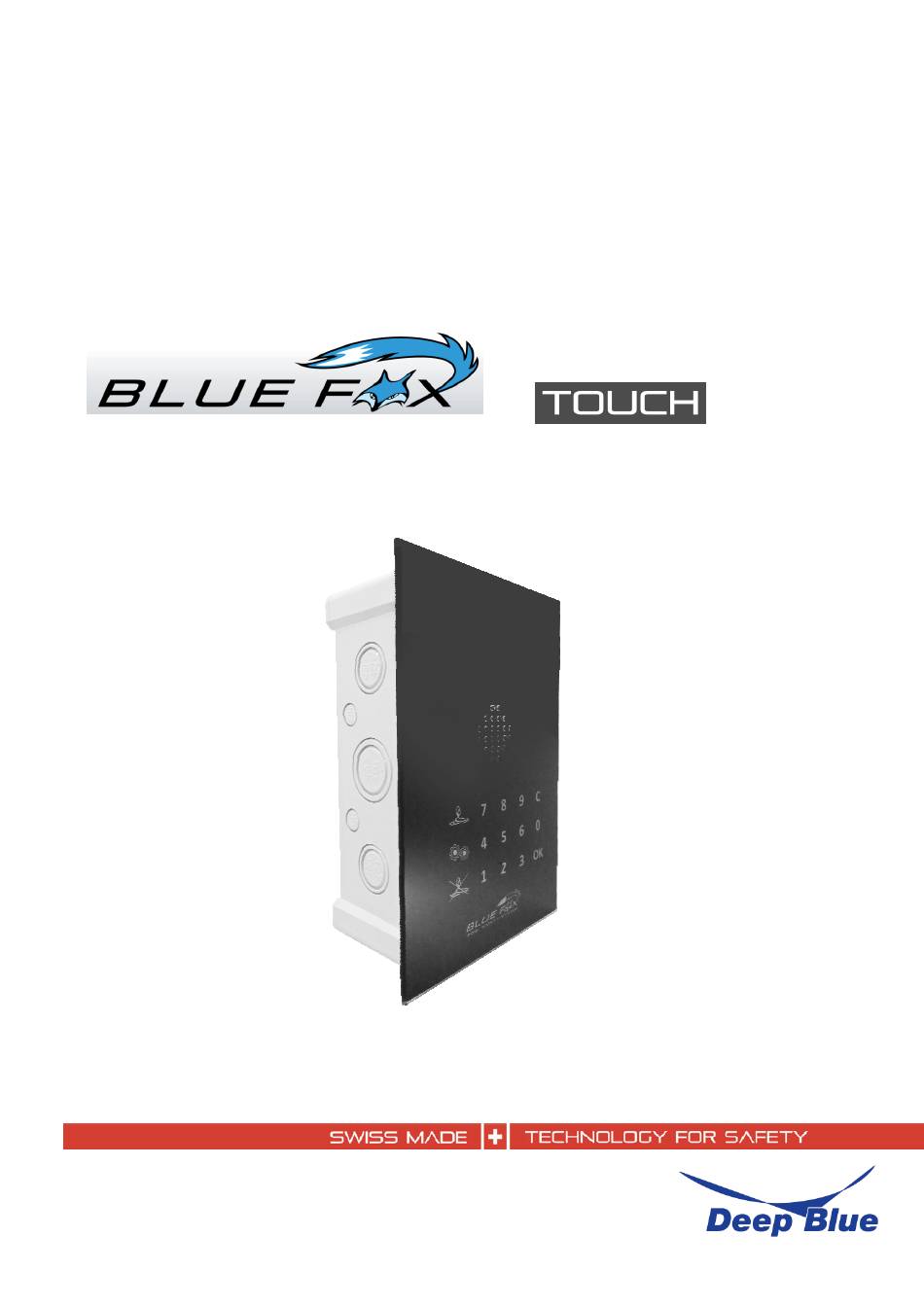

- Page 1 Installation Manual For Version: Safety Systems for Swimmingpools VE201504...
-
Page 2: Table Of Contents
Package contents Wiring Diagram Mounting Touch-Panel Conditions General preparations Selecting the location Preparation Touch-Panel Installation Touch-Panel Connection cable protection pipes with touch panel Connection Sensors 12V Connection Connection AC adapter Connection Glass Panel Internal connections Factory Settings Initiation... -
Page 3: Package Contents
Package contents Flush mount housing with Shield plate Glass-Control-Panel electronics Transformer / 10m calbe Radio alarm with power plug Power Supply SS.204 BF.600 12V SS.779 6 Blind Plug Socket Wrench 2mm SS.782 SS.187 Operating Instructions... -
Page 4: Wiring Diagram
Wiring Diagram... -
Page 5: Mounting Touch-Panel
Mounting Touch-Panel Conditions Use only the supplied AC adapter (PLC-30-12). • Do not mount the power supply in weat areas (pool area, showers). • The installation of the power supply must be performed by a licensed contractor • Power Supply AC 100-240V, 50/60Hz. •... -
Page 6: Preparation Touch-Panel
Preparation Touch-Panel ① ② ③ Unplug Piezo ①. • Unplug Power Supply ②. • Unplug High-Speed Data Cable ③. • Store the Glass-Touch-Panel in a safe place. • Prior the installation, the • supplied shield plate needs to be screwed to the flush- mounted box with the 4 screws. -
Page 7: Installation Touch-Panel
Installation Touch-Panel Prepare a niche in the size of 125x190x63mm (WxHxD) • Putt the touch panel into the niche and fix it. • Connection cable protection pipes with touch panel Remove the required number of dummy plugs. • Insert cable ducts Ø 20mm into the openings •... -
Page 8: Connection Sensors
Connection Sensors To connect the Sensor 1, lift the terminals, referred «Sensor 1» approx. 70°. Insert the 4 ① conductors (do not strip the insulation) into the terminals according to the color code ①. brown black blue white Insert the conductors until they become ②... -
Page 9: Connection Ac Adapter
Connection AC adapter Use only the supplied AC adapter (PLC-30-12). Connect the 12V cable according the markings on the adapter (+/-) -
Page 10: Connection Glass Panel
4 Connect Glass Panel 4.1 Internal connections Piezo ② ③ Piezo ③ ② ① Connect the High-Speed Data Cable ①. • Connect the Power Supply ②. • Connect the Piezo ③. • Fit the Glass Panel back to the Box and fix it with the screws supplied. •... -
Page 11: Factory Settings
Factory Settings 0000 - change of operating mode possible without a PIN Sensitivity of the pool 2 (medium sensitivity) sensors Time delay for auto- 0 (does not automatically change to matically changing to passive mode) passive mode Siren activated (the siren sounds in the case of an alarm) Initiation Please see separate Operating Instructions... - Page 12 Deep Blue AG Engenbühl 130 CH-5705 Hallwil Switzerland Tel: +41 (0) 62 767 77 99 www.bluefox-poolsafety.com bluefox@deepblue.ch...
