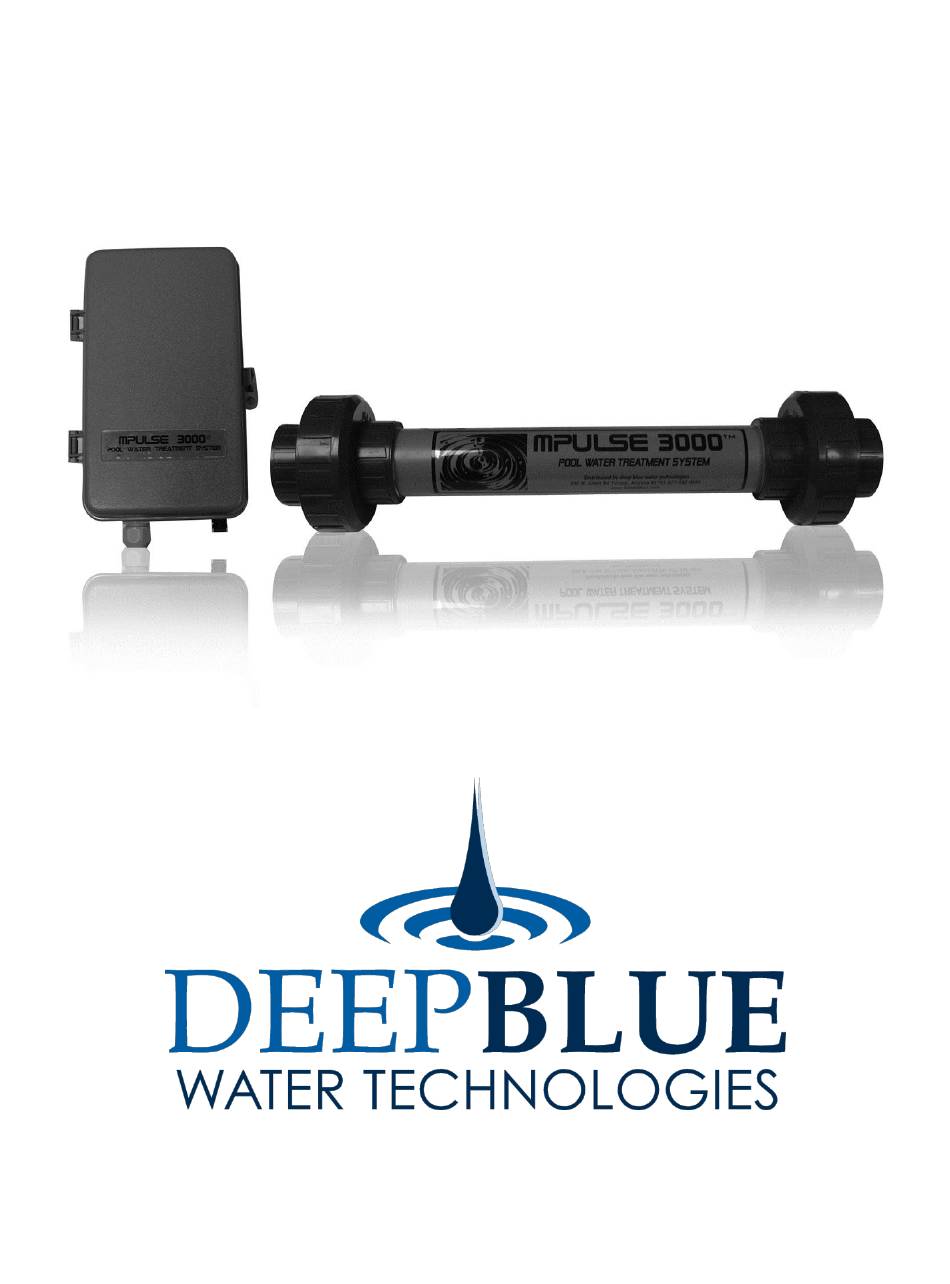

- Page 1 ® mPULSE3000 Pool water treatment system Instruction & Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents Page Installation Instructions Low Voltage Connection Instructions Instructions for use with Salt Water Generator Instructions for Voltage Manual Select Switch Field Installation Instructions Trouble Shooting Regular Maintenance & Specifications 9-10 Warranty Registration 877-882-4695... -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS (PLEASE READ CAREFULLY AND THOROUGHLY BEFORE INSTALLING) INSTALLATION SHOULD ONLY BE PERFORMED BY AN AUTHORIZED PROFESSIONAL 1. The Chamber must be installed in line on the return side (after the filter) to the pool: a. Primary position: after the heater, before any salt/chlorination system. b. -
Page 4: Low Voltage Connection Instructions
LOW VOLTAGE CONNECTION INSTRUCTIONS SIMPLY FIT THE FEMALE END OF THE PLUG ON THE LOW-VOLTAGE CABLE THAT CONNECTS TO THE CHAMBER ONTO THE MALE END ON THE ELECTRONIC CONTROL BOX, WHICH IS LOCATED ON THE UNDERSIDE OF THE BOX. -
Page 5: Instructions For Use With Salt Water Generator
USING THE MPULSE 3000 WITH A SALT WATER ® CHLORINE GENERATOR OR AN OVER- CHLORINATED SWIMMING POOL CAUTION: THIS OPERATION SHOULD ONLY BE COMPLETED BY A PROFESSIONAL After completely removing power from the input power source using a suitable disconnect or by unplugging the product, remove the protective plate by removing the three screws holding it on. -
Page 6: Instructions For Voltage Manual Select Switch
FOR SWIMMING POOL PROFESSIONALS ONLY TO SWITCH FROM A 220/230V UNIT TO 110/115V UNIT After turning off the power to your unit, remove the protective plate by removing the three screws holding it on. You will see the equivalent of the above diagram. Note the circled Voltage Select Switch. -
Page 7: Field Installation Instructions
FOR SWIMMING POOL PROFESSIONALS ONLY If existing AC cabling is not long enough for installation, external wiring and conduit can be installed to the box. When installed with conduit, the unit should be connected to an AC branch circuit with a maximum 20 A circuit breaker or fuse which meets the requirements for branch circuit protection. -
Page 8: Troubleshooting
TROUBLESHOOTING WHAT TO DO WHEN THE “FUNCTION” LED LIGHT COMES During normal operation of your MPULSE 3000 , the Power LED will be illuminated ® blue and the Function LED red light will be extinguished. Use either conductivity switch position A or B as long as the LED red light is extinguished. Whenever power is applied to the Electronic Control Box, the Function LED will briefly illuminate and then turn off if the Electronic Control Box does not detect any Fault Conditions. -
Page 9: Regular Maintenance & Specifications
® MPULSE 3000 CONDITIONS IN REGARDS TO USE OF THE POOL WATER TREATMENT SYSTEM ® Results of use with the MPULSE 3000 Pool Water Treatment System may vary. As with any swimming pool product of this nature, overall success depends on many factors which include but are not limited to: ... - Page 10 Insulation Strip length - 5/16" IMPORTANT NOTE The mPULSE3000 does not remove calcium and due to evaporative conditions, calcium will still be visible in SPLASH ZONES around water features, zero edge pools and spillways the calcium will be evident unless the water is continuously reintroduced into the main body of water which continuously retreats the calcium.
-
Page 11: Warranty Registration
® MPULSE 3000 Pool Water Treatment System Limited Residential Guarantee Warranty Certificate ® To the Original Consumer of the MPULSE 3000 Pool Water Treatment System ® The MPULSE 3000 Pool Water Treatment System is comprised of two basic components: 1. The Electronic Control Box 2.
