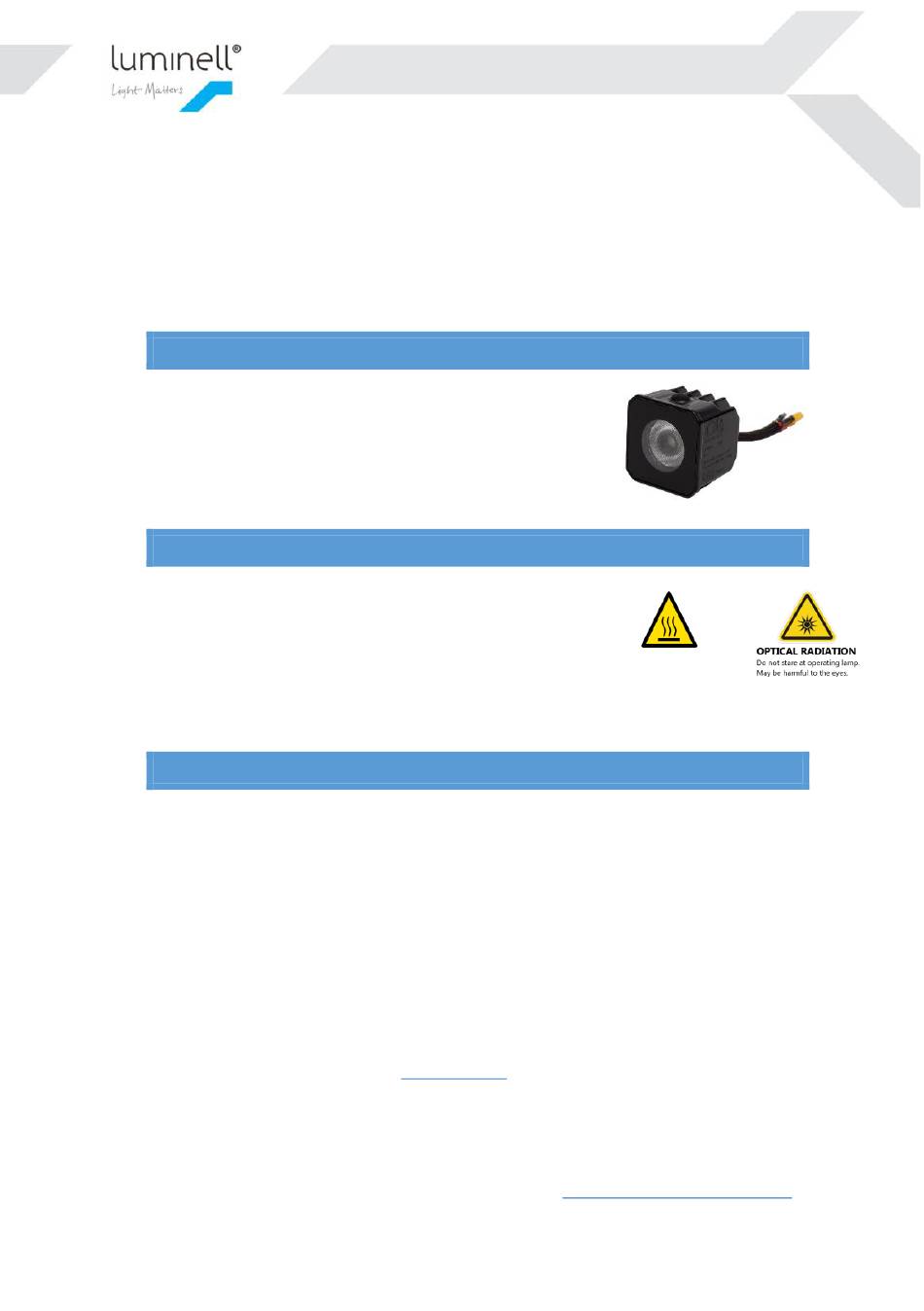

DL A DRONE LIGHT MODULE
Thank you very much for choosing the DL Series drone lights, and congratulations with your new product. We hope that
you will enjoy it and that it will serve you in whatever you use it for. Please feel free to contact us for any types of
feedback.
GENERAL INF ORMATION
The DL Series is created to push limits and maximize the potential in LED
technology and optical performance.
DL A is developed with focus on high light performance, low weight and smart
control functions. The DL A series has two different beam options as standard: 15
and 40 degrees.

SAFETY

-
When operating, keep the area in front free for obstacles. Do not
place face down.
-
Do not look directly at lamp when switched on.
-
Depending upon the ambient temperature and airflow the
housing will become HOT.
-
Only for professional use, must be operated by qualified personal.
TECHICAL DATA
Input voltage
Current
Measured lumens
LUX / 1m
Weight
Dimensions
Surface temperature
More technical information in the datasheet:
Luminell Drone Light AS
Mail: dronelight@luminell.com – Phone: +47 70 10 10 70 – web:
DL A User Manual v1.2
USER MANUAL
11-36 VDC
1,8A @ 11,1 VDC (20W)
500 – 2.000 lm depending on beam
2.900 – 103.500 cd depending on beam
125 grams
55x55x55 mm / 2,16x2,16x2,16 Inches
Maximum 80 degrees C
DL Series datasheet
Myrabakken Næringssenter Bygg 2, NO-6010 Ålesund, Norway - Org.nr 921 173 911
HOT SURFACE
1.
Standard RC PWM 3-5V 50-1000Hz
2.
www.luminell.com/products/drone-lights/
Side 1 av 4
