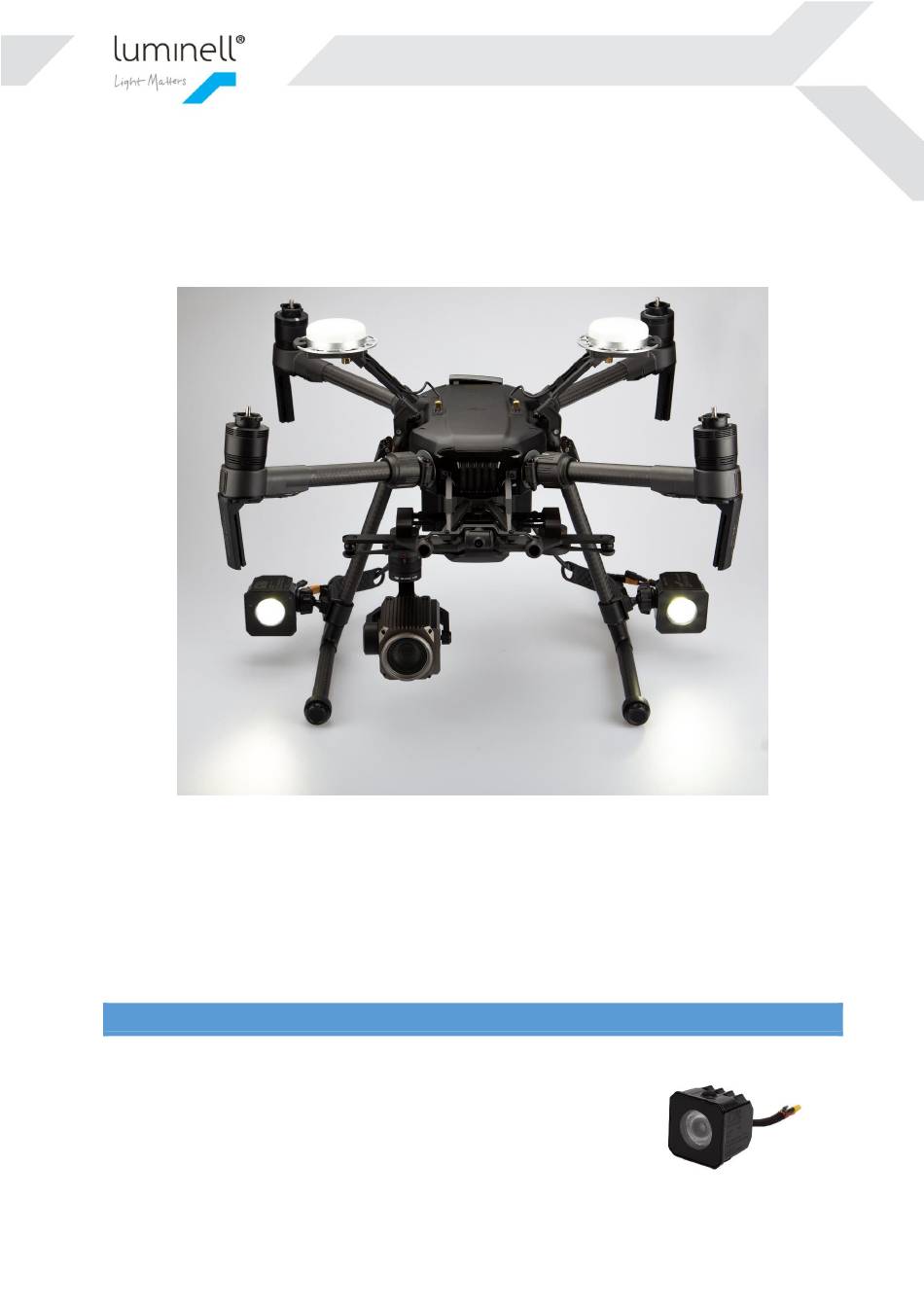

LUMINELL DL Series User Manual

HOW TO USE PWM ON DJI M210 TO
Thank you very much for choosing the DL Series drone lights, and congratulations with your new product. We hope
that you will enjoy it and that it will serve you in whatever you use it for. Please feel free to contact us for any
types of feedback.

GENERAL INFORMATION

The DL Series is created to push limits and maximize the potential in LED
technology and optical performance. DL A is developed with focus on high light
performance, low weight and smart control functions. This manual shows how to
connect the DJI M210 DL Kit and how to control the DL A using DJI M210 Extended
Power Port and PWM signals.
DJI M210 PWM for DL series Manual v.1.1
Luminell AS Myrabakken Næringssenter Bygg 2, NO-6010 Ålesund - Org.nr 915 014 348 - +47 70 10 10 70
USER MANUAL
CONTROL DL A
Page 1 of 6
