Superfeed SC91T Operational Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATIONAL MANUAL
FOR
CONTROLLER SC91T
www.fujicon.com.sg
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SC91T and is the answer not in the manual?

Questions and answers

Related Manuals for Superfeed SC91T

Summary of Contents for Superfeed SC91T

  • Page 1 OPERATIONAL MANUAL CONTROLLER SC91T www.fujicon.com.sg...

  • Page 2: Table Of Contents

    Contents Page 1. Introduction 2. Precaution 3. Specifications 4. Features 5. Input/Output circuit 6. Control Panel and function 7. Preparation 8. Operation 9. Controller layout www.fujicon.com.sg...

  • Page 3: Introduction

    1. Introduction Thank you for your purchase purchasing Superfeed products. For correct operation of the controller, read the operational manual carefully before use, and ensure execution of safe work through correct operation. You are requested to keep the operation manual carefully after read.

  • Page 4: Precaution

    2. Precautions Note to Users Part feeder is a heavy weight machine, so that movement, setting up and installation, must be done by equipment in order to avoid injury. Control system consists of different type of controllers and devices. Adjustment and maintenance must be preceded in accordance to the manual of each controller.

  • Page 5: Specifications

    3. Specifications 3-1. Model SC91T Controller Specification Power Input Voltage 115Vac or 230Vac Source Output Voltage 100Vac or 200Vac Control Sensor Input 12V NPN or 12V PNP Internal Switch 1 Selects Input Voltage (115Vac or 230Vac) Mode Switch 2 Selects Sensor (NPN or PNP)

  • Page 6: Features

    4. Features 4-1. Run and Stop Control. It is control by the ON/OFF switch and/or external sensor. 4-2. Selectable Input Voltage (SW1) Select AC230V/115V using SW1. 4-3. Selectable NPN/PNP Sensor Input (SW2) Select either NPN or PNP sensor using SW2. 4-4.

  • Page 7: Input/Output Circuit

    5. Input/Output 5-1. Connection Connect terminal with: • 0V • 12V • SIG (Connection in next page (A)) Connect terminal with: • Live input (Brown) FUSE Holder output (2.5A, 250V) • Neutral input (Blue) (Insert fuse here) output • Ground input (Green/Yellow)and output •...
  • Page 8 5-2. Terminal Connection 5-2-1. Sensor terminal (A) 5-2-2. Terminal (B) www.fujicon.com.sg...
  • Page 9 5-3. Picture Illustration Live wire (Brown) NC/NO jumper (SW3)(Do not Neutral wire remove) (Blue) Earth wire (Green/Yellow) To feeder NPN/PNP jumper (SW2)(Do not 115V / 230V remove) selection (SW1) Sensor wiring terminal (J2) Feeder 0V-Blue monitoring 12V-Brown output IN-Black J2 (0V) J2 (12V) J2 (IN) Without...

  • Page 10: Control Panel And Function

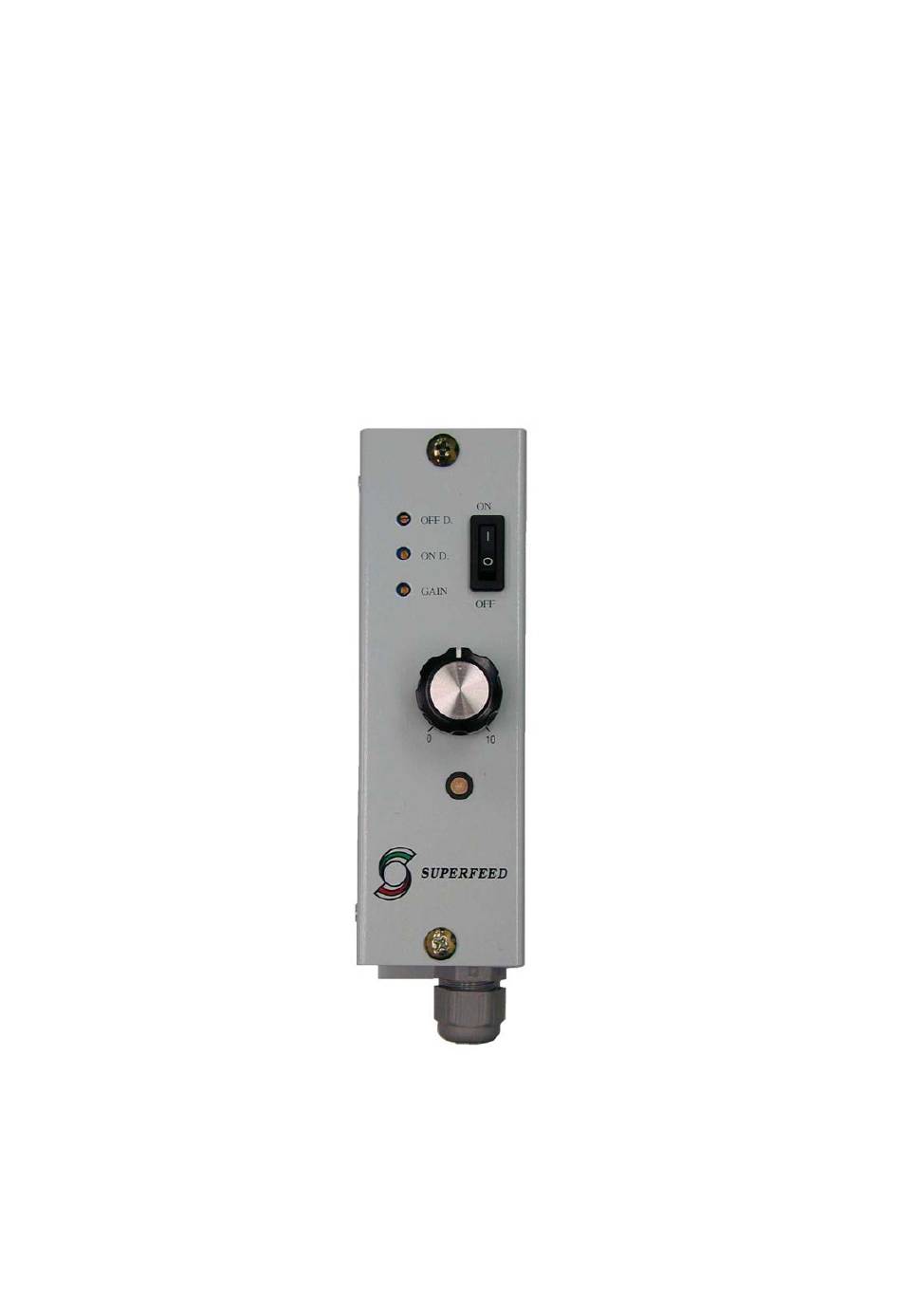

    6. Control Panel and Function 6-1. Front Panel OFF D. (Set the appropriate delay OFF timing) ON D. (Set the ON/OFF Switch appropriate delay (Switching power ON timing) on and off) GAIN (To control the output voltage range) Output Voltage Control (VR4, to control output voltage from 0-10)

  • Page 11: Operation

    6-2. Mode Selection Switch 3 (Select NO or NC operation) Switch 4 (Select 3kHz or 6kHz Switch 2 (Select NPN or frequency selection) PNP sensor selection) Switch 1 (Select input voltage 230Vac or 115Vac) www.fujicon.com.sg...

  • Page 12: Preparation

    7. Preparation 7-1. Turn OFF all the power. 7-2. Dismount the front panel by unscrewing the mounting/dismounting screw in the anti-clockwise direction. 7-3. Connect sensor to 12V, SIG and 0V terminal. Commonly used colour code of wires are 0V=Blue, 12V=Brown and SIG=Black.
  • Page 13 8. Operation 8-1. ON/OFF Control Switch ON to power the controller. 8-2. Adjust VR1 (OFF D.) for Correct Delay Off Timing. The off delay knob in the front panel is use to control the delay off timing when the sensor detects. 8-3.
