- Page 1 OPERATIONAL MANUAL CONTROLLER SC41 www.fujicon.com.sg...
-
Page 2: Table Of Contents
Contents Page 1. Introduction 2. Precaution 3. Specifications 4. Features 5. Input/Output 6. Control Panel and function 7. Preparation 8. Operation www.fujicon.com.sg... -
Page 3: Introduction
1. Introduction Thank you for your purchase purchasing Superfeed products. For correct operation of the controller, read the operational manual carefully before use, and ensure execution of safe work through correct operation. You are requested to keep the operation manual carefully after read. -
Page 4: Precaution
2. Precautions Note to Users Part feeder is a heavy weight machine, so that movement, setting up and installation, must be done by equipment in order to avoid injury. Control system consists of different type of controllers and devices. Adjustment and maintenance must be preceded in accordance to the manual of each controller. -
Page 5: Specifications
3. Specifications 2-1. Model SC41 Controller Specification Power Input Voltage 115Vac or 230Vac Source Output Voltage 100Vac or 200Vac Selection Switch 4 Selects Frequency (3kHz or 6kHz) Status Indicator On – Power on External Adjusts GAIN Setting Adjusts Output Voltage Control... -
Page 6: Features
4. Features 4-1. Run and Stop Control. It is control by the input power ON/OFF. 4-2. Variable Input Voltage AC230V/115V. 4-3. Selectable Frequency (SW4) Select either 3 kHz or 6 kHz using SW4. 3 kHz is half-wave frequency while 6 kHz is a full-wave frequency. 4-4. -
Page 7: Input/Output
5. Input/Output 5-1. Connection Connect terminal with: FUSE Holder • Live input (Brown) )(Insert 2.5A, 250V output fuse here) • Neutral input (Blue) output 5-2. Terminal Connection • Ground input (Green/Yellow) output www.fujicon.com.sg... - Page 8 5-2. Picture Illustration Earth wire Neutral wire (Green/Yellow) (Blue) Fuse (2A, 250V) To feeder Live wire (Brown) www.fujicon.com.sg...
-
Page 9: Control Panel And Function

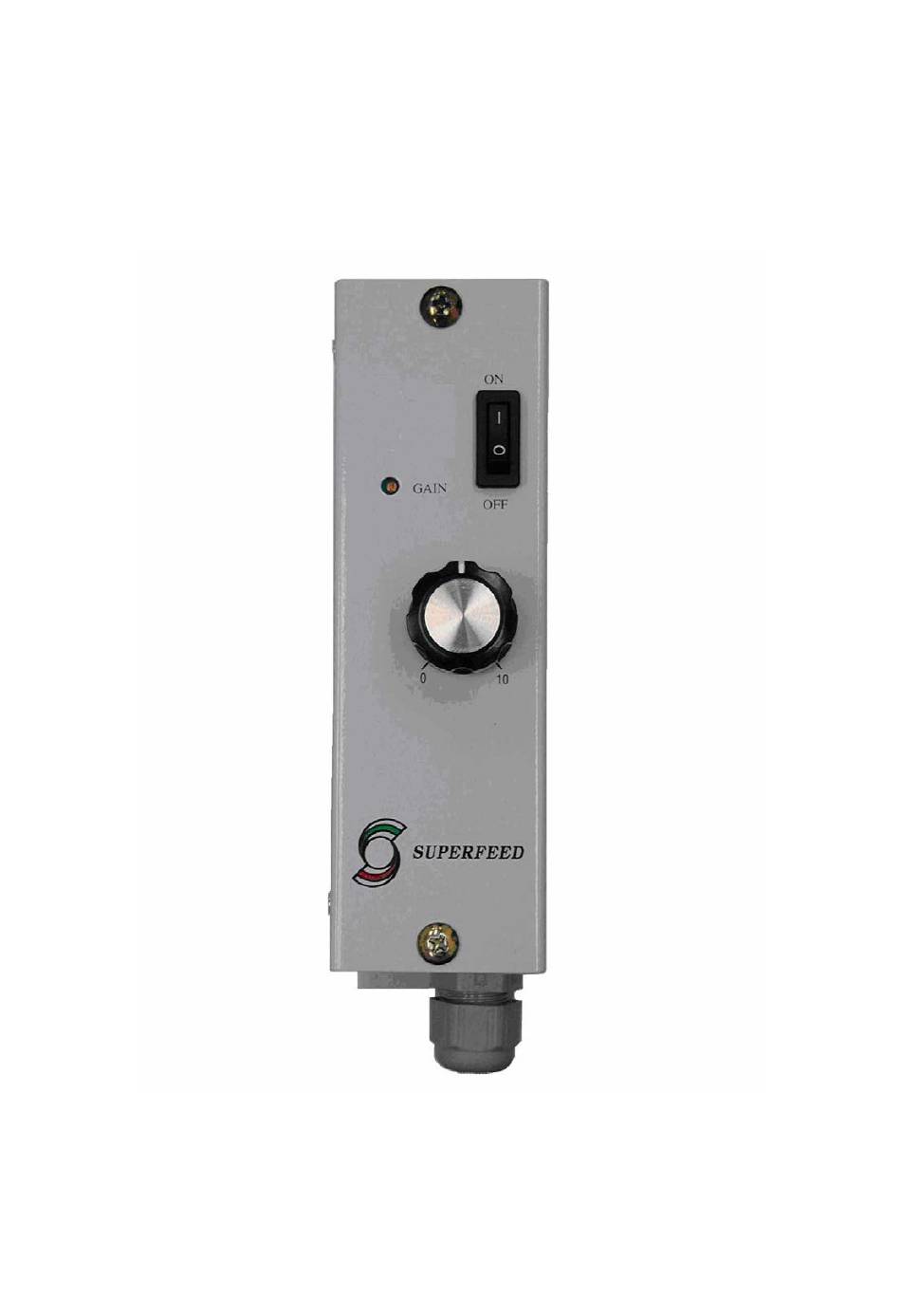

6. Control Panel and Function 6-1. Front Panel ON/OFF Switch (Switching power on and off) GAIN (To control the output voltage range) Indicator light (Indicate power is on) Output Voltage Control (VR4, to control output voltage correspondently from 0-10) Mounting / dismounting screw (x 2) -
Page 10: Preparation
7. Preparation 7-1. Turn OFF all the power. 7-2. Dismount the front panel by unscrewing the mounting/dismounting screw in the anti-clockwise direction. 7-3. Connect cable of feeder to controller. Connect to output cable of the controller to the feeder input cable. Be particularly aware of live, neutral and earth connection respectively. -
Page 11: Operation
8. Operation 8-1. ON/OFF Control Switch ON to power the controller. 8-2. Adjust VR3 (GAIN) to Control Output Voltage Range. Tune the gain potentiometer in the front panel to control the output voltage range. Adjust VR4 to mid range example ‘5’ turn VR3 to obtain optimum performance.
