- Page 1 AV-OL-310 Solar Low Intensity Obstruction Light FAA - L-810 ICAO - Low Intensity Type A and B (ILAB) INSTALLATION & SERVICE MANUAL V1.0...
- Page 2 Version No. Description Date Reviewed Approved Design AV-OL-310 Manual Launch December 2019 P. Naidu W. Evans M. Sugars...
-
Page 3: Table Of Contents
7.2 Installation .................................... 17 7.2.1 Location ..................................18 7.2.2 Factory Configuration ............................18 7.2.3 Selecting Operation Mode and Preset Configuration (FAA or ICAO) ........18 7.2.4 Installation Recommendation ........................18 Maintenance and Servicing ....................19 Troubleshooting ........................22 Latest products and information available at www.avlite.com... -
Page 4: Introduction
LED obstruction products in the world. Avlite Systems draws on more than 25 years experience in the design and manufacture of navigation aids, and particular care has been taken to ensure your product gives years of trouble free service. -
Page 5: Technology
LED Technology All Avlite lights use the latest advancements in LED (Light Emitting Diode) technology as a light source. The major advantage of LED’s over traditional light sources is well established in that they typically have an operational life in excess of 100,000 hours, resulting in substantial savings to maintenance and servicing costs. -
Page 6: Av-Ol-310 Models L-810 And Ilab

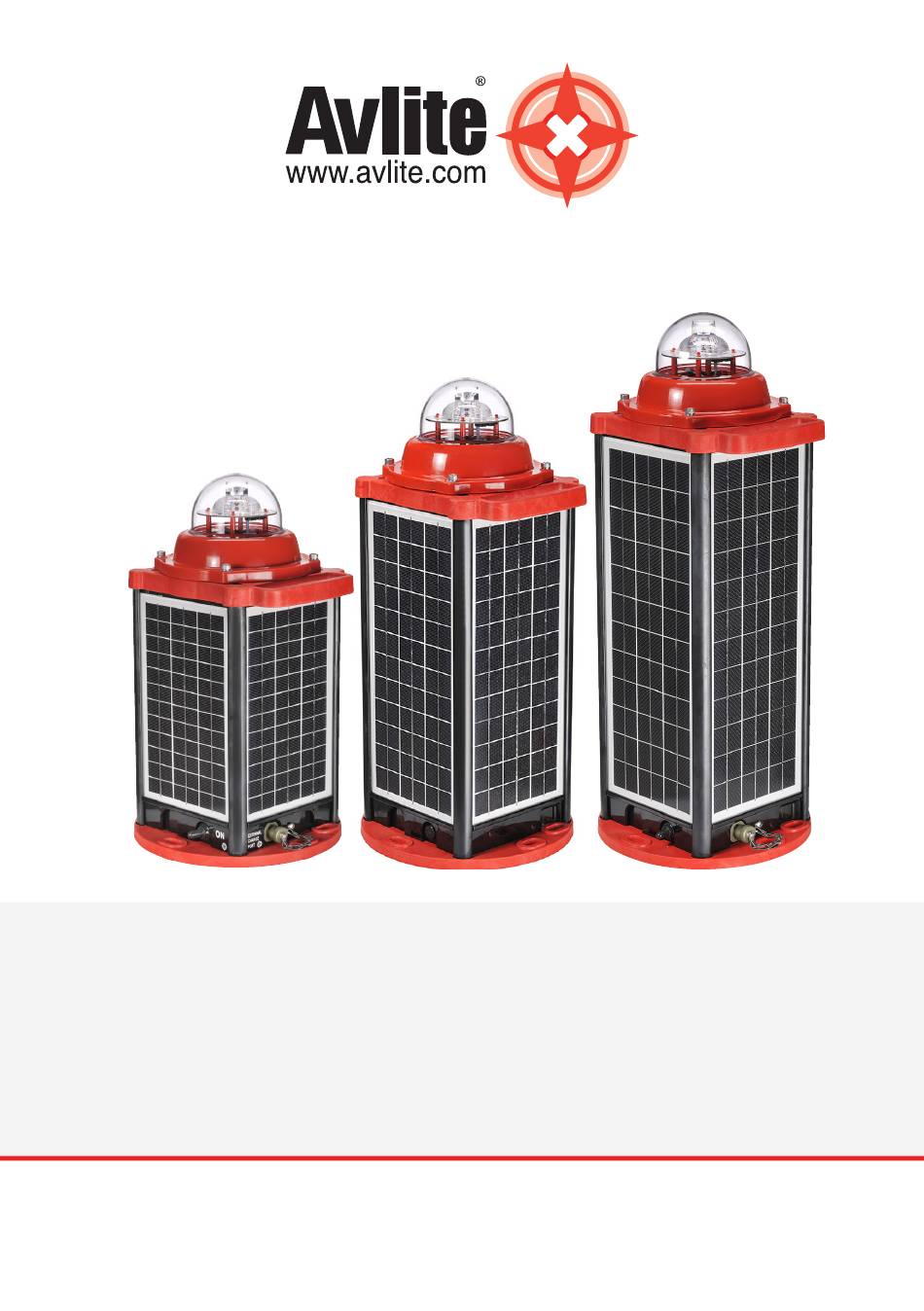

3.0 AV-OL-310 Models L-810 and ILAB Avlite’s self-contained solar light fixture is a low intensity LED obstruction light designed to comply with FAA L-810 or ICAO LIOL Type A and B requirements. The model can be used for marking obstacles of up to 45 meters above ground level such as telecommunication towers, wind turbines, buildings and other tall structures. - Page 7 11.93 11.93 11.93 9.20 9.20 9.20 AV-OL-310 AV-OL-310 AV-OL-310 Compact Standard Extended Compact Standard Extended Compact Standard Extended Remote Monitoring Remote Monitoring Remote Monitoring Compact Standard Extended 7.87 7.87 7.87 Base Base Base Latest products and information available at www.avlite.com...
-
Page 8: Available Options
• Remote Monitoring and Control Avlite offers remote Star2M monitoring via GSM or SATCOM. Operators can remotely monitor the status of their installation from a compatible device. The system can also be configured to send out SMS text messages or e-mail alerts to designated operators should alarm conditions be triggered, such as low voltage or light failure. -
Page 9: Av-Ol-310 Data Sheet
Product Life Expectancy 12 years plus Environmental Factors Humidity 0 to 100%, MIL-STD-810F Wind Speed Up to 160kph / 100mph Shock MIL-STD-202G, Test Condition G, Method 213B Vibration MIL-STD202G, Test Condition B, Method 204 Latest products and information available at www.avlite.com... - Page 10 DGAC L-810 Low Intensity Obstruction Light (Qualified by Intertek) Waterproof IP68 Intellectual Property Trademarks AVLITE is a registered trademark of Avlite Systems ® Patents Pending Warranty * 3 year warranty Options Available • SATCOM Remote Monitoring • GSM Cell-Phone Monitoring •...
-
Page 11: Safety Information
Do not stare at the LED or shine the LED into your eyes or those of another person. • Dispose of the product according to the local laws and regulations for your region, for example, at a recycling centre that accepts electronic devices. Latest products and information available at www.avlite.com... -
Page 12: Operation And Setup
6.0 Operation and Setup Avlite’s AV-OL-310 is a robust, completely self-contained solar powered LED light. The solar module of the light converts sunlight to an electrical current that is used to charge the battery during daylight hours. The battery provides power to operate the light at night. For optimum solar charge performance it is recommended that the unit is orientated with the solar panels facing East-West. - Page 13 AV-OL-310 Lens Assembly Battery 12V Battery Clamp Washer M4 M2 Cap Screw O-Ring, ID 145 x 4.0 Socket Head Screw M4 x 16 Interfacing Cable ON/OFF Switch Charge Port Maximum Power Point Tracker (MPPT) Latest products and information available at www.avlite.com...
- Page 14 Lantern Status Two status LED’s on the main printed circuit board provide the operator with an indication of the lantern status. These are positioned near the Rotary Switches and can be viewed at the base of the lens. There is one red and one yellow status LED. The red status LED is used to indicate the health of the lantern’s power system.
-
Page 15: Gps Syncronisation
Installation & Service Manual 6.1.1 GPS Synchronisation Avlite has utilised the latest advancements in GPS technology to develop an internal synchronisation system that is incorporated into the lights. Using overhead satellites, multiple obstruction lights set to the same flash pattern will flash in unison. No additional... -
Page 16: Operation Mode And Preset Configurations
6.1.2 Operation Mode and Preset Configurations The AV-OL-310 comes pre-set to the correct intensity for either an FAA L-810 or ICAO Type A and B steady burning, red obstruction light in Dusk-till-Dawn mode. Please note that the ICAO compliant fixture comes preset to the Type A configuration. If the customer should need to change the operation mode or preset configuration settings, they can do this by changing the INTENSITY DIP switch. -
Page 17: Unpacking, Installation And Setup
LED lights contain glass components. Do Not Drop. Always follow the instructions outlined in the product manual when cleaning the equipment. Improper cleaning methods and use of unauthorized cleaning agents can damage equipment. Latest products and information available at www.avlite.com... -
Page 18: Location
Place the top lens assembly back onto the light body and replace the 4 x socket head screws. Avlite recommends that the Light Head be tightened to the Solar Chassis Base using the general purpose ‘Grip Tool’, similar in shape to a screwdriver, however with the appropriate Hex Key Head fitted. -
Page 19: Maintenance And Servicing
Turn the ON/OFF switch to the ON position and place unit in the sun for 2-4 days. The AV-OL-310 is fitted with a 12 volt charge port that can be used to charge the battery and test the battery voltage. Latest products and information available at www.avlite.com... - Page 20 Charging and Discharging • Always ensure batteries are fully charged when installing new lights. The light will be dispatched from the Avlite factory fully charged. However if time has elapsed between dispatch and installation, battery voltage must be checked. • Never short-circuit or reverse polarity of a battery, damage to the battery and device may occur, and there is a risk of fire.
- Page 21 Avlite representative. Remove all tools, nuts and bolts from the installation area. Battery Voltage States of Charge Avlite has provided the following guides for battery states of charge: Battery Voltage: 12 Volt Sealed Lead Acid State of Charge Voltage 100% 12.70+...
-
Page 22: Troubleshooting
• Expose light to direct sunlight and monitor operation the entire night. for several days. Avlite products typically require 2.5 hours of direct sunlight per day to retain full autonomy. From a discharged state, the light may require several days of operational conditions to ‘cycle’ up to full autonomy. - Page 23 AV-OL-310 - Solar Low Intensity Obstruction Light Installation & Service Manual Notes Latest products and information available at www.avlite.com...
