Summary of Contents for Avlite AV-SIGN-20

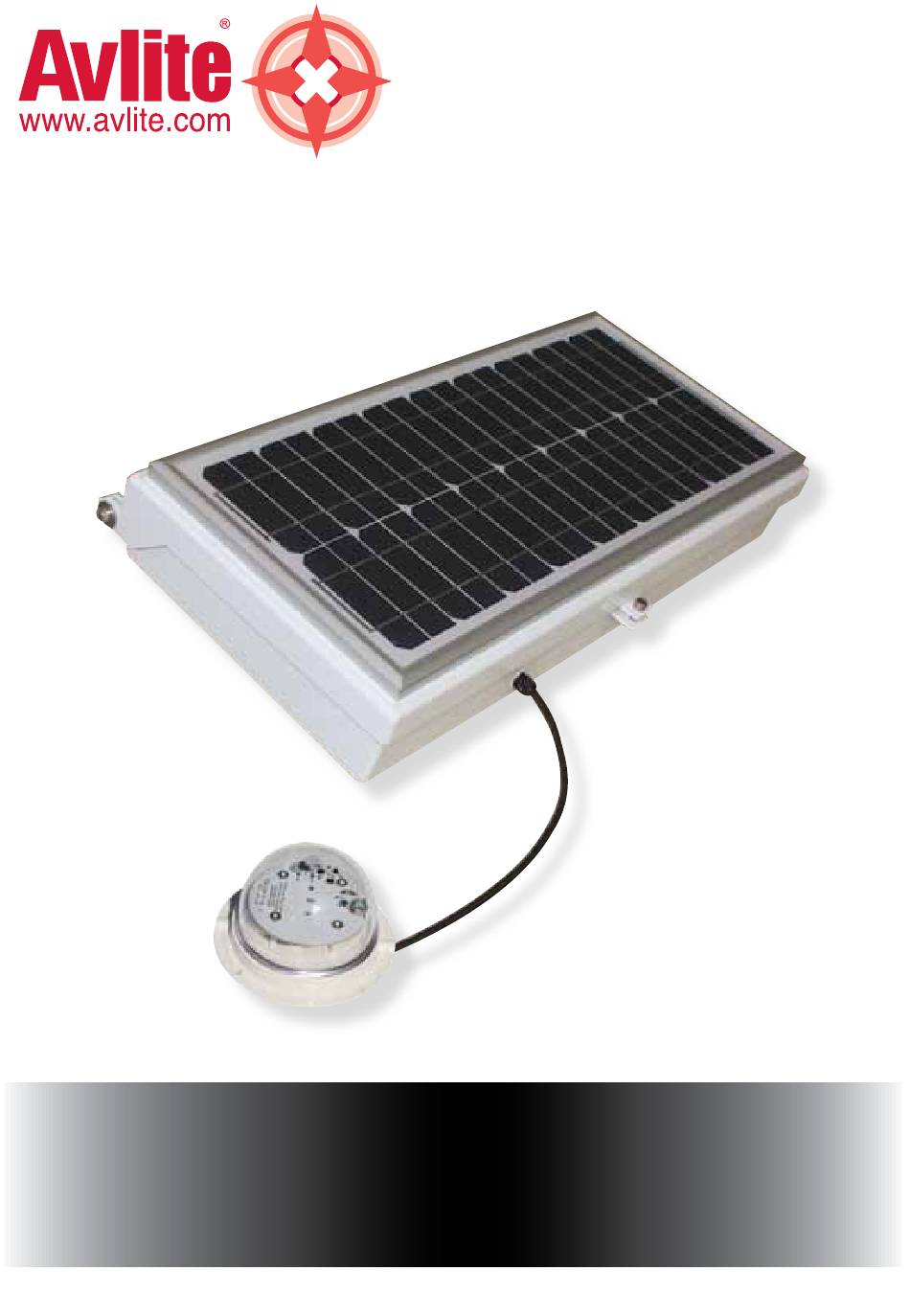

- Page 1 AV-SIGN-20 Solar Sign Light Installation & Service Manual Version 2.0...
- Page 2 90mm\~post AV-SIGN-20 Solar Sign Light table 20watt multicrystalline solar module Lockable heavy-duty powder coated aluminium assembly Hinged assembly for easy access to battery & driving circuitry Domed luminaire with 3watt surface-mounted ultra-high intensity LED for optimal area illumination (>120 degrees) 448.5...
-
Page 3: Table Of Contents
Trouble Shooting ................Page 12 Avlite Light Warranty .................Page 14 Version No. Description Date Approved Manual Launch February 2010 A. Dixon Graphic Update August 2010 K. Paton Spec table update January 2013 J. Dore Latest products and information available at www.avlite.com... -
Page 4: Introduction
Precision Construction Commitment to investing in the design and construction of injection-moulded parts including optic lenses, light bases and a range of other components ensures that all Avlite products are of a consistent and superior quality. Optical Performance Avlite manufactures a range of aviation LED lenses moulded from multi-cavity dies. -
Page 5: Av-Sign-20 Model
AV-SIGN-20 Model Avlite Systems’ Solar Sign Light is a remote solar powered sign light specifically designed for airfield signage illumination. The unit can be fitted with either 1 or 2 domed LED light fixtures, each featuring a 3 watt surface-mounted ultra-high intensity LED for maximum illumination with an even 120 degree light spread. - Page 6 AV-SIGN-20 Solar Sign Light Typical installation of AV-SIGN-20-FM Sign Luminaire with adjustable vertical positioning Battery Regulator Optional power connection to second luminaire Latest products and information available at www.avlite.com...
-
Page 7: Installation
The completed AV-SIGN-20-FM assembly can be mounted on stakes in firm soil (not loose sand, screenings or other unbound material). a. Lay the AV-SIGN-20-FM on its side where it is to be located and mark the position for each frangible stake. -
Page 8: Activation
The completed AV-SIGN-20-PM assembly can be mounted onto a post. Two people may be required to install this AV-SIGN-20-PM to a post, depending on the height it is mounted. a. The AV-SIGN-20-PM is designed to be fitted to a 90mm OD pipe, but can be fitted to any post from 3”OD to 4”OD. -
Page 9: Regulator Connection & Operation
To confirm correct selection of the desired control option, press the TEST button located below the rotary switches. LIGHTING CONTROL LOW VOLTAGE CHARGING DISCONNECT TEMP SENSE SOLAR BATTERY LIGHT SEALED FLOODED SELECT TEST Regulator Diagram Latest products and information available at www.avlite.com... - Page 10 When the regulator is properly connected to the battery, the red LED will flash 3 times. • Confirm lighting control selection When the TEST button is pressed, the red LED will confirm the lighting control option selected by the rotary switch. Latest products and information available at www.avlite.com...
-
Page 11: Maintenance And Servicing
Replacing the Battery The AV-SIGN-20 battery is secured inside the power box under the solar panel. Avlite uses a standard 18Ah 12V Sealed Lead Acid battery that is easily replaced at the end of its life. -
Page 12: Trouble Shooting
• Ensure the battery is above 12volts. entire night. • Reducing the light output intensity will reduce current draw on the battery. • Ensure solar module is clean and not covered by shading during the day. Latest products and information available at www.avlite.com... - Page 13 AV-SIGN-20 Solar Sign Light Notes Latest products and information available at www.avlite.com...
-
Page 14: Avlite Light Warranty
Avlite or authorised Avlite repair personnel. - Page 15 5. No modifications to the original specifications determined by Avlite shall be made without written approval of Avlite Systems. 6. Avlite lights can be fitted with 3rd party power supplies and accessories but are covered by the 3rd party warranty terms and conditions.
-
Page 16: Latest Products And Information Available At Www.avlite.com
• Barricade, hazard & perimeter lighting • Obstruction Lighting Area & Sign Lighting For a complete list of product compliances including ICAO & FAA, please contact Avlite today Head Office Avlite Systems Tel: +61 (0)3 5977 6128 Fax: +61 (0)3 5977 6124...
