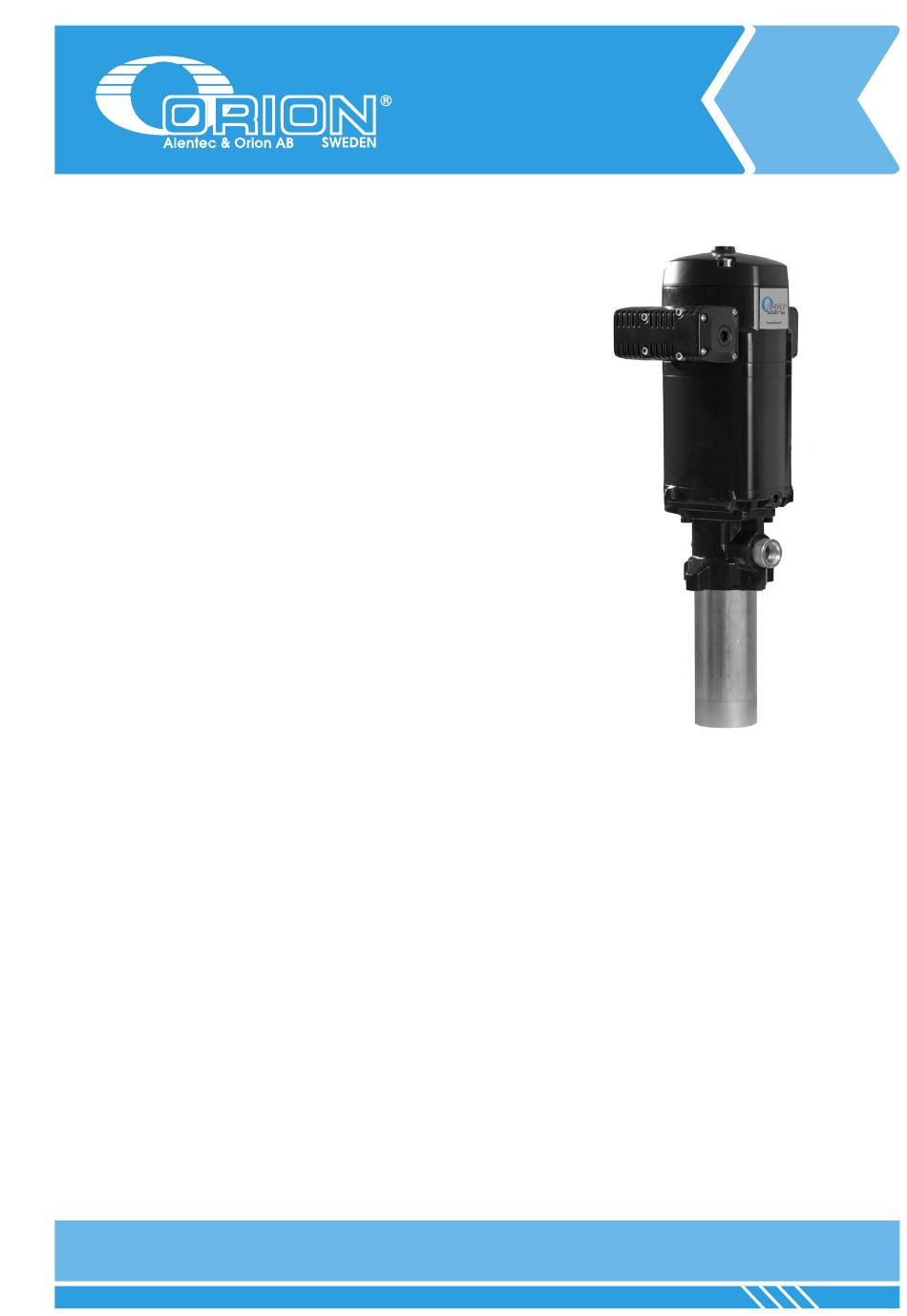

USER MANUAL / BRUKSANVISNING
AIR OPERATED
OIL PUMP 3:1, 6:1 & 10:1
TRYCKLUFTSDRIVEN
OLJEPUMP 3:1, 6:1 & 10:1
Part No. / Art. Nr. / Réf.:
22440, 22441, 22442, 22443
Alentec & Orion AB Grustagsvägen 4, SE-13840, Älta, SWEDEN · info@alentec.se · www.alentec.com
105043C
1
Advertisement
Related Manuals for Alentec & Orion 22440
Summary of Contents for Alentec & Orion 22440
- Page 1 USER MANUAL / BRUKSANVISNING AIR OPERATED OIL PUMP 3:1, 6:1 & 10:1 TRYCKLUFTSDRIVEN OLJEPUMP 3:1, 6:1 & 10:1 Part No. / Art. Nr. / Réf.: 22440, 22441, 22442, 22443 Alentec & Orion AB Grustagsvägen 4, SE-13840, Älta, SWEDEN · info@alentec.se · www.alentec.com 105043C...
-
Page 2: Technical Data / Tekniska Data
TECHNICAL DATA / TEKNISKA DATA 22440 22441 22442 22443 TECHNICAL DATA Pressure ratio 10:1 Drum size Stub Stub 1/1 drum Stub Maximum air pressure 12 bar (180 psi) Minimum air pressure 2 bar (29 psi) Maximum delivery 120 l/min @ 7 bar (32... - Page 3 22442 22443 (included / ingår) 2125753 (included / ingår) 2026366 (included / ingår) Ø 54 mm MEASUREMENTS / MÅTT 22440, 22441, 22443 (MM) 1/2" BSP (F/Inv.) 3/4" BSP (F/Inv.) 1 1/2" BSP (F/Inv.) 1/4" BSP (F/Inv.) (plugged / pluggad) Alentec & Orion AB Grustagsvägen 4, SE-13840, Älta, SWEDEN · info@alentec.se · www.alentec.com...
-
Page 4: Installation
INSTALLATION / INSTALLATION GENERAL ALLMÄNT This high capacity demand pump is compatible with mineral and synthetic Tryckluftsdriven kolvpump, denna högkapacitetspump är kompatibel med oils and suitable for large installations with long length piping supplying mineral- och syntetbaserade oljor och är lämplig för stora installationer med several fluid outlets simultaneously. - Page 5 GENERAL / ALLMÄNT / GÉNÉRALITÉS INSTALLATION / INSTALLATION GENERAL ALLMÄNT This pump can be mounted directly on the wall, using the bracket 28670. Pumpen kan monteras på vägg med väggfäste 28670. Montera fästet på Firmly fix the bracket to the wall. Put the pump on it and fix with included väggen och montera pumpen med de medföljande skruvarna (fig 2).
- Page 6 REPAIR AND CLEANING PROCEDURE / REPARATION OCH RENGÖRING 1. MUFFLER 2. LJUDDÄMPARE Unscrew bolts (27). Skruva bort skruvarna (27). Remove exhaust assembly Ta bort komplett ljuddämpare (25). (25) Unscrew the bolts (24) and Skruva bort skruvarna (24) och remove the cap (29). ta bort locket (29) Remove the felt (30).
- Page 7 REPAIR AND CLEANING PROCEDURE / REPARATION OCH RENGÖRING 3. AIR MOTOR SEALS 3. TÄTNINGAR LUFTMOTOR Unscrew the bolts (2) and remove the cap Skruva bort skruvarna (2) och ta bort locket (3). (3). Unscrew the sensor sleeve (4). Skruva bort sensorhylsan (4). With a manual clamp on the nut (5), pull the Använd en polygrip för att hålla fast rod (40) outwards until its central recess...
- Page 8 Unscrew bolts (60), remove the outlet body (59) and replace the seals (58, 64) and guide ring (57). Reassembly in reverse order, applying thread locker in all joints. All these seals are included in the available kit 22440: 2420001 22441: 2420002 22442: 2420003 22443: 2420003 4.
- Page 9 SPARE PART KITS / RESERVDELSSATSER Alentec & Orion AB Grustagsvägen 4, SE-13840, Älta, SWEDEN · info@alentec.se · www.alentec.com...
- Page 10 SPARE PART KITS / RESERVDELSSATSER FOR PUMP FOR PUMP FOR PUMP QUANTITY CONSIST OF BESTÅR AV POS. 22440 22441 22442, 22443 / ANTAL Lower seals Nedre tätningar Slide ring Glidring 242 00 01 242 00 02 242 00 03 Pneumatic V-ring Tätning luftmotor...
- Page 11 TROUBLESHOOTING / FELSÖKNING SYMPTOM POSSIBLE FAULT SOLUTION No or low air pressure. Check the air line valve, regulator and quick coupler. The pump is not working or there is no fluid delivery. Some outlet line component is clogged or closed. Clean or open the outlet circuit.
- Page 12 EC CONFORMITY DECLARATION / KONFORMITETSDEKLARATION Alentec&Orion AB, Grustagsvägen 4, SE-13840, Älta, Sweden, declares by the present certificate that the mentioned machinery is in conformity with the following standards or other normative documents (TÜV S9211282), (DIN 24558 / 10.91), (DIN EN 292 / 2/11.91) and has been declared in conformity with the EC Directive (2006/42/EEC). Alentec&Orion AB, Grustagsvägen 4, SE-13840, Älta, Sverige, deklarerar genom detta certifikat att de omnämnda utrustningarna är i överensstämmelse med följande standarder eller normerande dokument (TÜV S9211282), (DIN 24558 / 10.91), (DIN EN 292 / 2/11.91) och har blivit deklarerade i enlighet med EC Direktiv (2006/42/EEC).
